4x - 16x
50mm / 30.6' (9.3m) @ 4x at 100 yds.(100m), 7.5' (2.3m) @ 16x at 100 yds.(100m)
1"
2.45"
1.75"
Fully Multi-Coated
Illuminated Mil Dot
Second
Eleven (11) brightness intensity settings for the illuminated reticle
Not Specified by Manufacturer
Matte Black
1/8" Windage & Elevation
80" @ 100 Yards Windage / 90" @ 100 Yards Elevation
Not Specified by Manufacturer
3.25"
Adjustable Objective
Not Specified by Manufacturer
CR-2032
Depends On Brand & Usage
Aluminum Alloy
Yes
Yes
14.5", (368.3mm)
5"
20.9 oz., 592.5g
Reticle Image in the Second Focal Plane
All-weather, high-torque power change ring.
Target Style Turrets
11 Brightness Intensity Levels.
857727001120

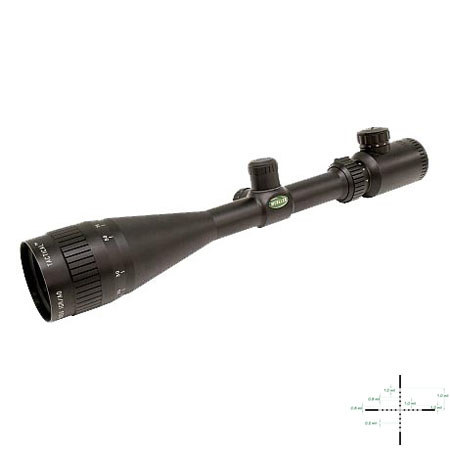

The mil-dot reticle in Mueller's new Tactical Series Riflescope provides an accurate and versatile system for rangefinding and calculating long range bullet trajectory with true mil-dot calculations based of the scope being set on 8x. The mil-dot reticle offers multiple aimpoints that can also be used for bullet drop or windage compensation. Mueller even utilized a glass-etched reticle, which allows the shooter to illuminate the entire center portion of the reticle for accurate shot placement, during low light conditions. All Mueller Tactical scopes are Nitrogen Filled and are warterproof, fogproof, and shockproof.
There are two basic reasons that people purchase optics with a mil-dot reticle. The first is to estimate range, and the second is the ability to accurately compensate for wind or bullet drop. This reticle is extremely versatile, and when properly used will allow the shooter to accurately engage and hit targets at ranges previously thought impossible.
Dots are spaced in one mil (milliradian) increments on the crosshair. One usefulway to use this reticle is by creating a chart that is based on the size of the object being targeted. By looking through the scope you can bracket the object between dots, and refer to the chart for an estimated distance to target.
During normal daylight conditions the reticle has a standard black Mil Dot reticle. For low light conditions the center portion of the reticle can be illuminated Red and fine tuned with 11 brightness intensity levels.
