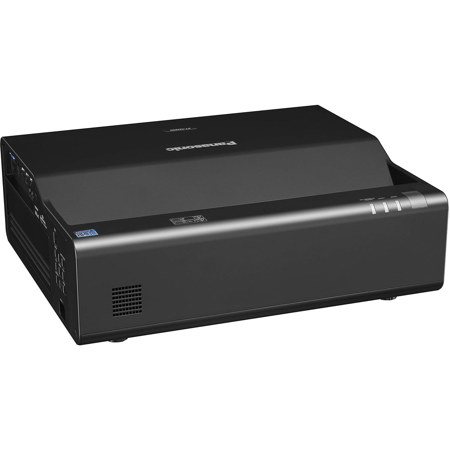

Panasonic CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector Black

SKU: PCCMZ50BU MFR: PT-CMZ50BU
Earn VIP Reward Points

Key Features

  • Quiet operation at 25 dB ensures minimal distractions in meetings and classrooms
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$249.99

3 Year

$399.99

4 Year

$499.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector Specifications

  • Available Color

    Black, White

  • Projector Type

    LCD projector

  • LCD panel

    Size: 0.64" (16.3mm) diagonal (16:10 aspect ratio)
    Pixels: 2,304,000 (1920 x 1200) pixels

  • Light source

    Laser diodes

  • Light Output

    5,200 lm

  • Time until light output declines to 50 %

    Normal/Quiet: 20,000 hours
    Eco: 24,000 hours

  • Resolution

    WUXGA (1920 x 1200 pixels)

  • Contrast Ratio

    3,000,000:1 (Full On/Full O)

  • Screen Size (Diagonal)

    80-120" (2.03-3.05m)
    Aspect ratio: 16:10

  • Center-to-corner zone ratio

    85%

  • Lens

    Fixed zoom, powered focus lens, F = 1.7, f = 2.81mm, throw ratio: 0.235:1 (Projection distance: 1/3" (1cm) for 80" image)

  • Digital Zoom Extender

    Throw ratio 0.235-0.288:1 (Corresponding value)

  • Keystone correction range

    Vertical: +/-3 Degree
    Horizontal: +/-3 Degree

  • Terminals

    HDMI IN 1/IN 2 HDMI: 2x 19-pin (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported
    HDMI OUT HDMI: 1x 19-pin (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output)
    COMPUTER IN: 1x D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
    AUDIO IN: 1x M3 stereo mini-jack
    AUDIO OUT: 1x M3 stereo mini-jack

  • Terminals (Contd.)

    SERIAL IN: 1x D-sub 9-pin (female) for computer control (RS-232C compliant)
    LAN/DIGITAL LINK: 1x RJ-45 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input)

  • LAN

    1x RJ-45 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2]

  • USB (Viewer/Wireless/DC Out)

    1x USB connector (Type A) for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A)

  • Protocol versions

    IPv4, IPv6

  • Power supply

    AC 100 V-240 V, 50/60Hz

  • Power consumption

    Maximum power consumption: 325W (3.4-1.4 A) (330 VA) (Power consumption is 310W at AC 200-240 V)

    On-mode power consumption (Light Power):
    Normal: 290W (AC 100-120 V), 280W (AC 200-240 V)
    Eco: 215W (AC 100-120 V), 205W (AC 200-240 V)
    Quiet: 210W (AC 100-120 V), 200W (AC 200-240 V)

  • Built-in Speaker

    10W monaural

  • Filter

    Included (Estimated maintenance time: approx. 20,000 hours)

  • Operation noise

    Normal/Eco: 35 dB
    Quiet: 26 dB

  • Operating environment

    Operating temperature: 32-113 Degree F (0-45 Degree C)
    Operating humidity: 20-80% (no condensation)

  • Applicable software

    Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software, Presenter Light Software for Windows, Wireless Projector App for iOS/Android

  • Control function via LAN

    PJLink [Class 2], Crestron Connected, AMX Device Discovery

  • Dimensions (W x H x D)

    Excluding feet and protrusions: 19.4 x 6.2 x 16.5" (495 x 160 x 421mm)
    With feet at shortest position: 19.4 x 6.9 x 16.5 (495 x 176 x 421mm)

  • Weight

    With supplied lens: 20.9 lbs (9.5kg) (Approx.)

  • UPC Code

    885170408142

About Panasonic CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector

Make the most of limited space with the Panasonic PT-CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector, designed to project large images even in compact environments. This advanced projector can deliver an impressive 80-inch image from just about 1 cm (1/3 inch) away, minimizing shadows and maximizing display area, perfect for small rooms or areas with restricted installation space. It supports widescreen video content with resolutions of 2560 x 1080 (21:9) and 3240 x 1080 (27:9), and allows for seamless integration with a second projector via its HDMI OUT terminal.

Installation and setup are simplified with the PT-CMZ50, even in rooms with low ceilings. The partially preassembled wall-mount option saves time and resources, while powered center and periphery focus, along with Digital Zoom Extender and Digital Image Shift, enable precise adjustments via remote control. The projector's sleek design and ultra-quiet operation at just 25 dB ensure it blends seamlessly into any environment, from offices to classrooms.

Experience stress-free daily operation with the PT-CMZ50, which powers on in about one second and supports CEC command-compatible HDMI for control with a single remote. It is compatible with wireless apps and the Wireless Presentation System PressIT, and requires no maintenance for its light source and filter for up to 20,000 hours, making it an energy-efficient choice.

The PT-CMZ50 is ideal for projecting large images ranging from 80 to 120 inches, making it suitable for various settings, from small huddle rooms to hybrid classrooms. Its ultra-short-throw design reduces shadowing and dazzling, enhancing communication. The projector's WUXGA resolution ensures crisp, detailed images, perfect for displaying small text and intricate graphics.

Designed to harmonize with any space, the PT-CMZ50's minimal screen offset and flush wall installation make it a practical choice for rooms with low ceilings. Available in black or white, its unobtrusive design keeps the focus on the presentation. The projector's heat-resistant light source significantly reduces noise, enhancing audibility during meetings and lessons.

The PT-CMZ50 delivers smooth, crisp details with its WUXGA (1920 x 1200) LCD panels, improving text definition and clarity. It effortlessly handles widescreen content, supporting 2560 x 1080 (21:9) and 3240 x 1080 (27:9) input signals. With an HDMI OUT terminal and edge-blending function, it can connect to a second projector for expansive widescreen displays.

High brightness and contrast are key features of the PT-CMZ50, offering up to 5,200 lumens for vivid images even in bright environments. Its dynamic contrast ratio of 3,000,000:1 enhances text legibility and shadow detail. The Detail Clarity Processor 4 further refines image quality by analyzing video frames and enhancing fine details.

Installation is a breeze with powered center and periphery focus, Digital Zoom Extender, and Digital Image Shift functions, all adjustable via remote control. The optional ET-WBC100 wall mount simplifies installation with its lightweight, partially preassembled design and easy adjustment features.

The PT-CMZ50 integrates seamlessly with 4K audio-visual systems, accepting 4K input signals via HDMI and DIGITAL LINK connections. It includes a USB port for powering devices, performing firmware updates, or projecting images from a USB memory device.

Environmentally conscious, the PT-CMZ50 offers improved energy efficiency, with a watts-per-lumen efficiency about 31% better than comparable lamp-based projectors. Its eco-friendly design includes a washable filter and eliminates the need for lamp disposal. With minimal maintenance requirements and instant start-up capabilities, the PT-CMZ50 ensures reliable and efficient operation, making it an excellent choice for any professional setting.

Panasonic CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector Features

  • Built-in 10W speaker, mic input, audio output, and shutter function
  • DICOM Simulation Mode
  • Supports PJLink, Crestron Connected, and AMX DD
  • Control emulation function
  • Custom startup logo and anti-theft functions
  • Free 360 Degree installation
  • ECO Management System
  • Presentation Support System

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Quiet operation at 25 dB ensures minimal distractions in meetings and classrooms

What's in the box:

  • Panasonic CMZ50 WUXGA 3LCD Ultra-Short Throw Wireless Laser Projector
  • Remote Control
  • Panasonic 3 Year Limited Warranty
