PACKAGE INCLUDES:
See Options
Need help? Ask our experts.
Review Summary
2025-06-29T13:23:46
Although it takes a little but of time to learn and get used to the unit, this thing is amazing. Switching cameras is easy, create the scenes are more advanced, mixing the audio and the overlays, plus the chroma key and the addition of other sources to the mix, such a phone call can be overwhelming. But if you check some good video tutorials. You will see all the potential this device have. The lack of 4k is not a dealbraker in my opinion. Full HD is good for me. It works like a charm. Adorama always have the best products at the best prices and the two day delivery is unparalleled. Very happy customer.
Gerson R.
6 simultaneous
4 type-A (HDMI 1.4b)
2 multi-function USB-C for UVC video
2 configurable - preview, program, Multiview
1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60, (HDMI only) 1920x1080i: 25, 29.97, 30
1920x1080p: 24, 25, 30, 50, 60
1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
4:4:4 RGB / 8-bit
4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
4:2:2 YUV, 4:2:0 YUV (NV12)
4:4:4 RGB, 4:4:4 YUV / 8-bit
4:2:2 YUV / 8-bit
On all HDMI and USB inputs
Single TCP, Multicast
Hx2, Hx3
H.264, HEVC/H.265, 4:2:0, 8-bit
AAC-LC, L-PCM Stereo 2.0 at 48kHz
Wired Ethernet
9 simultaneous in Preview and Program
2 (overlays and logo)
2
2 simultaneous
SMPTE wipes, dip and fade
Display complete scenes and overlays simultaneously in preview and program
All scenes
Program and preview, live inputs, scene and media thumbnails, audio mixer and channel status, recording, network and storage status, run time, date and time information
Expandable microSD card storage
MP4
PNG, JPG
WAV
5.3 (for stereo audio input or phone calls)
2 combo jacks (microphone, line or instrument) with Revolution Preamps
2 Series IV wireless receivers
USB 1: 2-in/2-out or multichannel (20-in) output
USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus
USB 2: 2-in/2-out with MFi support
USB 4 & 5: compatible with RODEUSB microphones and RODECaster Pro II and Duo
2 headphone outputs (1/4"), 2 balanced line outputs (1/4", L/R)
20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2, 3 and 4 (each can be split for two mono), Bluetooth, 3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)
APHEX VoxLab Processing: per channel
Advanced APHEX granular processing on each channel: Compressor, Equalizer (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter, Big Bottom
Live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth
On each channel:
Compressor, Equalizer (EQ), De-Esser, Panning, Noise Gate, High-pass Filter, Aural Exciter, Big Bottom
Frequency range: 20Hz - 20kHz
Input gain: up to 76dB
Equivalent Input Noise: -131.5dBV (A-weighted)
Streaming: 48kHz / 32-bit
Recording: 48kHz / 24-bit
Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi
YouTube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom server
Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the-air updates
External USB mass storage device (exFAT format) for recordings
Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
6 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
Stereo mix WAV audio file
9 independent stereo WAV audio files
Scene builder: advanced construction of scenes and remote control of device
Auto-switching: configuration of automatic switching based on audio input
Audio mixer: advanced configuration and control of audio sources, processing and routing
Stream profiles: configuration for streaming settings and profiles
Device configuration: advanced settings and customizations
macOS 11 or later, Windows 10 Version 1803 or later, Windows 11
USB-C PD 60W, 20V 3A
Black
5.2 x 12.0 x 2.4" (132.5 x 305.9 x 61.4mm)
2.77 lbs (1.25kg)
192223292871, 698813014507, 192223227576, 192223075498
Very complete suite for switching and controlling video and audio with pro features
By Gerson R.
Although it takes a little but of time to learn and get used to the unit, this thing is amazing. Switching cameras is easy, create the scenes are more advanced, mixing the audio and the overlays, plus the chroma key and the addition of other sources to the mix, such a phone call can be overwhelming. But if you check some good video tutorials. You will see all the potential this device have. The lack of 4k is not a dealbraker in my opinion. Full HD is good for me. It works like a charm. Ador...
View full Review

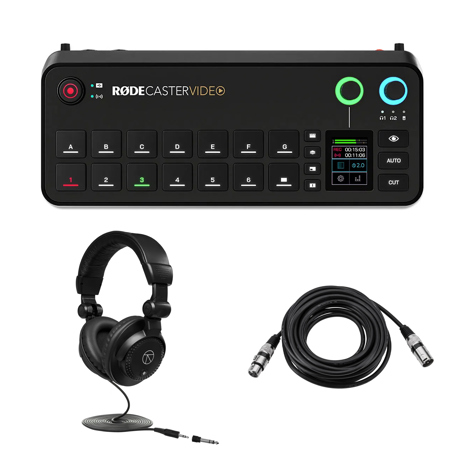

The RODECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.
All-in-One, All at Once
The ultimate all-in-one content creation tool, the RODECaster Video is the first in its class to seamlessly blend comprehensive video and audio production into a single, compact device. Offering unmatched flexibility in switching, mixing, processing, recording and streaming multiple video and audio sources at once, it is the perfect centerpiece for any content creation setup.
For Anyone and Everyone
With its wide array of connectivity options and its completely customizable architecture, the RODECaster Video can be tailored to meet your exact needs, no matter what kind of video production you do.
Video Podcaster
Alongside its advanced video production capabilities, the RODECaster Video contains all the audio power and flexibility that our RODECaster range is renowned for, making it the perfect central hub for video podcast productions. Mix up to nine channels of pristine audio, create custom routings for each of your guests and for your recording, and polish your sound with professional APHEX audio processing.
Live Streamer
With the ability to stream directly to your favorite platform via Wi-Fi, Ethernet or USB, the RODECaster Video is perfect for streamers that want an intuitive, hands-on production console to level up their live stream.
Broadcaster
Whether you're giving a business presentation, streaming a house of worship service or even a cooking show, the RODECaster Video's streamlined approach to video and audio production makes it easier than ever before.
Professional Production Made Simple
It's never been easier to create professional productions with incredible video and audio. The RODECaster Video's intuitive interface and dynamic touchscreen give you hands-on control of every element of your show, from switching video and configuring complex multi-source layouts to mixing and processing your audio.
Features
Input and Scene Buttons
Switch between video sources or fully customized scenes with the touch of a button.
Function Buttons
Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.
Touchscreen and Encoders
Control and configure your production with the intuitive touchscreen and versatile encoder.
Inspect Button
Preview and configure any input or scene on-the-fly with the innovative Inspect button.
USB Video and Audio
Connect up to two compatible webcams or RODE USB microphones via USB 4 and 5 for additional video and audio options.
HDMI Inputs and Outputs
Capture up to four HDMI video sources and monitor your production with preview, Multiview or program feeds.
Headphone and Speaker Outputs
Monitor your audio with speakers or two pairs of headphones, each with custom mixes and levels.
Revolution Preamps
Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps.
Switch it Up
With simultaneous control over six different video feeds, the RODECaster Video allows you to seamlessly switch between cameras, consoles and other visual inputs to fully immerse your audience in your show. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customizable transitions - you can even sequence your show with live previews of each feed before you make the switch.
Set the Scene
The RODECaster Video is the first of its kind to offer an intuitive scene-based switching architecture, making it easier than ever to customize and configure complex video arrangements and switch to them at the press of a button.
Integrated Professional Audio
With the ability to mix, process and route up to nine audio sources at once, the RODECaster Video sets a new standard for power and flexibility in audio production. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX, allowing you to sculpt your dream sound and deliver polished, professional results every time.
Expanded USB Inputs
The RODECaster Video features two flexible USB-C ports for expanding your production with extra video and audio devices. You can connect compatible USB webcams, capture cards and other UVC video devices, as well as RODE USB microphones and even the RODECaster Pro II and RODECaster Duo!
Always Evolving
Now with NDI support, PTZ camera control and advanced auto-switching, the RODECaster Video makes multi-cam podcasting and streaming effortless. NDI integration also extends to the RODE Capture app, instantly turning your iPhone's front and rear cameras into a professional, multi-angle source.
Hands-free Auto-Switching
Don't have a producer? Intelligent auto-switching technology will automatically switch your camera angles depending on who's talking - perfect for video podcasts, panel shows, and other live discussions.
Comprehensive Multiview
The RODECaster Video's Multiview display provides a comprehensive overview of all your production's critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.
Form Follows Function
The RODECaster Video provides immediate access to a wide range of creative tools with its four function buttons, giving you unprecedented hands-on control over advanced video techniques and quick access to your graphics and media.
Media Player: Integrate video files, images and sounds into your production with ease
Graphics Overlay: Access and arrange custom logos, watermarks, lower-thirds and other graphic assets
Multi-source Layouts: Configure multiple video sources into arrangements such as picture-in-picture, split screen and more
Automatic Keying: Apply an automatic chroma key to your input - it's never been easier to set up a green screen
Record On-Board
You can capture your entire video and audio production directly to a connected hard drive or USB storage device, and the option to record each video and audio source independently provides ultimate flexibility in post-production.
Stream to Your Favorite Platform
Stream your show directly to Twitch, YouTube or your favorite streaming platform via Wi-Fi or ethernet and use custom audio routing to send a completely different mix to your audience, your headphones and your recording.
Intuitive Interface
The large high-resolution touchscreen and versatile rotary encoder provide intuitive hands-on control over every aspect of your production, from applying transitions and previewing your inputs to adjusting volume levels and configuring settings.
Wireless Remote Control
For setups where you can't be close to the console, the RODECaster Video boasts complete wireless remote control via the RODECaster app, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.
Enhanced by the RODECaster App
The RODECaster App is the ultimate companion software for the RODECaster Video. Craft the perfect multi-camera layout with the scene builder, take control over all your audio sources at once with the audio mixer and access advanced configuration settings to craft the perfect production.
Note: OS Requirements: macOS 11 or later; Windows 10 Version 1803 or later.
