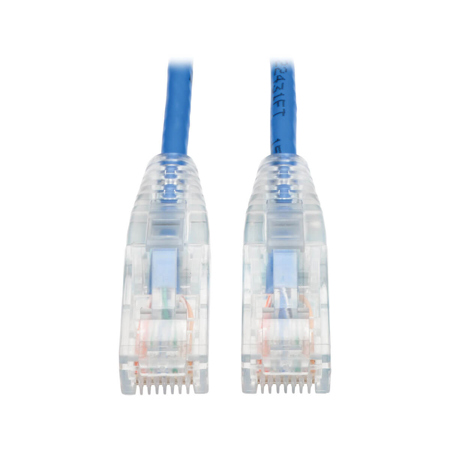

Tripp Lite 1' 28 AWG 550MHz Cat6 Gigabit Snagless Slim UTP Ethernet Cable, Blue

SKU: TLN201S01BL MFR: N201-S01-BL
$2.99
Earn VIP Reward Points

Key Features

  • Experience reliable Gigabit Ethernet performance with this 1' Cat6 cable, perfect for home or office.
  • Enjoy seamless streaming and gaming thanks to the 550MHz bandwidth of this high-performance cable.
  • Connect your PoE devices effortlessly with this versatile cable, supporting both Type 1 and Type 2 PoE+.
  • Its slim, snagless design ensures easy installation and a tidy setup in tight spaces.
  • Benefit from robust connectivity with gold-plated RJ45 connectors for optimal signal integrity.
  • This durable UTP Ethernet cable is built for long-lasting use, offering exceptional value and support.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-11-19T19:00:00

Rated 5 out of 5

Good patch cable

Sturdy cable, easy to use in patch panels

TB

2024-09-15T20:00:00

Rated 5 out of 5

I would buy this product t again

Works perfectly

TB

Tripp Lite Cat6 Slim Ethernet Cable Specifications

General

General

Jump to...
  • Technology

    Cat6

  • Snagless Connector

    Yes

  • Cable Jacket Rating

    CM

  • Cable Shielding

    UTP

  • Number of Conductors

    4 Pair

  • Conductor Gauge

    28 AWG

Connections

Jump to...
  • Side A - Connector 1

    RJ45 (Male)

  • Side B - Connector 1

    RJ45 (Male)

  • Contact Plating

    Gold

  • PoE Type

    Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at)

  • Connector Type

    Snagless

  • Wiring Configuration

    EIA/TIA 568B

Environmental

Jump to...
  • Operating Temperature Range

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Storage Temperature Range

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Operating Humidity Range

    5% to 85% RH, Non-Condensing

  • Storage Humidity Range

    5% to 85% RH, Non-Condensing

Communications

Jump to...
  • Bandwidth per TIA Standard

    250 MHz

  • Maximum Bandwidth as Tested

    550 MHz

  • Network Compatibility

    1 Gbps (Gigabit)

  • IEEE Standards Supported

    802.3ab; 802.3af; 802.3at

Standards & Compliance

Jump to...
  • Certifications

    UL Listed; cUL Listed

  • Compliance

    CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3at PoE+; REACH; UKCA

Physical

Jump to...
  • Color

    Cable Jacket: Blue

  • Material

    Cable Jacket: PVC
    Conductor: Stranded Copper

  • Cable Outer Diameter (OD)

    0.14" (3.8mm)

  • Cable Length

    1' (0.30m)

  • UPC Code

    037332193032

About Tripp Lite Cat6 Slim Ethernet Cable

Cat6 UTP Patch Cable Ideal for Your Gigabit Ethernet Network.
This Cat6 UTP cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this blue cable ensures peak performance throughout your local area network (LAN).

Special Slim Design for Better Airflow and Easier Installation
This Cat6 UTP patch cord is more than 38% smaller in diameter than standard Cat6 cable. This increases airflow in tight spaces, which helps keep your equipment cool and properly functioning. It also makes the cable easier to install around corners and through cable management panels.

Snagless RJ45 Male Connectors Add Extra Protection
The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This Cat6 UTP patch cable features a blue PVC jacket. The color-coding allows easy, fast identification in a crowded rack or workstation and helps prevent the cable from becoming inadvertently disconnected.

Premium Construction for Superior Performance
Manufactured from 28 AWG copper wire, the four-pair stranded cable is rated for speeds up to 1 Gbps. The ends feature 50-micron gold plating to help ensure the most accurate signal transfer possible. Integral strain relief gives the unshielded cable extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

Tripp Lite Cat6 Slim Ethernet Cable Features

  • Over 38% slimmer than standard Cat6 cables
  • Rated for Cat6 Gigabit/1 Gbps communications
  • Snagless RJ45 male connectors
  • Easy to route through cable management panels
  • High-quality 28 AWG stranded copper wire
