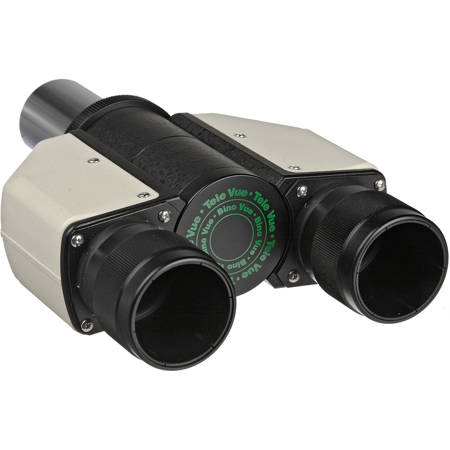

Tele Vue Bino-Vue with 2x Amplifier
SKU: TVBVP2002
This item is no longer available.
Share:
Overview
Compare
Protection
Q&A
About Tele Vue Bino-Vue, 2x Amplifier
FEATURED REVIEWS
Come on strong or stay on the porch with the little dogs!
If you purchase any other bino-viewer, you'll have live with knowing you didn't buy the best! All other models have problems the TV bino-Vue does not. So save your pennies or find a hobby that doesn't involve money...say, dust-collecting, for example!
A limitation in viewing the sky is a lack of binocular viewing. Open both eyes & see the dramatic improvement in resolution, contrast, faint star detection, viewing comfort, & an illusion of depth. Open your eyes & mind to BinoVue.
The advantages of a binocular attachment that adjusts interpupilary distance like an ordinary binocular & sets up as easily as changing an eyepiece. The in-line viewing arrangement allows interocular adjustment without focus shift. It uses the largest prism apertures possible.
BinoVue, engineered to an optical elimination of its 5.1" path length to allow use on any telescope. The special compensator lens system makes BinoVue parfocal when fully inserted to its stop & results in only a 2x increase in magnification. The compensator lens corrects for prism effects that can degrade high power viewing. For short focal length scopes such as Pronto, TeleVue-85 & 101, the 2x amplification results in low powers down in the 30x range. Even larger instruments will find BinoVue extremely versatile. 13.5" f/4.5 Dobsonain, would have a low power limit of 96x with a pair of 32mm Plossls.
SCTs have enough focus travel using BinoVue without the compensator. For any scope that can accept BinoVue's 5.1" of path length, also included an empty tube to install in place of the amplifier assembly.
Each one is collimation & image quality are tested. This time & labor intensive operation is essential for a binocular viewer used at planetary magn ificati ons.
Tele Vue Bino-Vue, 2x Amplifier Features
- The included Bino Vue 2x amplifier now has filter threads built-in, so you can easily use your Tele Vue Mars filters, Type A and Type B, or other 1 ½" filters.
- 27mm aperture prisms to permit full use of maximum field 1½" eyepieces such as 24mm Panoptics
- Multi-coatings and dielectric beamsplitter coatings for highest transmission with neutral coloration.
- Collet-type adjustable eyepiece clamping for non-marring, rock solid security with no chance of high powered collimation loss from screw-type diopter adjustment systems.
- 100% inspection, collimation Q.C. to assure prevention of eyestrain. Factory collimation checking and realignment service available with quick turnaround.
- Lightest weight large prism unit (saves ½lb).
- 2x Amplifier Corrector fully compensates for introduction of spherical, color and astigmatism in prisms, along with path length compensation -- maintains simple drop-in installation just like any 1½" eyepiece, while maintaining optimal optical performance in the finest, fastest instruments such as the Tele Vue-NP101.
