Used Fiilex X314 Gaffer's 3-Light LED Kit

Item Note: 1x P360 Pro Plus Light has a stripped thread on the yoke mount; parts only; item destroyed

SKU: US1359349 MFR: FLXX314
Earn VIP Reward Points

What`s in the box:

  • Fiilex Q1000-DC Light Head
  • 2x P360 Pro Plus Light Heads
  • Size III Barndoor
  • 2x Size II Barndoors
  • 5" Fresnel Zoom Lens
  • 2x Dome Diffuser
  • 2x Fresnel Lens
  • 20' PowerCon Cable
  • 340W AC/DC Power Adapter
  • 2x Clamp Mount
  • 2x 90W AC/DC Power Adapters
  • 2x Light Stands
  • X-Series Travel Case ** Item Note: 1x P360 Pro Plus Light has a stripped thread on the yoke mount; parts only; item destroyed **
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$106.99

3 Year

$166.99

4 Year

$227.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Fiilex X314 Specifications

  • P360 Pro Plus Light: IP Rating

    IP 24 (Rain cover available for increased protection)

  • P360 Pro Plus Light: LED

    Dense Matrix LED

  • P360 Pro Plus Light: Thermal Design

    Advanced Vapor Cooling System

  • P360 Pro Plus Light: CCT Range

    2800-6500K Continuous Tuning

  • P360 Pro Plus Light: Hue Control

    +/-.25 Green

  • P360 Pro Plus Light: CRI

    >95

  • P360 Pro Plus Light: Power Consumption

    90W Max / Comparable in Output to 400W Tungsten

  • P360 Pro Plus Light: Input Voltage

    12-30V DC

  • P360 Pro Plus Light: Input Port

    5.5 x 2.5mm DC Jack

  • P360 Pro Plus Light: DMX

    3 channels : Intensity, CCT, Hue

  • P360 Pro Plus Light: DMX Connection

    Connects with XLR5 or RJ45 via Unit link Adapter (FLXA076, FLXA077, FLXA078)

  • P360 Pro Plus Light: AC Adapter

    100-240V AC, 50/60hz (In) / 24V DC, 90W max. (Out)

  • P360 Pro Plus Light: Temperature Range

    32 to 104 deg. F (0 to 40 deg. C)

  • P360 Pro Plus Light: Mount Style

    Light Stand Mount (attached)
    1/4"-20 Female Port

  • P360 Pro Plus Light: Barndoor Mount Size

    Size II

  • Q1000-DC Light: IP Rating

    IP- 24 (Water-Resistant)

  • Q1000-DC Light: LED

    Dense Matrix LED

  • Q1000-DC Light: Thermal Design

    Advanced Vapor Cooling System

  • Q1000-DC Light: Beam Angle

    63 deg. (Without Accessories)
    32 deg. -57 deg. (With 5" Fresnel Lens)
    12 deg. -26 deg. (With 8" Fresnel Lens)

  • Q1000-DC Light: CCT Range

    2800-6500K Continuous Tuning

  • Q1000-DC Light: Hue Control

    +/-.25 Magenta/Green

  • Q1000-DC Light: CRI

    =93 (3000-5600K)

  • Q1000-DC Light: LED Lifetime

    42,000 hrs - (15 Years of Average Use)

  • Q1000-DC Light: Power Consumption

    340W Max AC / 300W Max DC / Comparable in Output to 1300W Tungsten

  • Q1000-DC Light: Input Voltage

    AC Power: 100-240V AC, 50~60Hz, Max 340W
    DC Power: 48-54V DC, Max 300W

  • Q1000-DC Light: Input Port

    Detachable Power Con Cable

  • Q1000-DC Light: DMX Control

    2 XLR ports and 2 RJ45 ports (512 Addresses)

  • Q1000-DC Light: Temperature Range

    32 to 104 deg. F (0 to 40 deg. C)

  • Q1000-DC Light: Mount Style

    Baby Stud 5/8" Female (16mm) and Junior Stud 1-1/8" Male (28mm)

  • Q1000-DC Light: Barndoor Mount Size

    Size III

  • Dome Diffuser: Diameter

    3" (7.62cm)

  • Dome Diffuser: Lighting effect

    Diffuses and softens the light. Increases beam angle

  • Fresnel Lens: Diameter

    2" (5.08cm)

  • Fresnel Lens: Lighting effect

    Focuses beam of light from 64 deg. to 29 deg. . Also increases the intensity and throw of the light

  • Stand: Material

    Black anodized aluminum

  • Stand: Mount

    5/8" (16 mm) Stud with 1/4"-20 male thread

  • Stand: Maximum Height

    84" (213.3 cm)

  • Stand: Sections

    4

  • Dimensions

    P360 Pro Plus Light: 8.1 x 5.8 x 4.8" (205.74 x 147.32 x 121.92mm)
    Case: 23.96 x 16.00 x 10.10" (608.59 x 406.40 x 256.54mm)
    Light Stand Height Closed: 21" (533.40mm)
    Light Stand Height Extended: 7' (2.13m)
    Q1000-DC Light: 12.8 x 12.75 x 15.7" (32.51 x 32.39 x 39.88cm) and 12.8 x 9 x 6.75" (32.51 x 22.86 x 17.15cm) without Yoke

  • Weight

    Q1000-DC Light: 12.8 lbs (5.81kg) (Include Yoke) and Ballast: 5.1 lbs (2.31kg)
    P360 Pro Plus Light: 1.85 lbs (0.84kg)
    Case when Fully Loaded: 27.6 lbs (12.52kg)
    Light Stand: 2.5 lbs (1.13kg)

About Fiilex X314 Gaffer's 3-Light LED Kit

The X314 combines of one Q1000 with two P360 Pro Plus LEDs into a heavy-duty travel kit. The 1500W-equivalent Q1000 and 400W-equivalent P360 Pro Plus both offer brilliant, high-quality LED illumination that maintains best-in-class CRI across all settings, which include full dimmability, tunable CCT (2800-6500K) and hue (+/-0.25 green).

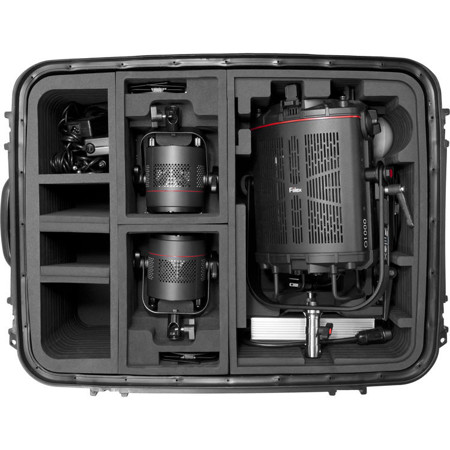

With the durable X-Series case, Fiilex brings new high-capacity options to its line of top-tier portable lighting kits. Inside the X314 case, each light fits snugly into the laser-cut foam interior with all of its included components, while additional space leaves room for accessories. With its wheels and telescopic handle, the X314 can roll out to rugged location shoots, rain or shine and the automatic pressure purge system keeps contents safe during air travel or other changes in altitude. Fiilex has always specialized in versatile, compact, high-intensity LEDs and with the X-Series kits, we're offering a bold new option for media professionals looking to travel with serious power.

• 2300W of Total Equivalent Output
• IP-24 Water Resistant
• Automatic Pressure Purge System
• Plastic Non-Corrosive Locks
• Modular Design for Added Versatility
• Molded-In Padlock Holes
• Wheels and Telescoping Handle
• Designed to Comply with Most Airline Check Sizes

Q1000
The new flagship of the Fiilex line, the Q1000 revolutionizes photo and video work by combining intense power, exceptional light quality, enhanced weather-resistance and portable power options in one remarkable light. Maintaining the same color spectral versatility of the award-winning Q500, the Q1000 boasts a color tuning range of 2800-6500K. This stunning light is clean and accurate at all color temperatures, receiving outstanding TLCI (=95) and CRI (=93) ratings for its precise color rendition.

The Q1000 also offers full dimming from 100% to 0% with no color spiking, as well as hue control of +/-.25 Magenta/Green for deft hue correction on set. Weighing less than 13 lbs and featuring enhanced weather-resistance (IP-24), battery compatibility and built-in DMX Control, the compact Q1000 can be easily rigged into any studio or used for on-location shoots. Highly modifiable, this remarkable light pairs with a wide range of Q-Series and P-Series accessories to give you the right look for you shoot. Get the most versatile and powerful LED of its class with the Q1000 and take creativity to the next level.

• 1500W-2000W Output Equivalent, 340W Draw
• Full Dimming
• IP-24 (Water-Resistant)
• Extended Color Temperature Range (2800-6500K)
• High CRI =93 (3000-5600K)
• Weighs Only 12.8 lbs
• LCD Display & DMX-Ready
• Flicker Free at any Frame Rate
• Virtually Heat Free and Cool to Touch
• Custom Travel Case Available

P360 Pro Plus
The P360 Pro Plus is the next-generation version of Fiilex's flagship portable LED light. This 400W-equivalent fixture takes everything that made the original P360 great and brings it to the next level. The CCT range has been expanded (2800-6500K) and dimming now runs from 0-100%. The Pro Plus also includes hue control (+/-0.25 green), a feature not previously available in LED lights of its size. With the P360's enhanced tunability options and top-tier CRI(>95), matching unpredictable ambient illumination with extremely portable LED lighting has never been easier.

Weighing under two pounds, the weather-resistant (IP-24) P360 Pro Plus is designed for travel, but it can also be easily integrated into DMX setups with its onboard DMX functionality. Other features include a high-resolution OLED display and design tweaks such as the accessory lock. For users looking to get the most out of the P360 Pro Plus, Fiilex offers a wide array of accessories, ranging from magnetic fresnels and diffusers, to softboxes and larger fresnel attachments. With these light modifiers, the Pro Plus can be turned into a broad fill, a powerful spot or anything in between.

• Tunable CCT (2800 - 6500K)
• Hue Control (+/-.25 Green)
• 400W Output Equivalent, only uses 90W
• Water Resistant (IP24)
• Dimming (0 -100%)
• High CRI (>95) at any Color Temperature
• Does not Emit UV Light/Radiation
• Broadband Full Spectrum LED Source
• OLED Display for easy setup
• Single Point Dense Matrix LED Light Source
• Flicker Free
• Lightweight, Compact and Easy for Travel
• Cool to Touch
• Compatible with Broadcast Batteries
• Designed in USA, Assembled in USA/Taiwan

Dome Diffuser
The Dome Diffuser is designed to attach to the magnetic mounts on the front of the P360. The Dome Diffuser increases the beam angle and also softens the light.

• Easy to Attach (Magnetic Mount)
• Spreads Beam Angle
• Diffuses / Softens Light Output
• Great for Use with Beauty Dishes and Softboxes

Fresnel Lens
The Fresnel Lens is designed to attach to the magnetic mounts on the front of the P360. The Fresnel Lens allows you to focus/spot the beam of light to about 29deg. and intensifies the light by roughly 3x.

• Easy to Attach (Magnetic Mount)
• Focuses the Beam of Light
• Use in Conjunction with Gel Clamp for Further Spotting
• Increases Light Intensity
• Increases Throwing Distance

X-Series Case
• Zippered Pouch for Storage of Accessories
• Automatic Pressure Purge System
• Plastic Non-Corrosive Locks
• Modular Design for Added Versatility
• Molded-In Padlock Holes
• Wheels and Telescoping Handle
• Built to Mil-Spec Standards / Lifetime Guarantee

What's in the box:

  • Fiilex Q1000-DC Light Head
  • 2x P360 Pro Plus Light Heads
  • Size III Barndoor
  • 2x Size II Barndoors
  • 5" Fresnel Zoom Lens
  • 2x Dome Diffuser
  • 2x Fresnel Lens
  • 20' PowerCon Cable
  • 340W AC/DC Power Adapter
  • 2x Clamp Mount
  • 2x 90W AC/DC Power Adapters
  • 2x Light Stands
  • X-Series Travel Case
  • Item Note: 1x P360 Pro Plus Light has a stripped thread on the yoke mount; parts only; item destroyed
