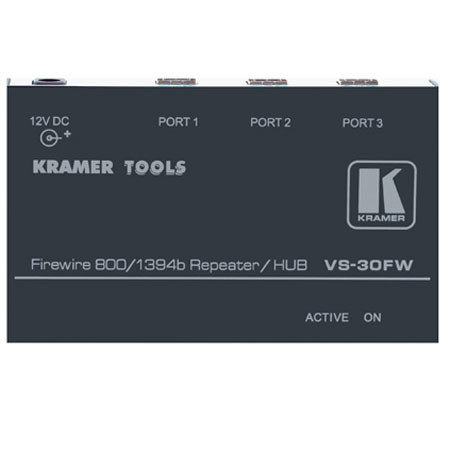

Kramer VS-30FW 3-Port Firewire 800 Repeater / Hub
See all Kramer Electronics items

Kramer Electronics Kramer VS-30FW 3-Port FireWire 800 Repeater / Hub

SKU: VDKRVS30FW

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-02-04T19:00:00

Rated 4 out of 5

Great for tethering digital backs!

If you have trouble dropping the tether on a PhaseOne digital back, then this is the only way to go. There are massive problems with towers and specifically laptops dropping the tether while shooting. This happens because the thunderbolt port doesn't put out enough power, and the slightest dip in power to the digi back, interrupts the tether and crashes the system. This maintains an even power level keeping the tether active, even if the laptop dips for a sec. This is the ONLY solution any of us have found for this problem. If you can't afford to loose your tether on set, it's the best way to go. Totally worth the money. I'm not selling this, I'm just glad that we found it.

Nick

2011-09-04T21:00:00

Rated 3 out of 5

Only adds one additional port.

Good product but you have to use one of the 3 ports to plug into your computer. Therefore there only remains 2 ports to connect to, which is only one more than you had. Is it really worth it?

bippie999

2010-09-08T21:00:00

Rated 1 out of 5

Great concept except for hub powered HDs

Works good on powered drives. Lacks power for hub powered drives. I confirmed this with he manufacturer and they are aware of this limitation.

photographamerica

Kramer Electronics VS-30FW Specifications

  • Ports

    Three bilingual IEEE 1394b 800Mbps (S800) ports

  • Transfer Rate

    100/200/400/800Mbps (S800, S400, S200, S100)

  • Standards

    IEEE 1394-1995, IEEE P1394a, IEEE P1394b

  • Power Source

    12V DC, 500mA

  • Dimensions

    12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") (W x D x H)

  • Weight

    0.3kg (0.67lbs) approx

  • Warranty

    Kramer 7 years limited warranty

  • UPC Code

    7291063026745

About Kramer Electronics VS-30FW

The Kramer VS-30FW is a high-performance bi-directional hub/repeater for 9-pin FireWire 800 (IEEE 1394b) signals. It increases the number of ports available and/or extends the distance of FireWire cable runs.

Kramer Electronics VS-30FW Features

  • Ports - 3 bilingual IEEE 1394b 800Mbps (S800)
  • Range - Doubles FireWire cable range from 4.5m (14.75ft) to 9m (29.5ft). Multiple units can be cascaded to extend the range to up to 72m (236ft)
  • Hot Swapping - Supports Plug-and-Play
  • Transfer Rates - 100, 200, 400 and 800Mbps
  • ESD Protection - Incorporates Kramer's Spark-Guard Pro signal protection circuitry to help protect against EDS (electrostatic discharge) which can damage digital equipment
  • Requires 9-Pin FireWire 800 Cable
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

What's in the box:

  • Kramer VS-30FW 3-Port FireWire 800 Repeater / Hub
  • Power Supply (12V
  • 500mA)
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
