Digi-T Scopetronix Adaptaview-U Digital Camera Adapter T-ring for large telescope eyepieces (requires step rings to fit camera)

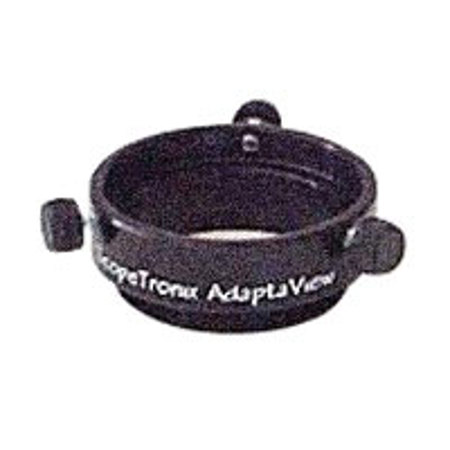

The Adaptaview U is a strong, light-weight machined aluminum ring with .75mm male T threads on top and three steel securing screws around the bottom. The ring is placed on top of the eyepiece (after the rubber eyeguard has been removed from the eyepiece). The three securing screws are then fastened finger-tight. The eyepiece is now transformed into its own eyepiece projection adapter assembly.

This adapter is very versatile and will fit most eyepieces with a removable rubber eyeguard and a top diameter (with the eyeguard removed) of less than 1.75". It is known to fit the following eyepieces: Tele Vue 32mm Pl÷ssl, 40mm Pl÷ssl, 55mm Plossl, all Nagler Type 2's and Type 4's, all Panoptics, and Radians. It also fits Televue and Vixen Zoom eyepieces and the following Meade eyepieces: UWA-8.8mm and 14mm, SWA-24.5mm, 32mm, 40mm and 56 Super Plossl. Useful for both 35mm and digital cameras (for digital camera use the eyepiece must have good eye relief to minimize vignetting). This unit is equipped with a standard male "T" thread on top.
