Questions & Answers

KRISTIN B : Can you do "touch focus" with the Ninja+ and Sony FX6?Roger C : Hello Kristin, unfortunately all controls from the camera have to be controlled ON the camera. the Atomos units do not have camera control except for Z-Cam's.
JASON A : Are there any dedicated, direct connect LANC options for start/stop on the V or V+?Roger C : Hello Jason A, yes there is a brand that makes the stop start option via LANC: <a href="https://www.adorama.com/lbrecla.html?origterm=libec+atomos&searchredirect=true" target="_blank">https://www.adorama.com/lbrecla.html?origterm=libec+atomos&searchredirect=true</a>JAMES, B : Yes, there is a 2.5mm LANC port labeled "Remote" on the side for both the V and V+.
BAESUNG P : Is the Accessory kits shipped separately?

Reviews about this item

Review Summary

2023-10-15T07:59:47

Rated 5 out of 5

Perfect

Perfect to me fixed my space problems .. using prores 422 raw in cheap ssd

luiz l.

2023-08-15T08:31:52

Rated 5 out of 5

Great monitor, but might be overkill for most people.

Great monitor with a ton of capability. It's definitely more than most people would need, but performs great as a basic monitor too.

Robert S.

2023-08-13T08:24:20

Rated 5 out of 5

Getting rid of record limits

It has been incredible for recording videos past the 30 minute time limit set on the canon r6. I've recorded videos up to about 3-4 hours with no issue.

HUNTER H.

2023-07-28T12:27:21

Rated 5 out of 5

Working Great

Working Great ..

BHAGYA P.

2023-07-28T12:26:37

Rated 4 out of 5

Cable is not 100% compatible with Monitor

No idea who build this bundle. Had so many issues with 4K cable (Worked fine first few months). After months of struggle, Support finally recommended to use Cable from Atomos. If it is not 100% compatible, why including in the bundle.

BHAGYA P.

2023-07-21T18:41:14

Rated 5 out of 5

Good

Good screen

SALEH A.

2023-04-12T14:45:56

Rated 5 out of 5

Boosting Video Quality for My Running School

The Atomos Ninja V+ 5" Touchscreen Recording Monitor has been a game-changer for producing top-notch videos of our instructors at my running school. The monitor delivers outstanding visuals and accurate colors, ensuring the highest quality for our recordings. I've paired it with my Blackmagic Design ATEM Mini Pro ISO for studio sessions and attached it to my FX30 when on-the-go for fieldwork. Its compact and lightweight design makes it perfect for all scenarios. In short, the Atomos Ninja V+ is an essential tool for my video production needs. Highly recommended!

Daniyel B.

2023-01-18T07:18:16

Rated 4 out of 5

Great package except for hdmi cables

Great price for this bundle. One more would be that they include only 4K hdmi when this recorder can do up to 8k - would suggest they update the package.

CJ S.

2022-12-14T15:00:59

Rated 5 out of 5

Totally worth every penny

Totally worth every penny. You know it?s a great value when my only gripe is I would?ve liked to have a mini hdmi cable instead of one of the ones that canes in the bundle. Decided to future-proof myself with the V+ since my next cam is a RED. The monitor itself has already elevated my video game significantly.

JERRY N.

2022-09-03T13:00:00

Rated 5 out of 5

Great workflow

Fabulous piece of kit. Ergonomic and does the job of two in one. I love my 12 bit raw from this gem coupled with my gh6. Thanks Atomos and please more goodies and updates.

SAIF R.

2022-08-12T15:01:03

Rated 5 out of 5

5 stars

Love this monitor and to be able to use my Canon R5 to its full abilities is the icing on the cake. Bright and accurate colors, built in luts, 1TB ssd storage. 5 stars

Aaron O.

2022-08-10T04:39:16

Rated 5 out of 5

Excellent

Excellent product.

Al M.

2022-07-21T14:16:08

Rated 5 out of 5

Great little bit of kit

I just upgraded to the V+ and I love it.

Jason A.

2022-07-03T16:43:09

Rated 5 out of 5

Love this recording monitor!

A key item for my Z Cam rig. Eliminates my need for a C Fast card and works as expected.

ANGELA H.

2022-06-27T08:17:36

Rated 5 out of 5

Great atomos

Great monitor. Very small

Jacob H.

2022-06-23T18:09:23

Rated 5 out of 5

Good? Goooood!!

a very fast delivery.. My R5 camera is a video camera You can switch.

Taehyeong K.

2022-05-27T08:27:31

Rated 5 out of 5

Came just as described

Came in great condition

THOMAS R.

2022-05-19T09:10:59

Rated 5 out of 5

Ninja V +

The best bundle to get you started.

Emmanuel S.

2022-05-11T19:39:59

Rated 5 out of 5

Awesome!

This is a helping hand in a filmmaking process. I can't imagine my work flow without my Atomos Ninja V+.

Maykon H.

2022-04-24T08:20:30

Rated 3 out of 5

P.S. We downgraded your footage to 10 bit? Nope.

Hidden in the fine print is the key fact that Ninja V+ 8k ProRes RAW format is a downgrade to 10 bit from the native Canon 12 bit RAW, which matters a lot in post. When I read the fine print, I returned mine. Don?t miss that 10 bit quality.

MARK H.

2022-03-29T08:14:57

Rated 5 out of 5

Great recorder and great monitor.

Use it, for canon r5, and now i can record all formats with almost no trouble at all. Also can record all 4k formats to directly edit, no proxies, no h265. Great monitor also, bright, with peaking, false color, waves, etc.

Di A.

2022-02-25T03:16:26

Rated 5 out of 5

No Regrets

This is a great external monitor that does so much more. You can?t go wrong with this.

KOLE S.

2022-02-11T07:26:08

Rated 5 out of 5

Highly recommend

Atomos delivers again with a great comprehensive product that delivers!

NATHANIEL G.

2022-01-05T07:12:32

Rated 5 out of 5

Sweet external recorder package.

So far this thing is the real deal. I'm using to record 4K and 8K footage from my Canon R5 but also using it to record 5K Zoom meetings off my iMac Pro as ProRes files for editing later. Works like a champ. The bundle did NOT INCLUDE the sled you need to attach a drive to your computer, so be mindful of that small additional expense.

JONATHAN S.

2021-11-28T10:06:15

Rated 5 out of 5

I would recommend the V until they unlock more features

I bought it, thinking I would be able to record 120fps with my R5, but it?s not to be?yet, I hope. It does do 8k ProREs RAW and 5k60, which looks great! Other than that, it?s the same as my Ninja V.

Lee R.

2021-11-10T05:06:57

Rated 5 out of 5

Pleased as always

Great value for the price. If your looking to future proof ninja game here it is.

Andrew H.

2021-10-29T08:12:39

Rated 3 out of 5

Weird colors with Canon 5dIV and Canon C300II and GoPro

Current firmware version does not support Canon 5dIV and Canon C300II, also no GoPro support. Atomos is aware of this issue and they are hoping to resolve it with a new update, when? no one knows:((( When I plugged in the Ninja V+ into cameras mentioned above I got inverted colors.

YEVGENIY K.

2021-10-27T08:13:10

Rated 5 out of 5

Nicely Done

While updating with new firmware, activating various codecs was a bit of a pain and the defaults on the audio mixer lead to confusing results, those are ultimately just inconveniences. This setup used in combo with the R5 transforms the camera's capabilities.

Armen Z.

2021-10-24T13:50:20

Rated 4 out of 5

Atomos Ninja V+ 5" can not record HDMI gameplay from PC.

Great little recorder. Can record unlimited 8k30 into proresraw if you have plenty of storage :) so far working ok with my R5. Best companion for canon R5 hands down. Problem with game recording from PC. May be due to HDCP. Can not record gameplay with RTX3090 on windowds 11 from HDMI port. gets little hot when running. recommend for everyone who want ease of editing with newer macbook pro with M1 chips as you can directly take footage in and edit and color without transcoding. love it and recommend it highly.

SUKHPAL R.

2021-10-13T11:54:03

Rated 5 out of 5

Nice pro kit bundle

Super excited to get the Atomos Ninja V+ finally! The Pro bundle kit was very nice & there was actually 2 sunhoods included! Alas the Ninja V+ unit I got was defective as the fan inside would hit & make a loud noises when the unit was tilted in different angles. I emailed Atomos & they confirmed it was indeed a defective unit & to send it back for a replacement. I sent it back to Adorama for a full refund & they took care of me no problems!

ARIEL A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Atomos Ninja V+ Specifications

Display

Display

Jump to...
  • Panel Type

    IPS-Type LCD

  • Display Size

    5.0" (12.7cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    1000 cd/sq. m

  • Bit Depth / Color Support

    8-Bit+FRC (1.07 Billion Colors)

  • Pixels Per Inch (ppi)

    423 ppi

  • Color Gamut

    100% Rec. 709

  • Real-Time LUT Monitoring

    SDR

  • Image Controls

    Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

  • Video

    1x HDMI Type A (HDMI 2.0) Input
    1x HDMI Type A (HDMI 2.0) Output

  • Embedded Audio

    HDMI: 2-Channel
    HDMI: 8-Channel

  • Audio

    1x 1/8" (3.5mm) Mic/Line Input
    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power

    1x D-Tap Input

  • Other I/O

    1x LANC (2.5 mm)

  • Media/Memory Card Slot

    None

Format Support

Jump to...
  • Video Format

    HDMI (8/10-Bit 4:2:2)
    8K Raw: 30
    4K Raw: 120/60/30
    DCI 4K: 120/60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/60/50/30/25/24
    1080i: 60/50
    720p: 60/50

  • Gamma Curve

    Rec709

  • Video Signal Conversion

    HDMI to SDI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 120/100/60/50/30/25/24
    1080i: 60/50
    720p: 60/50

Recording

Jump to...
  • Pulldown Conversion

    2:2, 3:2

  • Camera Trigger

    HDMI

  • Pre-Roll Record

    4K: 2 Seconds
    Full HD: 8 Seconds

  • Encoding Formats

    Up to 7680 x 4320
    ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit 4:2:2 at up to 120 fps
    H.265 422 10-Bit 4:2:2 at up to 120 fps
    H.265 422 8/10-Bit 4:2:0 at up to 120 fps
    DNxHR HQ, HQX, LB, SQ 8/10-Bit

  • Maximum Audio Tracks

    12

  • Metadata Tagging

    10

  • DC Input Power

    6.2 to 16.8 VDC

  • Battery Type

    1x L-Series

  • Power Consumption

    10 W (Typical)
    22 W (Maximum)

Mounting

Jump to...
  • Mounting

    2x 3/8"-16 Female

Environmental

Jump to...
  • Operating Temperature

    104°F (40°C)

General

Jump to...
  • Material of Construction

    Aluminum, Polycarbonate

  • Battery Info

    Required, not included

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • Dimensions

    5.9 x 3.6 x 1.2" (151 x 91.5 x 31.5mm)

  • Weight

    12.7 oz (360g)

  • UPC Code

    814164022569

11 Accessories for Atomos Ninja V+ 5" Touchscreen Recording Monitor

  • All Accessories (11)
  • Batteries & Power Supply (9)
  • Cables & Adapters (2)

About Atomos Ninja V+

FEATURED REVIEWS

Sweet external recorder package.

By JONATHAN S.

So far this thing is the real deal. I'm using to record 4K and 8K footage from my Canon R5 but also using it to record 5K Zoom meetings off my iMac Pro as ProRes files for editing later. Works like a champ. The bundle did NOT INCLUDE the sled you need to attach a drive to your computer, so be mindful of that small additional expense.

I would recommend the V until they unlock more features

By Lee R.

I bought it, thinking I would be able to record 120fps with my R5, but it?s not to be?yet, I hope. It does do 8k ProREs RAW and 5k60, which looks great! Other than that, it?s the same as my Ninja V.

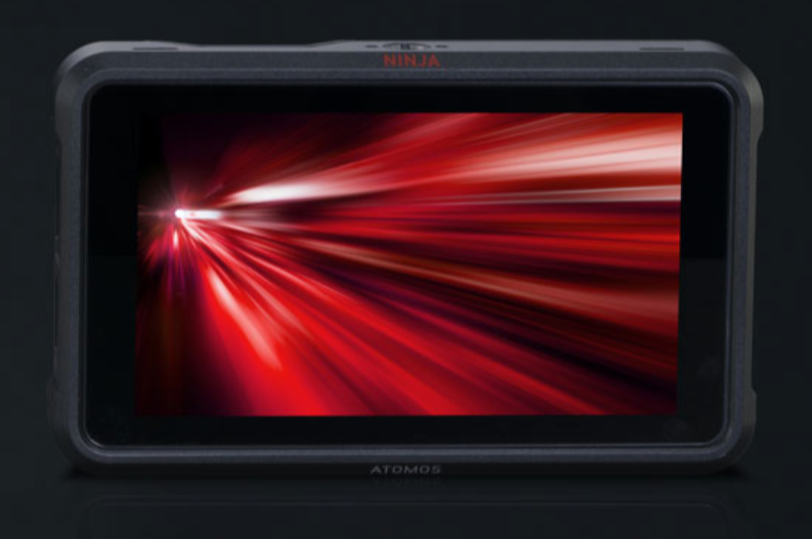

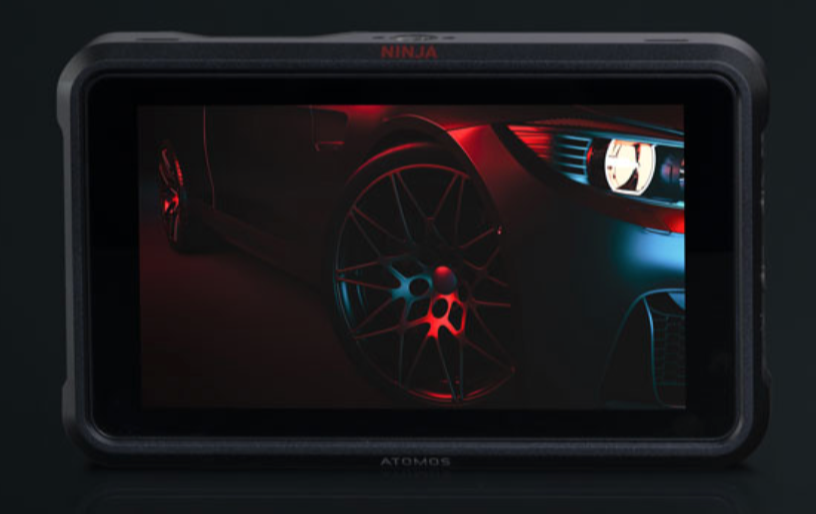

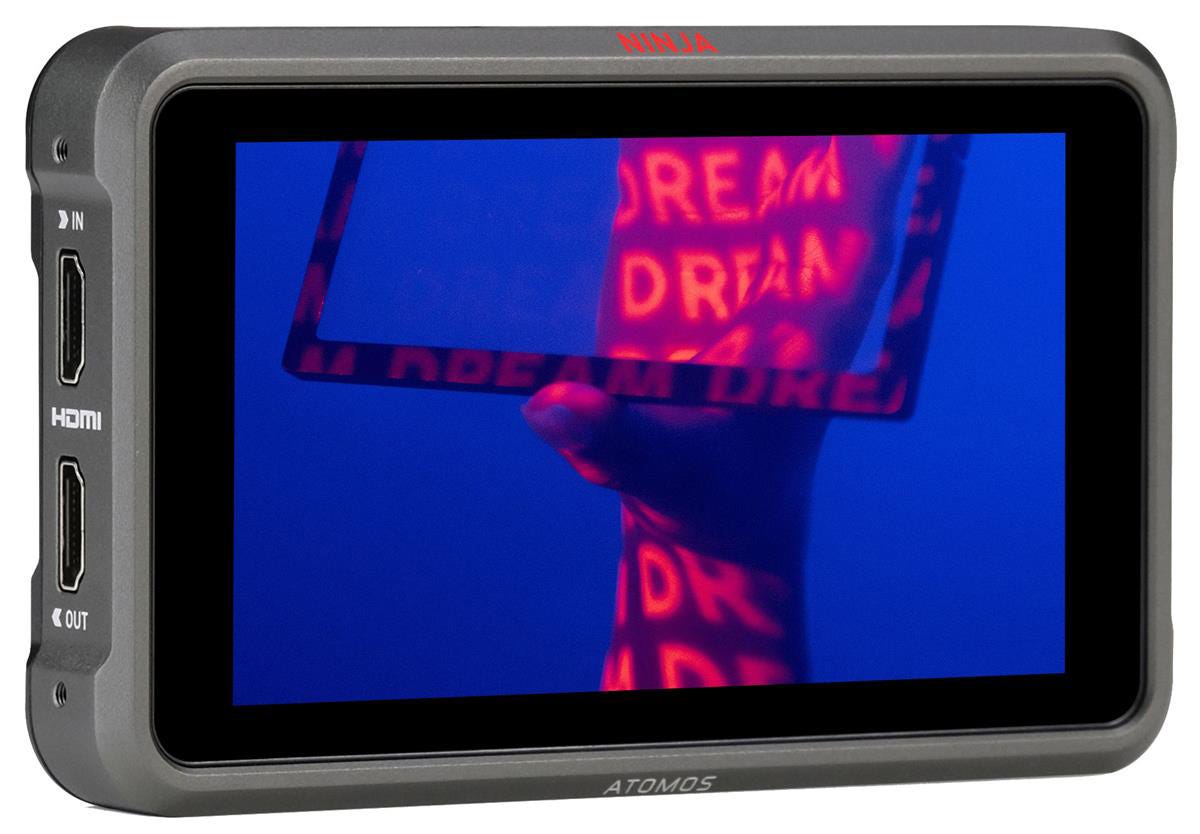

Atomos Ninja V+

Atomos Ninja V+.

Only subtly different in terms of design from its predecessor, the Ninja V+ is a powerhouse of video and image processing. Next-gen chip technology enables higher frame rates and higher resolutions for ProRes RAW recording over HDMI, in addition to all of the features of Ninja V that our users have come to expect.

Elevate Your Workflow.

• ProRes RAW recording over HDMI up to 4Kp120 with Z Cam E2 and E2-M4
• ProRes RAW recording over HDMI up to 8Kp30 (integrations with cameras coming from mid-2021)
• H.265 Pre-Activated
• Access to 'PLUS' features in future AtomOS firmware updates (with future Atomos AtomX products)
• High quality new accessories included: high-quality neoprene product sleeve, EVA style hard case, battery eliminator, Master Caddy II Case, Worldwide AC/DC Power Adapter & Quick Start Guide

H.265 is already pre-activated on the Ninja V+ to meet the changing demands of video production and recording with options for:

• 10-bit Recordings in 4:2:2
• 8-bit Recordings in 4:2:2 and 4:2:0
• XQ - Bit rates up to 350mbps / MQ - Bit rates up to 200Mbps / LQ - Bit rates up to 100Mbps

Elevate Your Workflow.

Perfect For:

• Recording long-form sessions or productions on a fraction of the drive space - removing time limits and restrictions
• Capturing delivery codecs ready to share from video streams or presentations for upload to CDN, Intranets, etc
• For recording RAW internally on ARRI or RED with a simultaneous H.265 external recording with the same file name and timecode, and the option to burn in your choice of 3D LUT
• Updating a system from MPEG AVC to HEVC H.265 with options for 8 or 10 bit recordings in 4:2:2 and 4:2:0

Perfect For:

Features.

  • ProRes RAW recording over HDMI up to 4Kp120 with Z Cam E2 and E2-M4
  • ProRes RAW recording over HDMI up to 8Kp30
  • H.265 Pre-Activated
  • Access to 'PLUS' features in future AtomOS firmware updates with future Atomos AtomX products

Key Features

  • Capture stunning detail with the Ninja V+'s 5" 1920x1080 touchscreen monitor.
  • Enjoy flexible HDMI connectivity for seamless integration with your camera setup.
  • Record in ProRes RAW up to 8K for unparalleled video quality and editing.
  • Achieve perfect focus with built-in focus peaking and zoom tools on this monitor.
  • Utilize waveform & vectorscope for precise exposure & color adjustments on set.
  • Lightweight build at just 12.7oz, ideal for on-the-go video production needs.

What's in the box:

  • Atomos Ninja V+ 5" Touchscreen Recording Monitor
  • High-Quality Neoprene Product Sleeve
  • EVA Style Hard Case
  • Battery Eliminator
  • Master Caddy II Case
  • Worldwide AC/DC Power Adapter
  • Quick Start Guide
  • Atomos 4 Year Limited Warranty (1 Year + 3 Year with Product Registration)
