Questions & Answers

Ken S : Does this system come with a tripod bag?ANDREW R : Yes, I believe this item includes a carrying bag.

Reviews about this item

Review Summary

2014-04-07T21:00:00

Rated 4 out of 5

A lightweight, heavyweight performer

This is a 'Four & A Half Star' – near perfect! The MV502HA provides all the performance of a much heavier tripod in a lightweight carbon fiber package. The well built MV502 will stand up to serious use and is more than a match for any DSLR and most modern video cameras, such as the C100-C500. The photo does not adequately interpret the bulk of the tripod legs - this is a sturdy, solid design and is very well built. The 502 head is a top performer, but not quiet perfect. The 502 is ideal for DSLR and still photography but not 'perfect' for video – again, not perfect still means it's very, very good. However, during a brief break in period I was concerned about a creaking sound each time I would pan with the head. The issue was resolved by fidgeting with the various tension mechanisms and finding the right balance for the camera. But having owned dozens of Manfrotto heads this was the first time I experienced anything like this. A second unit did the very same thing and was corrected with the same process. Overall, high marks and a great addition to my kit.

Lawman

Manfrotto MV502HA Specifications

  • 502 Video Head

    Included

  • Counter Balance System

    Yes

  • Quick Release/Wedge Plate

    Yes, 504PLONG

  • Tilt Drag

    Continuously adjustable from 0 to max level

  • Tilt Range

    -80° / +90°

  • Tilt Lock

    Yes

  • Spring Loaded Counter Balance

    Yes

  • Pan Range

    360°

  • Pan Lock

    Yes

  • 535 Tripod Legs

    Included

  • Load Capacity

    13.2 lb (6 kg)

  • Maximum Height

    67.32"

  • Minimum Height

    10.63"

  • Leveling Bubble/Illuminated

    One

  • Material

    Carbon fiber tubing and magnesium castings

  • Head Attachment Fitting

    3/8" screw attachment

  • Leg Stages/Sections

    Three

  • Independent Leg Spread

    Yes

  • Spiked/Retractable Feet

    Yes

  • Center Brace

    No

  • Weight

    9.48 lb (4.3 kg)

  • UPC Code

    719821362319

About Manfrotto MV502HA

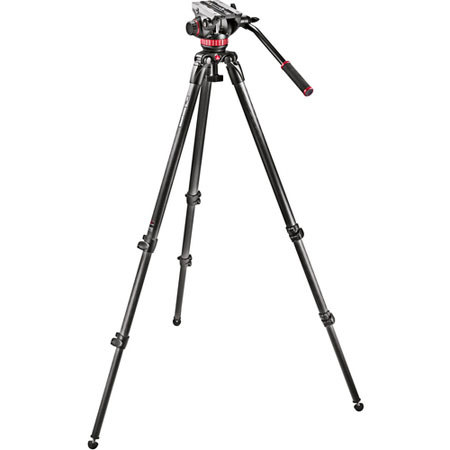

The MVH502A Fluid Head and 535 CF Tripod System from Manfrotto combines the smooth and stylish MVH502A Fluid Video Head with the 3-section single-tube carbon fiber and magnesium 535 CF Video Tripod--providing an unbeatable combination of stability, affordability, and precise control. This versatile system was designed with independent video and DSLR shooters in mind, and provides the ergonomics and support necessary for today's small crews. The head has a weight capacity of 12.2 lb and counterbalance supports 8.8 lb.

Manfrotto MV502HA Features

  • Half bowl carbon fiber tubes and magnesium die castings
  • Three-section 75mm legs
  • New leg angle selector for adjusting the leg angle in a quick, easy and precise way

Key Features

  • Half bowl carbon fiber tubes & magnesium die castings
  • Three-section 75mm legs
  • New leg angle selector for adjusting the leg angle in a quick, easy & precise way

What's in the box:

  • 502HD Pro Video Head with 75mm Half-Ball
  • 535 CF Tripod
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
