Questions & Answers

FAQ

Does the MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable support 4K video transmission?

Yes, the MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable supports 4K video transmission at 30Hz with 4:4:4 Chroma sampling, ensuring high-resolution video transmission.

What makes this HDMI cable more flexible than traditional ones?

The MicroFlex Active Pro AV/IT HDMI cable has a zero bend radius and a smaller outer diameter, which is up to 40% smaller than traditional HDMI cables. This makes it more flexible and easy to work with, especially in tight spaces.

What is the ProGrip connector and what is its benefit?

The ProGrip connector is an exclusive feature that secures the connection with up to 16lbs of retention force. This prevents the cable from being unintentionally disconnected, reducing the risk of service interruptions.

Can I use this HDMI cable for commercial applications?

Yes, the MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable is designed for commercial use. It's perfect for classrooms, conference rooms, digital signage, and other commercial applications requiring high-quality, reliable data transmission.

Does this cable offer any network connectivity?

Yes, the MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable comes equipped with Ethernet, allowing for network connectivity between connected devices.

Shopper : Why Did You Choose This?KEVIN M : Needed a 50' cable, and this was the first one that came up.

Reviews about this item

Review Summary

2022-11-10T03:15:59

Rated 4 out of 5

Standard, but requires extra reading for noobs like me

The cable works as it is designed to. It is like all HDMI cables: pretty bulky, heavy, and stiff, unlike audio cables. What i didn?t realize on purchasing it is that it is not bi-directional, so you have to find the very small label at one end of the cable that says display, and that is the only end that can be plugged into the projector/tv. I thought it was broken at first and wasted valuable setup time troubleshooting. Many HDMI cables are like this but it was not made clear from the advertising.

NICHOLAS R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable, 50' Specifications

Performance & Resolution

Performance & Resolution

Jump to...
  • 3D Ready

    Yes

  • Audio Formats Supported

    Dolby True HD, DTS-HD Master Audio and up to 32 audio channels

  • Audio Return Channel

    Yes

  • Chroma Sampling

    4K 60hz 444 8 bit

  • Color Bit Depth

    8 Bit

  • Data Speed

    Up to 10.2 Gbps

  • Ethernet Capability

    Yes

  • HDCP Compliant

    Yes

  • CEC Compliant

    Yes

  • HDMI ATC Certified

    No

  • Max Distance

    Up to 50'

  • Resolution and Refresh Rate

    Up to 4K@30fps and 8 Bit Color Space or 1080p@60fps and 16bit Color Space

  • Performance Grade

    Best/Commercial Grade

  • Signal Technology Versions

    HDMI 1.4

Connections

Jump to...
  • Connector Side 1

    HDMI Male 19 Pin Type A

  • Connector Side 2

    HDMI Male 19 Pin Type A

Environmental

Jump to...
  • Temperature Rating

    176 Degree F (80 Degree C)

  • DC Resistance

    at 20 Degree C MAX 28AWG: 237.25 Ohms/km; 24AWG:93.25 Ohms/km

  • Insulation Resistance

    10MW-km min at 20 Degree C dc 500V.(EIA-364-21)

  • Nominal Attenuation

    at 0.30-825 MHz 5dB/3.5M; at 825-2475MHz 12dB/3.5M; at 2475-4125MHz 20dB/3.5M; at 4125-5100MHz 25dB/3.5M

  • Skew

    Intra pair Max 111ps/cable
    Inter pair Max 1.78ns/cable

  • Voltage

    30V

Regulatory

Jump to...
  • ATC Certification

    No

  • CE

    No

  • CL3 Rated

    Yes

  • Prop 65 Compliant

    Yes

  • Rohs Compliant

    Yes

  • UL

    Yes

Physical

Jump to...
  • Bend Radius

    0

  • Conductors

    19 pins

  • Color

    Jet Black

  • Connector Finish

    24k Gold Plated

  • Directional

    Yes

  • Gauge (AWG)

    Up to 20': 30awg, 25': 30/32 awg, 35': 28/32 awg

  • Jacket Type

    Xtra-Flex PVC

  • Shielding

    Triple Shielded, Inner 100% Aluminum Mylar Wrap, Outer 100% Aluminum Mylar Wrap, 85% Tinned Copper Braid

  • Dimensions

    Length: 50' (15.24cm)
    Cable Outer Diameter: 0.26" (6.5mm)

  • UPC Code

    808447081558

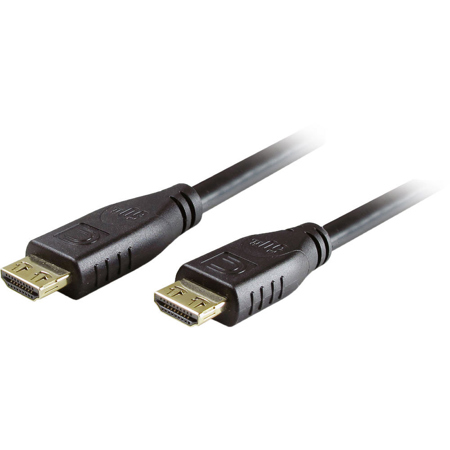

About Comprehensive MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable, 50'

After meticulous design to meet the high standards of professional AV setups, the MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable with ProGrip and Ethernet emerges as an exceptional choice for those seeking a blend of sleek construction and robust performance. This 50-foot, jet black cable is engineered to deliver end-to-end 10.2Gbps data speeds, ensuring that high-definition video and audio signals are transmitted with precision and without compromise, even over extended distances.

Crafted for ease of installation in mind, the MicroFlex Active Pro AV/IT HDMI cable boasts a significantly smaller and slimmer outer diameter (O.D.) compared to traditional HDMI cables. This reduced profile not only facilitates easier cable runs but also minimizes the bulk and weight typically associated with longer cables. The ultra-flexible design, featuring a zero bend radius, is up to 40% smaller in O.D., making it an ideal solution for tight spaces and complex setups in classrooms, conference rooms, and other commercial environments.

Equipped with 4K@30Hz capability and 4:4:4 Chroma sampling, this cable is designed to support the latest in high-resolution video technology, ensuring a crisp and clear picture. The inclusion of Ethernet within the cable allows for network connectivity, adding an extra layer of versatility for connected devices.

The ProGrip connector is a standout feature, providing a secure connection with up to 16lbs of retention force. This innovative design significantly reduces the risk of accidental disconnections, saving time and preventing service interruptions. Additionally, the SureLength cable length indicators are a thoughtful touch, clearly marking the cable length on the connector mold, which is a substantial time-saver during setup and organization.

Constructed with commercial-grade durability, the MicroFlex HDMI cable is built to withstand the rigors of frequent use. The stress-reducing molded strain relief and ultra-flexible jacket are designed for thousands of connections, while the triple professional-grade shielding ensures superior rejection of electromagnetic (EM) and radio frequency (RF) interference.

Since 1974, Comprehensive's Pro AV/IT Series Cables have been the trusted choice for system integrators and technology professionals, known for their reliability, performance, and value. These cables are not only suited for high-stakes commercial applications but also offer premium quality connectivity for any user who demands the best.

Please note that MicroFlex lengths of 12ft and above, including this 50ft model, are active and directional. The display end of the connector is slightly longer than the source connector, ensuring that the correct orientation is maintained for optimal signal integrity.

Comprehensive MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable, 50' Features

  • Smaller, thinner diameter makes this cable much easier to run
  • Active Chip Technology ensures End to End 10.2Gbps performance up to 50'
  • Ultra-flexible with low bend radius
  • Durable, rugged commercial grade construction, Gold plated contacts
  • Micro Head with ProGrip HDMI connectors eliminates loose connections
  • SureLength indicators make it easy to organize for installs
  • Deep Color, Audio Return Channel
  • Ethernet Capable
  • CL3 Rated for In Wall Use

Key Features

  • High-speed HDMI to HDMI cable with 10.2Gbps end-to-end performance for reliable data transfer
  • 4K@30Hz capability and 4:4:4 Chroma sampling for high-resolution video transmission
  • Integrated Ethernet for versatile network connectivity
  • ProGrip connector with up to 16lbs of retention force to prevent accidental disconnections

What's in the box:

  • MicroFlex Active Pro AV/IT 10.2G HDMI to HDMI Cable with ProGrip (50')
  • Comprehensive Lifetime Limited Warranty
