Tilta Rig for RED DSMC 2 Camera (Kit B1), AB-Mount

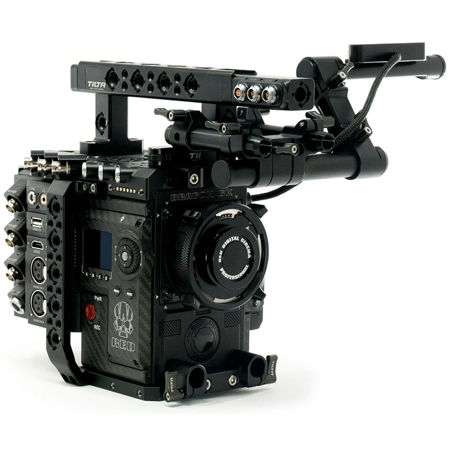

Arm your camera with this Tilta camera cage specifically designed for the DSMC2 line of Red cameras. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several 1/4"-20 and 3/8"-16 mounting points for attaching accessories. The Tilta Advanced I/O Module on the back of the cage directly integrates with the camera body to provide several power, video and audio in and outputs. The battery plate on the back comes in either V-mount or gold mount based on your preference. Pins on top of the module directly communicate with the top plate and top handle when attached which transfers the in/out functionality to them. This allows you to power your accessories from virtually anywhere on the cage.

The top plate has several power outputs as well as a Pogo connection so that you can attach your DSMC2 monitor. The included Pogo-to-Pogo Extension Cable allows you to attach your monitor away from the top of the camera body. If you have a LEMO-based DSMC1 monitor, there's also an included Pogo-to-LEMO Adapter that can be attached so that you can use a LEMO-to-LEMO cable to power the monitor. The top handle features a record start/stop button and the included Top Handle Power Connection Module can be attached to either the front or back of the handle to provide even more 2-pin and 3-pin power outputs. On the bottom of the cage is a small 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

Packing List

• 2x 15mm Top Rod Adapters
• 15mm LWS to 19mm Rod Adapter for LCD Bracket
• 19mm Rod Adapter for LCD Bracket
• EVF Holder
• Pogo to 16-Pin LEMO Adapter for DSMC1 LCD/EVF
• Switchable DSMC2 LCD Bracket
• Pogo to Pogo Extension Cable
• Red Cage B1 Side Arm
• 15mm LWS Tilta Standard Baseplate
• 2x 15mm x 80mm Rods

Top Handle with Power Pass Through and Run/Stop Button
• 2x Cold shoe mounts

Top Handle Power Connection Module
• 2x 14.8V 3-pin Fischer outputs
• 1x 14.8V 2-pin LEMO output

Top Plate
• 2x 14.8V 3-pin Fischer outputs
• 1x 14.8V 2-pin LEMO output
• 1x Genlock port
• 1x TimeCode port
• 1x Trigger port
• 1x Front switch to turn on and off the run/stop feature of the top handle

Tilta Advanced I/O Module
• 3x HD-SDI outputs
• 1x HDMI output
• 2x 14.8V 3-pin Fischer outputs
• 2x 14.8V 2-pin LEMO outputs
• 1x P-tap power output
• 1x 4+2-pin 12V-14.8V LEMO DC power input
• 1x USB power output
• 1x CTRL port
• 2x 3-Pin XLR audio ports (does NOT have phantom power)
• 1x Stereo headphone output
