Kramer Electronics 1' 4-Pin Mini Din Male to 2 BNC Male S-Video Breakout Cable
See all Kramer Electronics items

Kramer Electronics 1' 4-Pin Mini Din Male to 2 BNC Male S-Video Breakout Cable

SKU: KRCSM2BM1
(1)

This item is no longer available.

Recommended Alternatives

Kramer Electronics : Picture 1 regular
Kramer Electronics 984' 1 Coax RG-6 Super High-Resolution Bulk Bare Copper Cable
$320.00
Kramer Electronics : Picture 1 regular
Kramer Electronics 328' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG
$625.00$500.00
Kramer Electronics : Picture 1 regular
Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG
$1,865.00$1,492.00
Kramer Electronics : Picture 1 regular
Kramer Electronics 1000' Plenum Rated Bulk 5 Mini Coax Solid Core Cable
$2,121.00$1,696.80
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-01-20T08:45:41

Rated 5 out of 5

Easy Order. Fast Service

Easy ordering. Fast service. Seem to be good quality.

DANNY V.

Kramer Electronics 1' 4-Pin Mini Din Male to 2 BNC Male S-Video Breakout Cable Specifications

  • Attenuation (dB/100 ft)

    -0.5 dB at 1MHz.
    -1.2 dB at 5 MHz.
    -1.8 dB at 10 MHz.
    -4.4 dB at 50 MHz
    -6.7 dB at 100 MHz

  • Coax Center Conductor

    26 AWG 7/34 tinned copper

  • Dielectric

    Foam polyethylene
    0.176 inches, 1.95mm

  • Shield

    (A) 90% spiral 38 AWG tinned copper
    (B) aluminum foil/Mylar 25% overlap rate

  • Drain Wire

    24 AWG 7/32 tinned copper

  • Coax Jacket Colors

    Yellow, white

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark gray with white lettering

  • Center Conductor

    0.018" (0.05cm)

  • Individual Coax

    0.102" (0.26cm)

  • Outside Diameter

    0.244" (0.62cm)

  • Impedance

    75 Ohms

  • DC Resistance

    45 Ohms per 1000ft, 148 Ohms per km

  • Capacitance

    17.3pF per foot, 53.1pF per meter

  • Velocity of Propagation

    0.76

  • Temperature

    68 to 167 deg. F (20 to 75 deg. C)

  • Length

    1' (0.30m)

  • UPC Code

    7291063085285

About Kramer Electronics 1' 4-Pin Mini Din Male to 2 BNC Male S-Video Breakout Cable

FEATURED REVIEWS

Easy Order. Fast Service

By DANNY V.

Easy ordering. Fast service. Seem to be good quality.

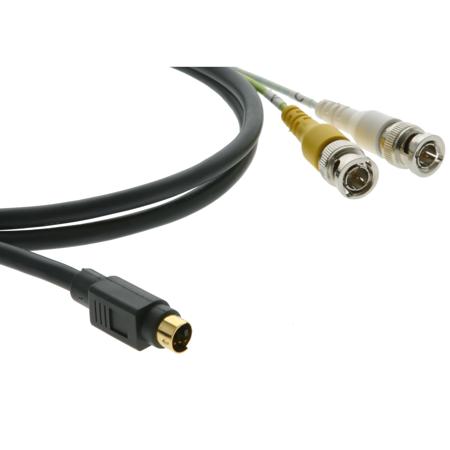

Kramer's s-Video (Y/C) breakout cable is constructed of dual mini coax cables with a male s-Video (4-pin) connector on one end and 2 BNCs on the other. They are used for converting an s-Video signal from the typical 4-pin format to higher quality dual BNC format preferred for long cable runs.

Quality Construction
Luminance (Y) and chrominance (C) signals are passed through a high-quality 26 AWG dual coax cable terminated with 4-pin mini DIN and high quality BNC connectors.

High Quality Connectors
Gold plated s-Video connectors for corrosion resistance and best possible connection and 75 Ohms BNCs for correct impedance matching.

Flexible Applications
Perfect for integrating consumer products into commercial display systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics 1' 4-Pin Mini Din Male to 2 BNC Male S-Video Breakout Cable
  • Kramer Electronics 7 Year Warranty
