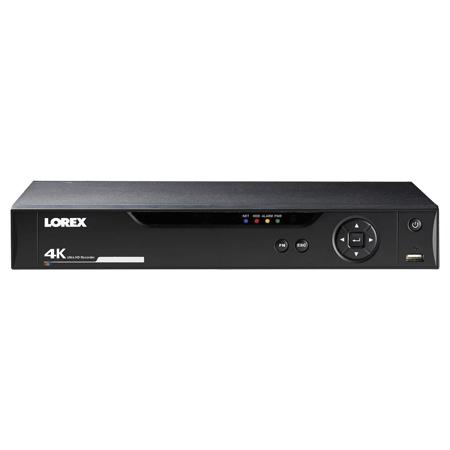

Lorex 4K Ultra HD 16 Channel Security System with 3TB HDD DVR and 12 Active Deterrence 4K (8MP) Bullet Cameras

SKU: LRX1163T12KX

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-12-19T19:04:12

Rated 5 out of 5

Satisfied all the needs.

It service is exvellent.

haileyesus s.

2019-05-26T20:00:00

Rated 5 out of 5

Outstanding Performance and Picture Quality. Best Product in the market.

SB

2018-12-29T19:00:00

Rated 5 out of 5

Easy setup, all my previous systems required port forwarding configurations in the firewall, with cloud is as simple as scan a QR code in the dvr and that's it. Your phone can get to the video wherever you are. Excellent night image, love the siren and LED deterrence feature, you can activate one alarm at the time or all of them. It's very easy to use.

Happy c.

2018-12-13T19:00:00

Rated 5 out of 5

Very clear and high definition video quality; easy and straight forward to hook everything up; and very beneficial mobile and laptop app to view the live recordings and playback previous recordings from your phone or laptop from anywhere in the world. Customer service has been very assistive also.

Bikram

2018-12-13T19:00:00

Rated 5 out of 5

Very crisp and clear high definition quality video; the cameras and wiring is straight forward and easy to hook up; the best feature is the app that allows you to view live recording and previously recorded videos on your mobile or laptop app; and finally, the customer service has been pretty assistive!

Bikram

2018-12-02T19:00:00

Rated 5 out of 5

I bought this surveillance system for our residential area, and so far so good. The video quality from the cameras is very clear and crisp. The installation was straight forward, as there is just one video cable and one power cable running from the cameras to one common area to attach to the receiver. I am able to view the live video on my iphone app anywhere! Good stuff.

Bikram

2018-10-07T20:00:00

Rated 5 out of 5

I love this upgrade from Defender Brand. Lots more features and love the Zoom feature. Whats really nice is its backward compatible with standard analog cameras up to 4K. I definitely will recommend!

Louie

2018-08-20T20:00:00

Rated 5 out of 5

I have purchased many security and surveillance systems in the past and three of them being the Lorex system. I do like the interactive technology of the 4K security systems that have active deterrent. One of the deciding factors in the purchase was that I could be an active part of the deterrent process, instead of being just a passive observer. I would also like to thank the Lorex support department for their patience, and help answering my questions. It is people like these that serve as the front line defense of corporations today and they need to be commended for doing so.

Techie

Lorex 4K UHD Security System Specifications

DVR
  • Operating System

    Linux embedded

  • Pentaplex Operation

    Simultaneous view, record, playback, backup, and remote monitoring

  • Number of Channels

    16

  • Video In

    16 x 1 V p-p, CVBS, 75 Ohms, BNC

  • VGA Out

    Yes

  • HDMI Out

    Yes

  • Audio

    1x RCA line in
    1x RCA line out

  • USB Ports

    1x rear
    1x front

  • Video Output Resolution

    HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
    VGA: Maximum 1920 x 1080

  • PTZ Control

    RS-485 Pelco D & P protocols

  • Live Display

    1, 4, 8, 9, 16

  • Live Display Speed

    480 NTSC, 400 PAL

  • OSD

    On/off

  • System Navigation

    USB mouse, IR remote controller, front panel

  • Motion Area Setting

    Fixed grid 396 pixels (22 x 18) NTSC/PAL

  • Sensitivity

    100

  • Firmware Upgrades

    Automatic over the internet and via USB device & network

  • User Authority

    By user group

  • Time Synchronization

    Auto time sync by NTP server

  • Video Compression

    H.264+

  • Audio Compression

    G.711

  • Recording Resolutions

    3840 x 2160, 2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 352 x 480, 704 x 240, 352 x 240, 176 x 120

  • Recording Frame Rates

    4K UHD at 7 fps per channel, 4 MP at 15 fps per channel, 3 MP/1080p/720p/960H at 30 fps (NTSC)

  • Recording Resolution Setting

    Per camera for different resolutions

  • Recording Quality Control

    6 levels

  • Recording Schedule

    By hour, by day, by recording mode, by motion, by channel

  • Pre Recording

    Maximum 30 seconds

  • Post Recording

    Maximum 5 minutes

  • Reliability

    Watch-Dog, auto-recovery after power failure

  • Covert Video

    Yes

  • Playback Channel

    1/4/9/16

  • Playback Speed

    Variable, maximum 4x

  • Playback Players

    Backup player

  • Search

    By time/date & motion event

  • Log Search

    Up to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage

  • Audio Play

    Yes

  • HDD Capacity

    1x 8TB (SATA)

  • HDD Included

    1x 3TB

  • Backup Media

    USB flash drive and HDD

  • Backup File Format

    DAV, ASF

  • Cloud Connection

    Lorex Cloud connectivity

  • Supported Operating Systems

    Windows, Mac OS X

  • Remote Software

    Client software for Windows and Mac

  • Email Notification

    Text with snapshot

  • Supported Mobile Devices

    Android, iPad, iPhone

  • System Configuration

    Full setup configuration over network

  • Ports

    Programmable by user

  • Network Protocols

    HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP

  • Network Interface

    10/100M, RJ45

  • Network Bit Rate

    Maximum 64 Mb/s

  • Power Consumption

    Approximately 10 W without HDD

  • Supply Voltage

    100 to 240 VAC, 12 VDC, 3 A, 50/60 Hz

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Humidity

    10 to 90% RH

  • Dimensions

    12.8 x 10 x 2.2" (325 x 255 x 55mm)

  • Weight

    3.3 lb (1.5kg)

Bullet Camera

Jump to...
  • Image Sensor

    8 MP, 1/2" progressive CMOS

  • Video Format

    NTSC, PAL

  • Resolution

    3840 x 2160 at 15 fps

  • Sync System

    Internal

  • S/N Ratio

    >65 dB with AGC turned off

  • Iris

    AES

  • AES Shutter Speed

    1/100,000 to 1/3 (1/4) seconds

  • Minimum Illumination

    Color: 0.01 lux without IR
    B&W: 0 lux with IR

  • Video Output

    MPX

  • Lens

    3.6mm fixed

  • Aperture

    f/1.6

  • Horizontal Field of View (degree)

    87 Degree

  • Termination

    BNC type

  • Number of IR LEDs

    1

  • IR Wavelength

    850 nm

  • Night Vision Range

    Total Darkness: 90' (28m)
    Ambient Lighting (Color Night Vision): 135' (41m)

  • Siren

    Yes

  • Power Requirement

    12 VDC +/-10%

  • Power Consumption

    Maximum 360 mA / 4.3 W

  • Operating Temperature

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Operating Humidity

    <90% RH

  • IP Rating

    IP67

  • Dimensions

    3.2 x 5.9 x 2.8" (80 x 150 x 71mm)

  • Weight

    0.65 lb (0.30kg) (including stand)

  • UPC Code

    695529017082

About Lorex 4K UHD Security System

FEATURED REVIEWS

Satisfied all the needs.

By haileyesus s.

It service is exvellent.

By SB

Outstanding Performance and Picture Quality. Best Product in the market.

Monitor your property like never before with this outstanding 4K Ultra HD security system from Lorex. This top-of-the-line system includes our cutting-edge 16-channel 4K DVR with twelve active deterrence bullet security cameras featuring 4K (8MP) HD resolution. The included weatherproof cameras deliver exceptional image quality day or night, with Color Night Vision in low light conditions and long-range IR night vision in complete darkness. Everything you need for setup is included, giving you professional-grade security protection for your home or business.

Ultra HD security camera
The main reason to purchase a security camera is to capture useful evidence should an incident ever occur on your property. This 4K camera will do just that. It is capable of recording a 4K pixel resolution of 3840 x 2160 - that's 4x the amount of pixels of 1080p. This heightened resolution will produce stunningly detailed video that will leave nothing to the question. It will also allow for greater digital zooms so you can see further into the distance. This camera also comes with a wide 87 Degree angle lens that is perfect for large areas or doorways.

Active Deterrence
Security camera systems are becoming increasingly active when it comes to protecting your property. With this security camera, you get two additional ways to scare off would-be intruders. First, there is a super bright LED that can be customized to always be on, manually activated or triggered by motion. You can also choose a strobe light setting. Second, there is a remote-triggered siren that is designed to stop trespassers right in their tracks. When motion is detected within the sensor range, the system sends an alert to your smartphone, allowing you to remotely access the camera and set off a loud intruder alert to deter crime.

Color Night Vision
The 4K Ultra HD bullet camera provides Color Night Vision in low light conditions (ambient lighting required) up to 135ft (41m). Without the help of external lighting, this camera is still capable of recording full black and white night vision up to 90ft (28m) in total darkness. Smart IR imaging technology and Clear Night Noise Reduction provide superior low light performance and the integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions. See clearly in complete darkness and be confident knowing that detailed images are being recorded even on the darkest nights.

Remote viewing from your mobile with Lorex Cloud
Get set up in an instant and stay connected with the free Lorex Cloud app. Using Lorex Cloud, you can quickly and easily view your security system remotely from your smartphone or tablet. There are no difficult port forwarding or other complicated network setups either. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor or review. You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times.

SmartZone Advanced Detection
Stay alert to the events that matter most with the highly configurable SmartZone Advanced Detection feature. Set the configurable grid to alert you when you have visitors at your door, cars in your driveway, or when the kids come home from school. Motion alerts are sent right to your smartphone or tablet in real-time so you can log in and check out the action.

Outdoor approved
Install these durable 4K security cameras wherever you need them most - indoors or outdoors. They are manufactured to be fully weatherproof (rated IP67 - the highest weather rating available), so you can count on all-season security monitoring that never stops working.

Flexible Recording & No Monthly Fees
Your DVR is capable of working 24/7 without a break. Thankfully, so is the 3TB hard drive within it. Lorex uses security certified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 8TB in size.

Different recording modes
This DVR has three different recording options to suit your needs. You can record footage continuously, during scheduled times, or when movement is detected. These options can be customized with each of your security cameras, which means you can have your most important camera recording all of the time while lower activity cameras can be programmed only to record on motion. To be safe, this DVR includes a pre-recording function that goes along with the motion recording option. This feature will go back to record the five seconds before the motion is detected, so you never have to worry about missing those first vital moments.

DVR Digital Video Recorder
Security DVRs connect to BNC cameras using RG59 coaxial cables and they compress and store video footage captured from security cameras.

24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Lorex 4K UHD Security System Features

  • LHV51163T 4K UHD DVR Features:
  • True 4K Ultra HD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • H.264+ video compression reduces data bandwidth requirements for efficient data storage, reduced network load for easy remote connectivity
  • HDMI output (HDMI cable included) for simple connection to HD TVs
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade over the Internet ensures your system is secure and up to date
  • Lorex Cloud app with 3-Step setup connects all your cameras and systems from any iOS or Android smartphone and tablet
  • Motion push notifications and email alerts
  • Dual streaming to conserve bandwidth
  • Backward compatible with standard analog cameras
  • LBV8541XB 4K Ultra HD Security Camera Features:
  • Get the clearest visual evidence possible with 4K Ultra HD, 4 times the detail of 1080p
  • Motion-activated customizable LED warning light warns off would-be intruders
  • Remote-triggered siren helps deter crime
  • Color Night Vision provides color images (with ambient lighting from porch or street lamps) letting you identify objects and people more accurately than in black & white
  • Night vision range up to 135' (41m) in ambient lighting and 90' (28m) in total darkness
  • Clear Night Noise Reduction and Smart IR for best possible identification and clean, accurate, video clarity in low light
  • Weatherproof for outdoor & indoor installation (IP67 Rated)
  • Extreme temperature performance (-22 Degree - 140 Degree F / -30 Degree - 60 Degree C)
  • 87 Degree horizontal field of view
  • Vandal resistant design with cable pass-through bracket
  • Versatile ceiling or wall mounting options
  • Includes 60ft/18m video/power cable for simple installation

Key Features

  • LHV51163T 4K UHD DVR Highlights:
  • True 4K Ultra HD recording on all cameras
  • 24/7 security-grade pre-installed hard drive
  • Continuous, scheduled, and motion recording
  • LBV8541XB 4K Ultra HD Security Camera Highlights:
  • Get the clearest visual evidence possible with 4K Ultra HD, 4 times the detail of 1080p

What's in the box:

  • LHV51163T 4K UHD DVR with 3TB HDD
  • HDMI Cable
  • Remote Control
  • Power Adapter
  • Mouse
  • Ethernet Cable
  • Quick Start Guide
  • 12x LBV8541XB 4K Ultra HD Security Camera
  • 12x Mounting Kit
  • 12x 60' Extension Cable
  • 12x Power Adapter
  • Lorex 1 Year Limited Warranty
