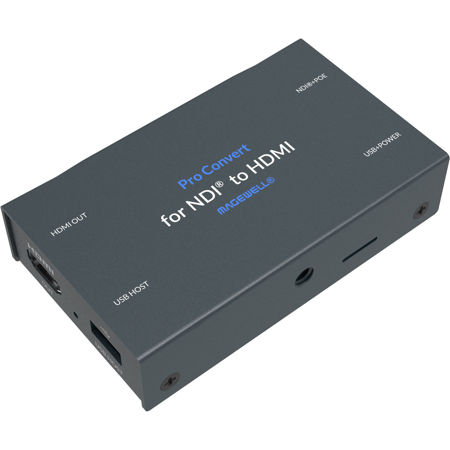

Magewell Pro Convert for NDI Decoder to HDMI
See all Magewell items

Magewell Pro Convert for NDI Decoder to HDMI

SKU: MA64100
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-04-04T12:30:14

Rated 4 out of 5

Easy to setup and use.

This is an excellent product - easy to set up and use. Appears well built and plan on getting more when budget allows. That's the only drawback at this time is the cost, but it appears everyone in this marketplace is priced the same.

ROSE S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Pro Convert Specifications

  • Supported Web Browser

    Microsoft Internet Explorer 11
    Microsoft Edge
    Mozilla Firefox version 61 and above
    Google Chrome version 49 and above
    Apple Safari 11.1 and above
    Opera 55.0.2994.44 and above

  • Output Interfaces

    HDMI:
    DVI-D 1.0
    HDMI 1.4
    HDMI 2.0

  • Storage Interface

    SD Card (functions to be developed)

  • Screw Mounting Hole

    1/4-20 mounting hole

  • Network Interface

    10/100/1000Mbps Ethernet
    IEEE 802.3af PoE

  • USB Interface

    USB2.0 Type B
    5V/2.1A power supply
    USB RNDIS/ECM/
    USB3.0 Type A:
    Support connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

  • Control Buttons

    MENU: press to display the menu, or cycle through the options
    SELECT: press to display the menu, enter current option, or confirm the selection

  • HDMI Output Features

    Support up to 4096x2160 60fps HDMI output
    Support 96KHz 16bits 8-channel audio streams
    Support delivering videos at the preferred video format according to the EDID of the connected monitor

  • NDI Decoding Features

    Support up to 150M pixels/s decoding:
    When receiving 2K NDI stream, the device could decode and convert it to 2K 60fps
    When receiving 4K NDI stream, the device could decode and convert it to 4K 15fps
    Support modifying configurations using the Web UI or the Options menu
    Setting Video OSD composition, including
    Source name & resolution
    Tally indicators
    VU meter
    VU meter scale (dBVU)
    Center cross
    Safe area

  • NDI Decoding Features (Contd)

    Video scaling, frame rate and aspect ratio conversion
    Video color format conversion:
    Auto or manual selection of input color format
    Support YUV BT.601, YUV BT.709 color formats
    Video vertical and mirror flip
    Remote controlling the PTZ device connected to the video source
    Setting audio gain, sample rate and channels

  • NDI Source Name

    Support setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'.
    Support setting board-index, from 0 to F, through the on-board rotary switch

  • Firmware Upgrade

    Support manual update using Web UI

  • LED Indicator

    Power LED status indicator:
    On: power connected
    Off: power unconnected
    Decode LED status indicator:
    On: decoding in progress
    Blinks: decoding error
    Off: NDI source unselected

  • Working Environment

    Operating temperature: 32 to 113 Degree F (0 to 45 Degree C)
    Storage temperature: -4 to 158 Degree F (-20 to 70 Degree C)
    Relative Humidity: 5% to 90% non-condensing

  • Power Consumption

    5V max current: -1.1A
    Max power consumption: -5W

  • Dimensions (L x W x H)

    3.97 x 2.37 x 0.91 (100.9 x 60.2 x 23.3mm)

  • UPC Code

    0814395021232

About Magewell Pro Convert

Pro Convert family of NDI encoders, built on NewTek's extremely popular NDI media-over-IP technology, help users reliably bring traditional video signals into IP-based live production and AV infrastructures. Available in 4K and 1080p60 configurations with a choice of input interfaces, the converters enable users to easily and cost-effectively connect their existing equipment into NDI-enabled networks.

The ultra-compact Pro Convert devices are ideal for both in-studio and portable field use. Value-added features for live production applications include a 1/4"-20 thread for standard camera-mounting accessories, preview and program tally lights, and NDI-based PTZ camera control. The units can be powered by the included AC adapter or via Power over Ethernet (PoE) for further deployment simplicity.

Magewell Pro Convert Features

  • Support for NDI
  • Support for encoding videos
  • Support for encoding embedded audio
  • Support for PoE (Power over Ethernet)
  • Support for plug-and-play
  • Support for Ethernet over USB
  • Support for connection and management of PTZ camera
  • Support for web-based UI remote control

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support for NDI
  • Support for encoding videos
  • Support for encoding embedded audio
  • Support for PoE (Power over Ethernet)
  • Support for plug-and-play
  • Support for Ethernet over USB

What's in the box:

  • Pro Convert for NDI Decoder to HDMI
  • Power Adapter
  • USB Type A to Type B Cable
  • L Bracket
  • Magewell 2 Year Limited Warranty
