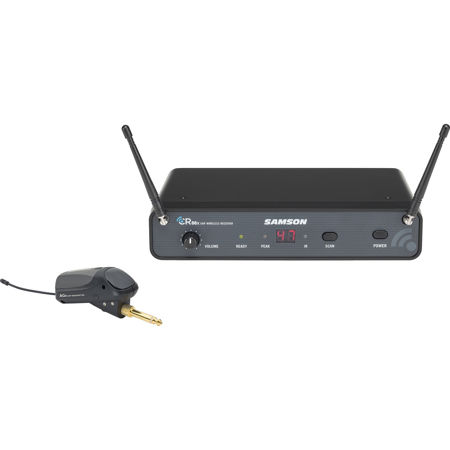

Samson AirLine 88 Guitar UHF Wireless System, Includes 1x CR88 Receiver, 1x AG8 Transmitter, Band D: 542-566 MHz

SKU: SASWC88AG8D

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-10-28T20:52:11

Rated 3 out of 5

Not greatest sound

I just received the unit and am using it. My purpose is not on a stage or performance venue. Only for ease in my small studio. Obviously no cords making it easier and faster to practice and no cords all over the floor to trip folks walking around. NOW, the issue I do not think it matches the sound of a guitar cord. Seems a little hollow and possibly a slight tendency to produce faint echo type sound. Is it acceptable ? Possibly and a little more use and I will now but it is absolutely different that a direct cord input. I am not knocking the unit and telling you not to purchase one, just a little heads up on what " I " noticed. If things change I will be the first one to add to my review. Stores seem to have a trial period so you really have nothing to loose except a few dollars shipping it back. So, give it aa try, You will probably end up keeping it ..It sure is quick and easy.

bruce f.

2016-10-10T11:17:53

Rated 4 out of 5

Waited a long time.

The new AirLine 88 guitar unit was supposed to be out long ago. I was upgrading from a old Concert Series III that I've had since the 90s and was dead set on going with another Samson product. So far I like what I see, but have not yet used it in a live gig. If it works as well as the previous one, I'll be satisfied. I would have kept the old one, but UHF invites more interference. The biggest disappointment so far is the plastic chassis and flimsy plastic rack adapter for half space mounting. Not near as nice as the rugged metal used on previous units. That is the only reason I didn't give 5 stars.

LAN M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samson AirLine 88 Guitar Specifications

  • Frequency Range

    Band D: 542-566 MHz

  • Receiver: Audio Output Level

    Balanced +9dBu, unbalanced +14dBu

  • Receiver: Audio Output Impedance

    Balanced 240Ohms, unbalanced 810Ohms

  • Input Impedance

    1MOhm

  • RF Power

    10 mW EIRP

  • Battery Life

    12 hours from AA battery

  • Working Range

    300' (100m) line-of-sight

  • Dynamic Range

    >100dB A-weighted

  • Signal To Noise

    >90dB

  • Applications

    Electric guitars
    Acoustic-electric guitars
    Bass guitars
    Electric violins
    Accordions

About Samson AirLine 88 Guitar

Get Physical, Go Wireless
Samson's AirLine 88 Guitar system offers true wireless freedom without the hassle of a beltpack or cable. Featuring a plug-in transmitter with a dual-position connector that is designed to fit a variety of guitar jacks, this frequency-agile UHF wireless system provides high definition sound, premium reliability and a 300' operating range for guitars, basses and other stringed instruments.

The Wireless Future
AirLine 88 Guitar continues Samson's longstanding commitment to wireless innovation. Designed to be an extension of your instrument rather than a separate component, the AG8 Guitar Transmitter lets you rule the stage with confidence. It provides IR sync to wirelessly match the receiver and transmitter frequency, an audio Mute switch, battery life LED indicator and up to 12 hours of operation on a single AA battery.

A Multi-Instrumentalist
Can you really use only one guitar Samson doesn't think you should have to make that choice. That's why the AG8 plug-in transmitter was designed with a custom, dual-position connector that can fit both Fender (Stratocaster) and Gibson-style guitar output jacks. AirLine 88 Guitar also provides exceptional low frequency clarity ideal for bass guitars. It's even a great wireless solution for acoustic-electric guitars, electric violins and accordions.

Tour Support
Offering frequency-agile operation, the system's rack mountable CR88 Wireless Receiver provides 16 selectable channels for reliable performance no matter where you are. The receiver's True Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range.

AirLine 88 Guitar System
• Frequency agile UHF wireless system
• 16 operating channels across 24MHz bandwidth
• Up to eight simultaneous systems per frequency band (region dependent)
• Rackmount kit included

CR88 Wireless Receiver
• IR sync wirelessly matches receiver and transmitter frequency
• True Diversity design minimizes dropouts
• Tone key prevents unwanted noise when transmitter is off/out of range
• 1/4-wave antennas
• Half-rack receiver design LED display indicates operating channel Balanced XLR, unbalanced 1/4" outputs

AG8 Guitar Transmitter
• Plugs directly into guitar jack (no beltpack or cable required)
• Dual-position connector fits a variety of guitar jacks
• Offers up to 12 hours of battery life using single AA battery
• Low battery LED indicator
• 300' operating range (line-of-sight)
• Variable Gain control
• Mute switch

Product Documents

User Manual

What's in the box:

  • Samson 1x CR88 Wireless Receiver
  • 1x AG8 Guitar Transmitter
  • Rackmount Kit
  • AC Adapter
  • Samson 2 Year Limited Warranty
