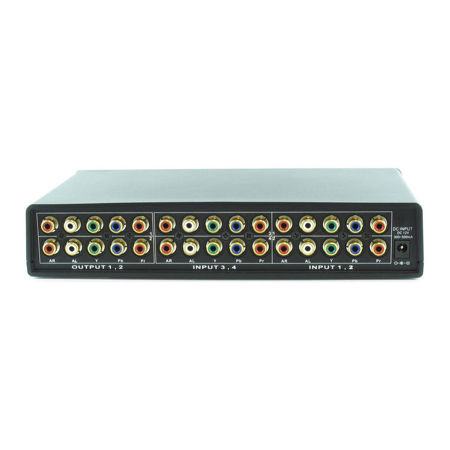

Shinybow 4x2 Component Video/Audio Routing Switcher with IR Remote Control
See all Shinybow items

Shinybow 4x2 Component Video/Audio Routing Switcher with IR Remote Control

SKU: SBSB5460
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-07T14:36:39

Rated 5 out of 5

Well made switch box

Got the silver but preferred the black. It works well, good quality. Very happy with purchase.

STEPHANIE C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shinybow Routing Switcher Specifications

  • Video Input

    4x Component (YPbPr) 1Vpp, 75Ohms, RCA Socket

  • Audio Input

    4x Stereo Audio: L +R 5Vpp, 47kOhms, RCA socket

  • Video Output

    2x Component (YPbPr) 1Vpp, 75Ohms, RCA Socket

  • Audio Output

    2x Stereo Audio: L +R 5Vpp, 47kOhms, RCA socket

  • Video Bandwidth

    250MHz, (-3dB) 200mV p-p, 280MHz, (-3dB) 2Vp-p, R=250MHz, G=250MHz, B=250MHz, Audio=60MHz

  • Audio Bandwidth

    60MHz (-3db) (Audio-Right=60MHz, Audio-left=60MHz)

  • Video Distortion

    < 1.2db

  • Audio Distortion

    < 0.6db

  • Channel Isolation

    >50db

  • Signal to Noise Rate

    >50db

  • Audio Frequency Response

    20Hz - 20KHz

  • All Hostile Crosstalk

    -84db at 5MHz, -54dB at 50Mhz

  • Channel Crosstalk

    -56db at 100Mhz

  • Slew Rate

    1000 Vlus, G=+1, 2VStep

  • Controls

    IR Remote Controller (38KHz), Front panel selection buttons with LED readout

  • Safety Approvals

    CE, FCC, RoHS (2002/95/EC)

  • Power Voltage Input

    DC 12V at 300mA - 500mA

  • Dimensions (W x D x H)

    9.06 x 4.72 x 1.73" / 230.12 x 119.89 x 43.94mm

  • Weight

    About 2.3lbs / 1.04kg (with metal case)

  • UPC Code

    4718091546005

About Shinybow Routing Switcher

FEATURED REVIEWS

Well made switch box

By STEPHANIE C.

Got the silver but preferred the black. It works well, good quality. Very happy with purchase.

SB-5460 is a high speed Video Bandwidth 250MHz, Maximum 300MHz (4) input to (2) output Router Switcher product. It's one of the most innovative Component Video (YPbPr) and Stereo Audio (AR/AL) switching products on the market today. Support 19 inch Ear mount pair part number #1U-300L and MRM is 19 inch 1RU Rack mount type.

It has (4) individual inputs with (2) individual outputs. Because it is a Router Switcher, any input may be routed to output. It completely eliminates the need to constantly move around Component Video and Stereo Audio input and output cables. This Router Switcher is ideally suited for full HD High Definition LCD HDTV for resolution 480p, 720p, 1080i and 1080p or Plasma display monitor applications. Control is provided via front pushbuttons with LED readout or IR remote controller.

Shinybow Routing Switcher Features

  • (4) inputs to (2) outputs Component- Audio Router Switcher
  • Supports HDTV Resolution 480i, 480p, 576p, 720p, 1080i and 1080p
  • Low all hostile crosstalk of -83dB at 5MHz
  • Infrared : IR remote control via Frequency (38KHz)
  • Signals switch including: Component Video YPbPr & Stereo Audio (AR/AL)
  • Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
  • Direct selection channel via front pushbuttons with LED readout
  • Enclosure type : SB-5460M Support 19" Ear & 1RU Rack mountable
  • Supports Lower power consumption full load under 250mA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Shinybow 4x2 Component Video/Audio Routing Switcher
  • IR Remote Control
  • 12V AC/DC Adapter
  • Rack Mount Brackets
  • Users Guide
  • Shinybow 3 Year Parts & Labor Warranty
