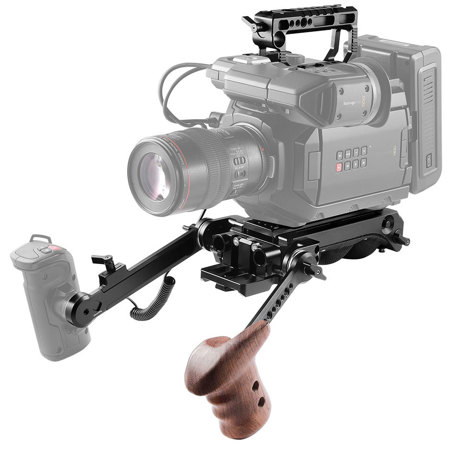

SmallRig Advanced Accessory Kit for Blackmagic URSA Mini and Mini Pro

SmallRig Advanced Accessory Kit 2030 is exclusively designed for Blackmagic URSA Mini/ Mini Pro and original EVF.

The top handle compatible with Top Plate 1958 is equipped with cold shoes, Arri locating hole, 15mm rod clamp and an array of 1/4" threaded holes for DIY operations. It supports handheld shooting. Top Plate 1958 connects the top of camera tightly via three 1/4" threaded holes. The shoulder plate enables 85mm rod height and comes with Arri rosette for Arri rosette extension arm, and it is very convenient for quick release and attachment.

Extension Arm with Arri Rosette 1870 could be extended run-and gun operation. Left Side Wooden Grip 1891 which attaches to Arri Extension Arm 1807 via the rosette also provides a very comfortable experience. The original LANC cable could be replaced by LANC Remote Cable 1824 to relocate the hand grip. Sony VCT-14 shoulder plate, Arri extension arm and wooden grip together support run-and-gun and tripod modes.

- Top Plate -
SmallRig Top Plate for Blackmagic Ursa Mini/Mini Pro 1958 is specially designed for Blackmagic Ursa Mini/Ursa Mini Pro. Original 3/8" screws are used to lock the EVF and top plate tight. EVF rail track matches original EVF and you can slide the EVF up to 50mm. ARRI locating holes could attach ARRI Accessory Mount, like SmallRig 15mm Clamp with ARRI Accessory Mount 3/8"-16 Hole 2001. The top of camera could be locked in 1/4" threaded holes via three 1/4" screws. 1/4"-20 threaded holes could attach SmallRig Top Handle for Blackmagic URSA Mini/ Mini PRO 2000. The hollow slot is designed for weight reduction and sloping design enables EVF to fit the top plate perfectly.

Features
• EVF rail track included to match original EVF
• Threaded holes to attach accessories
• Hollow slot is designed for weight reduction
• Sloping design enables EVF to fit the top plate perfectly

- Top Handle -
The rod clamp on the right side could attach to 15mm rod for more accessories, such as NATO Rail 1910 to connect EVF support and then monitor. M5 wingnut is utilized to lock rod clamp tight. Both ends of handle are equipped with cold shoes, which could attach microphone or attach Magic Arm 1497 for monitor. Arri locating points could attach Anti-rotation Magic Arm Adapter 1978 or attach Magic Arm 2026 for monitor. It can be locked tight with Top Plate 1958 via three 1/4" screws. It is also equipped with an array of 1/4" and 3/8" threaded holes for DIY options. An original EVF screw of Blackmagic URSA Mini is used to lock Top Plate 1958 and original EVF as well. Top Handle 2000 fits original EVF perfectly.

Features
• Rod clamp could be attached to 15mm rod for more accessories.
• Cold shoes could attach microphone or attach Magic Arm 1497 for monitor
• Arri locating points could attach Anti-rotation Magic Arm Adapter 1978 for monitor
• It is equipped with 1/4" and 3/8" threaded holes for DIY options

- Sony VCT-14 Shoulder Plate -
SmallRig Sony VCT-14 Shoulder Plate 1954 is compatible with Sony VCT-14 tripod adapter plates. It could be attached and detached fast, able to support heavy device and keen to get a balance when the camera is mounted on it. It features a Manfrotto 501 quick release plate, and shooting on the shoulder, in the hands and on the tripods could be switched swiftly.

Part of the baseplate extends out beyond the 15mm LWS rod adapter in the front. With rod adapter set back, additional space in the front is achieved to mount follow focus. It enables to position the camera backwards to some degree on the plate, so as to get the balance of your rig directly over your shoulder. The rod adapter is vertically adjustable by 23mm to fit different types of cameras, like FS7/FS7II/FS5/Ursa Mini/Canon C100. What's more, it is equipped with a 15mm LWS rod adapter on the rear side.

Manfrotto 501 quick release plate, which is compatible with Manfrotto 577 quick release adapter could be slid about 80mm forwards or backwards when the wingnut is loose. An ARRI M6 rosette is available to attach accessories and grips, and multiple 1/4"-20 threaded holes on the side could provide additional mounting options. In addition, the shoulder pad is so soft that your shooting will be more pleasant.

Features
• Compatible with Sony VCT-14 tripod adapter plates
• Soft shoulder pad
• Arri M6 rosette to attach accessories and grips
• Front rod adapter is vertically adjustable by 23mm to fit different types of cameras
• Enough space to mount follow focus in the front
• Manfrotto 501 quick release plate could be slid about 80mm forwards or backwards
• 1/4"-20 threaded holes on the right side for additional accessories

- Extension Arm with Arri Rosette -
SmallRig Extension Arm with Arri Rosette 1870 is used for handle extension. The extension arm is adjusted via NATO rail, with the extension range of 168-260mm. The screw can prevent accidental removal. Arri rosette could attach rosette handle, such as SmallRig wooden handle 1941 and Arri Rosette Handle 1810. Arri rosette could attach Sony FS5 Camcorder Baseplate 1827 and other rosette devices as well. In addition, the Arri rosette could be a female and a male head.

Features
• Adjustable extension arm
• Screw is used to prevent accidental removal
• Arri rosette could attach rosette devices
• Arri rosette could be a female and a male head

- Arri Extension Arm -
SmallRig Arri Extension Arm 1807 provides 198mm of extension for ArrI-standard rosette handgrips and other gears with Arri style rosette mount, such as RED, URSA Mini, Sony FS7 or other. It features a M6 male thread on one end and a M6 female thread on the other end. The arm itself has multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories.

Features
• Arri standard rosette (31.8mm diameter), quite solid
• Male M6 thread on one end and female M6 thread on the other end
• 3/8"-16 & 1/4"-20 accessory threads
• 360 Degree angle adjustment

- Left Side Wooden Grip -
SmallRig Left Side Wooden Grip with Arri Rosette 1891 is an extremely handcrafted rosewood grip, which is applied in shoulder mounting system or handheld shooting. You can adjust the position of Arri rosette up and down within a certain range according to your need. It is lightweight and exquisite, very comfortable to be held with the smooth surface.

Features
• Made of handcrafted rosewood, comfortable and attractive
• Applied in handheld shooting and shoulder mounting system
• Adjustable position of Arri rosette up and down within a certain range
• Connected via rosette, more secure

- LANC Remote Cable -
A replacement for the original FS5 LANC cable. Spring cable can be stretched to 110cm max. You could use the handgrip normally while having better access to the remote control.

Features
• 2.5mm Standard male-male jack
• Spring cable can be stretched between 35 to 110cm
