SmallRig Arri Locating Handle Specifications

General

General

Jump to...
  • Grip Type

    Topside Handgrip

Mounting

Jump to...
  • Accessory Mounting

    Multiple x 1/4"-20 Thread
    Multiple x 3/8"-16 Thread
    3 x ARRI Anti-Twist 3/8"-16 Thread

  • Rod Ports

    1x 15 mm Rod Port

  • Shoe Mounting

    3x Cold Shoe

Physical

Jump to...
  • Material

    Aluminum, Steel

  • Dimensions

    4.9 x 2.7 x 1" (124 x 68 x 24.5mm)

  • Weight

    6 oz (172g)

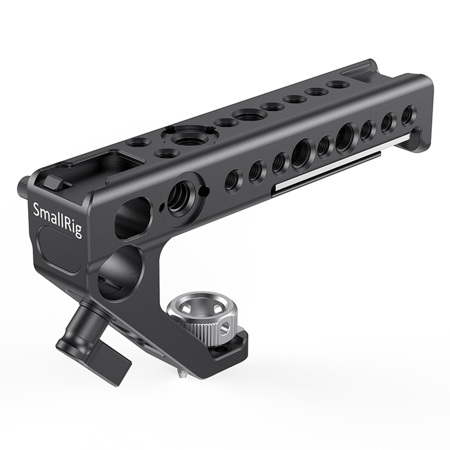

About SmallRig Arri Locating Handle

SmallRig ARRI Locating Handle 2165B is designed to attach to camera or cage via standard ARRI 3/8"-16 screw and provide multiple accessory mounts. The handle secures via the thumbscrew and allows to use the built-in hex spanner for further security to ensure safety. Featuring multiple 1/4"-20, 3/8"-16 and ARRI 3/8"-16 threads for accessories such as Monitor Mount 2294 and 2348.

Integrates with three cold shoe mounts, with one of which is designed with an anti-removal pin allows mounting mic and light. The handle also offers a 15mm rod clamp for rod compatible accessories.

Designer: Yetta White

SmallRig Arri Locating Handle Features

  • Attaches to Select Cages/Supports via ARRI 3/8"-16 Screw
  • 1/4"-20 & 3/8"-16 & ARRI 3/8"-16 Accessory Threads
  • 15mm Rod Clamp
  • Three Built-In Cold Shoe Mounts
  • Built-In Hex Spanner for Further Secure

Key Features

  • Attaches to Select Cages/Supports via ARRI 3/8"-16 Screw
  • 1/4"-20 & 3/8"-16 & ARRI 3/8"-16 Accessory Threads
  • 15mm Rod Clamp
  • Three Built-In Cold Shoe Mounts
  • Built-In Hex Spanner for Further Secure

What's in the box:

  • Arri Locating Handle
  • Allen Wrench
  • SmallRig 2 Year Limited Warranty
