StarTech 4-Port PCI Express SATA Power USB 3.0 Card
See all StarTech items

StarTech 4-Port PCI Express SATA Power USB 3.0 Card, 2 External and 2 Internal Ports

SKU: STEXUSB3S2EI
(13)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2025-05-21T20:00:00

Rated 5 out of 5

Great Product for Intended Use

Needed to add a 20 Pin internal USB header to an Asus Z890M board for a 54 in 1 device on a Windows 11 Pro OS. Didn't need SATA power for good results. Unit worked perfectly with OS WHQL drivers. Took longer to unbox unit than to install. Highly recommend.

BarryL

2023-10-26T20:00:00

Rated 5 out of 5

Easy install great product!

Bought this so I could make full use of my Corsair case's 4 USB 3.0 sockets. Mounted quickly with an easy driver installation!

Deph

2023-03-22T20:00:00

Rated 5 out of 5

The most compatible USB 2.0 card

This card is the best pick when installing Windows 98 on modern hardware. Also works great in Windows 11, my expensive Razer mouse is hooked-up to this card so I can use it in Windows 98 and Windows 11 in a dual boot configuration.

OMORES

2022-10-19T20:00:00

Rated 5 out of 5

Works fine, on PCIe2 x 4 channels is 1 GB transfer

4 PCIE-2 x 4 supports the card with an external, self-powered 4-port USB 3.2 hub just fine, and one front panel USB 3.0 port. The card also has a SATA power connector attached. No dropouts, no compatibility issues with an old Intel Server board running Windows 10. Just works.

Greg T.

2022-10-19T20:00:00

Rated 5 out of 5

Works fine, on PCIe2 x 4 channels is 1 GB transfer

4 PCIE-2 x 4 supports the card with an external, self-powered 4-port USB 3.2 hub just fine, and one front panel USB 3.0 port. The card also has a SATA power connector attached. No dropouts, no compatibility issues with an old Intel Server board running Windows 10. Just works.

Greg x.

2020-03-20T20:00:00

Rated 5 out of 5

Great for external DAC

After installing it instead of motherboard's USB ports - there are stops any lags or music distortion while ASIO streaming. Very clear strong sound stream without artefacts. Really huge improvement for my SCHIIT MODI MULTIBIT.

oplacheno_1

2019-12-28T19:00:00

Rated 1 out of 5

Not wirking on Win 10(((

I Bought it one week ago, and can not install it in my lenovo shark bay with Win 10 - system dont see it at all

oplacheno

2019-10-06T20:00:00

Rated 2 out of 5

Detects as USB Type-C & Requires SATA power cable

I bought this because I needed to have an internal USB-A port that was inaccessible to users. But on every boot there is a POST error indicating "USB Type-C Card Detection Error" and that "cable is required between 12C on card and USB-C on the motherboard"... but this isn't a Type-C card (its type-A). The computer and port work fine once you continue past the error screen & reboot again. The only extra port on it is the SATA power cable. So when I get one of those I'll update to see if that fixes it.

Sri_N

2019-01-20T19:00:00

Rated 5 out of 5

Has been working great for 2 years.

Bought 2 years ago for my home built - Windows 10 Home - computer (AMD FX CPU/Gigabyte MB), to add extra USB ports. Have had no issues thus far.

Mathew

2017-08-15T20:00:00

Rated 2 out of 5

Wont work in Dell Servers

Trying to use for USB 3.1 drive dock on a backup server. The card needs power, no power leads on most Dell servers for aux power to pcie cards. The Startech USB 3.0 pcie card did not need aux power if the drive was independently powered. Request a 3.1 card that does not need aux power, even if that violates the 3.1 standard.

BillB50

2017-05-26T20:00:00

Rated 5 out of 5

Exactly what we we're needing

I am one of the " IT " guys Orthopedic Appliance Company here in Asheville NC. Our Dell server has those 2.0 USB ports. Backups being that they are encrypted we're taking 8hrs+/-. Even though backup we're scheduled after hours, it would run into the following day by a few hrs. Ordered the 3.0+ Pcie add-on card, and now complete backups are taking less than 5 and are completed before the staff returned the following morning and are able to be more productive because the local server isn't being bogged down from backups running?. 18 staff members running pervasive database applications along with remote desktop really put a strain on Everything. Best money spent.

Lewis

2017-05-10T20:00:00

Rated 4 out of 5

mostly works

The Technical Specifications are poorly written. This is physically an x4 PCie card, but it is electrically PCIe 2.0 x2. Startech should update all their PCIe card Technical Specifications with specific information like that instead of the vague and useless info currently provided. The problem with x2 is that some old computer chipsets or CPUs may treat that as x1 which would half the performance, or quarter the performance if it is a PCIe 1.0 slot. You can find other cards that use a switch chip (x4 upstream) to connect both USB and eSATA. Such a card will perform better in a x4 PCIe 1.0 slot or a slot that does not support x2. The ASM 1142 chip has a problem where it reports the connection status of my device as 5Gb/sec instead of 10 Gb/sec but the device transfers data at faster than 5 Gb/sec anyway. Sometimes I have to reconnect the device if it reports as 480 Mb/sec (USB 2.0). USB 3.1 gen 2 from an Intel Thunderbolt 3 chip does not have those problems but no-one makes a USB PCIe card using that chip.

joevt2

2017-03-18T20:00:00

Rated 1 out of 5

Great feature if I can get it to work

I wanted to add USB 3 to my HP Z800 with Win 7 Pro 64 bit but it is not working correctly. Confused as it should straight out of the box.

Pierre

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech USB Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Standard Profile (LP bracket incl.)

  • Chipset ID

    Renesas / NEC - uPD720201

  • Industry Standards

    USB 3.0 Specification Rev. 1.0
    PCI Express Base Specification Rev. 2.0
    Intel xHCI Specification Rev. 1.0

  • Interface

    USB 3.0

  • Port Style

    Integrated on Card

  • Ports

    4

  • Cable Length

    9.8' / 2.99m

  • Maximum Data Transfer Rate

    5 Gbps

  • MTBF

    1,920,042 Hours

  • Type and Rate

    USB 3.0 - 5 Gbit/s

  • UASP Support

    Yes

  • Connector Type(s)

    1 - PCI Express x1 Male

  • External Ports

    2 - USB Type-A (9 pin) USB 3.0 Female

  • Internal Ports

    1 - SATA Power (15 pin) Plug
    2 - IDC (20 pin; USB 3.0; Motherboard Header) Receptacle

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
    Windows Server 2012, 2008 R2
    Linux 2.6.31 and later (tested up to 3.5)

  • System and Cable Requirements

    PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
    SATA power connector (recommended, but optional)

  • Humidity

    20-80% RH

  • Operating Temperature

    5 to 50 deg. C / 41 to 122 deg. F

  • Storage Temperature

    -25 to 70 deg. C / -13 to 158 deg. F

  • Certifications

    RoHS Complaint
    CE
    FC

  • Dimensions (H x L x W)

    4.7 x 3.6 x 0.7" / 11.94 x 9.14 x 1.78cm

  • Weight

    1.9oz / 53.86g

  • UPC Code

    065030860338

About StarTech USB Card

FEATURED REVIEWS

Has been working great for 2 years.

By Mathew

Bought 2 years ago for my home built - Windows 10 Home - computer (AMD FX CPU/Gigabyte MB), to add extra USB ports. Have had no issues thus far.

Great Product for Intended Use

By BarryL

Needed to add a 20 Pin internal USB header to an Asus Z890M board for a 54 in 1 device on a Windows 11 Pro OS. Didn't need SATA power for good results. Unit worked perfectly with OS WHQL drivers. Took longer to unbox unit than to install. Highly recommend.

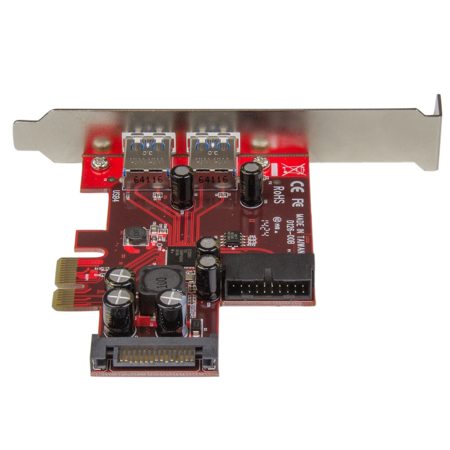

This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.

• Flexibility to connect external and internal USB 3.0 devices and supports UASP
• Fast, hassle-free setup with Windows 8 native support and fits into standard or low-profile systems
• Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
• Transfer large files at lightning speed, with throughput support up to 5 Gbps
• Optional SATA power connector provides up to 900mA per port for high-power USB devices
• PCIe x1 interface, compliant with PCI Express 2.0 specifications
• Configured with full-profile bracket, half-height bracket included

Flexible and Convenient Port Design
With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades. For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.

Simple Installation and Supports Older Devices
The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed. Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.

Effective USB 3.0 Performance Enhanced by UASP
This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure. The PEXUSB3S2EI is ruggedly built for reliable USB 3.0 device connections and is backed by a StarTech2-year warranty and free lifetime technical support.

Applications
• Install as a vital hardware component when building your own computer or when upgrading your case
• Connect external hard drives, tablets, smartphones, CD/DVD drives, MP3 players, printers, scanners, webcams and game controllers to your computer

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • StarTech 4-Port PCI Express SATA Power USB 3.0 Card
  • Low-Profile Bracket
  • Driver CD
  • Instruction Manual
  • StarTech 2 Year Warranty
