StarTech 4x SATA Power Splitter Adapter Cable, 18 AWG
See all StarTech items

StarTech 4x SATA Power Splitter Adapter Cable, 18 AWG

SKU: STPYO4SATA
(8)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2015-05-08T20:00:00

Rated 5 out of 5

Great cable! But...

I plugged this into my four SSD drives and it worked great! ... Except my power supply is on the bottom of my case, while not a big deal, I had to run my cable to the top of my case as this cable runs from bottom to top and the power connecter is facing the top of the case. If I had a top mounted PSU this wouldn't be an issue, but for those with bottom mounted PSU's you might have to configure your wiring a bit differently. Maybe (hint hint) Startech could make one for us bottom feeders! :)

Customer

StarTech 4x SATA Power Splitter Adapter Cable, 18 AWG Specifications

  • Connector A

    1 - SATA Power (15 pin) Plug

  • Connector B

    4 - SATA Power (15 pin) Receptacle

  • Cable Length

    15.7" / 39.88cm

  • Wire Gauge

    18 AWG

  • RoHS Complaint

    Yes

  • Dimensions (H x L x W)

    0.6 x 15.7 x 1.1" / 1.52 x 39.88 x 2.79cm

  • Weight

    1.2oz / 34.02g

  • UPC Code

    065030846981

About StarTech 4x SATA Power Splitter Adapter Cable, 18 AWG

FEATURED REVIEWS

Great cable! But...

By Customer

I plugged this into my four SSD drives and it worked great! ... Except my power supply is on the bottom of my case, while not a big deal, I had to run my cable to the top of my case as this cable runs from bottom to top and the power connecter is facing the top of the case. If I had a top mounted PSU this wouldn't be an issue, but for those with bottom mounted PSU's you might have to configure your wiring a bit differently. Maybe (hint hint) Startech could make one for us bottom feeders! :)

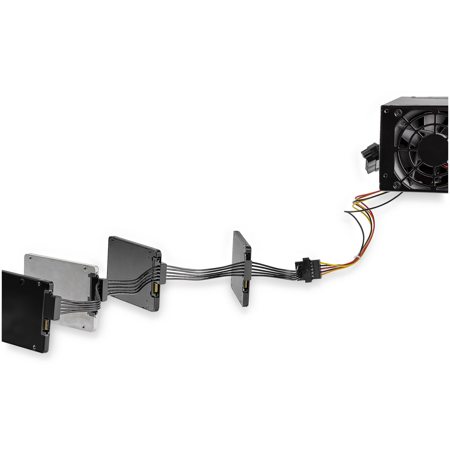

The PYO4SATA SATA power splitter cable (1-to-4) features a SATA male power connector that connects to a single computer power supply SATA connector and breaks out into four SATA female power connectors. The SATA power splitter cable overcomes the limit of the number of SATA drives that can be installed in the system, based on available PSU power connections and eliminates the cost of having to upgrade the power supply to accommodate additional SATA drives.

• 1x SATA Power Plug to 4x SATA Power Receptacle
• Durable construction

Advantage
• Offers maximum system expandability without having to upgrade a computer power supply for the sake of SATA (power) connections
• Easy to use and install
• Backed by StarTech lifetime warranty

Applications
Power up to 4 SATA drives from a single Serial ATA power supply connection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • StarTech 4x SATA Power Splitter Adapter Cable
  • StarTech Lifetime Warranty
