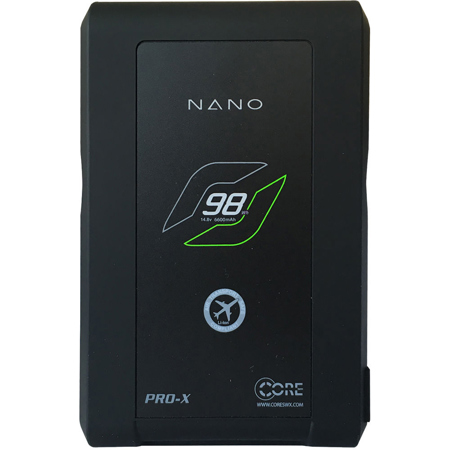

Core SWX Nano 6.6Ah Lithium Ion V-Mount Battery Brick with 4 LED Power Gauge (98 Wh, 14.8-Volts)
SKU: SXCOREN98S
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Core SWX Nano Battery Brick
FEATURED REVIEWS
Love these batteries, just wish fan on charger was not so loud.
These batteries are half the size of normal Core SWX and very well built. Feel solid and have been working great. The charger is compact and feels very durable. Only complaint is that the fan on the charger is very loud. Meaning it always has to be in a different room from where you are recording audio.
Accurate Battery Life Percentage Reading on RED Dragon X
Accurate Battery Life Percentage Reading on RED Dragon X.
New for 2017, the Core Nano series of Lithium ion battery packs replace the ever popular XPL90 series, which was the "go-to" battery solution across all professional video segments for nearly a decade. The packs offer the first economical solution that is "smart," allowing SMBUS/AN % data to present on the EVFs of most industry cameras and the AG packs are Anton/Bauer charger compatible. The series features a much slimmer design, consistent with the Hypercore Slim series. The packs are perfect for the majority of camera powering applications with a maximum load handling of 8A. Given the slim design, these packs can be also be used when powering cameras on handheld gimbals and UAVs.
The 14.8v, 98wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification. The Core Nano packs feature an on-board unregulated P-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices. A rubberized, shock absorbent shell casing is used to provide the lightweight pack with greater protection against the rigors of everyday production. The Core Nano packs feature a 4-LED State of Charge power gauge.
The Core Nano 98S V-mount battery, offers SMBUS data communication, which communicates with Sony, BMD, etc. and RED DSMC2 cameras, delivering the exact percentage of remaining capacity to the camera's VF/LCD.
