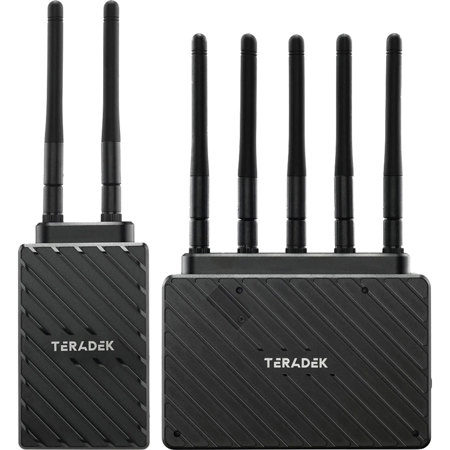

Teradek Bolt 4K LT 750 HDMI Wireless Transmitter and Receiver Kit, 750' Range

SKU: TE102205

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2023-04-20T08:36:14

Rated 5 out of 5

Just what we needed

This was our church's first venture into wireless video. The Teradek Bolt was the perfect fit for us. Our cam op can run around the entire sanctuary and have zero video loss or latency. You really can't beat this without spending significantly more money.

NATHAN P.

2022-07-17T09:29:22

Rated 5 out of 5

Industry?s Standard

As you?d expect from Teradek, excellent connectivity and reliability. 0 latency is really there. It?s just the industry?s standard.

TONY V.

2021-11-17T00:52:19

Rated 5 out of 5

Would buy again

No more downtimes. Bolt 2000 was killing my vibes

Rodgers G.

2021-10-19T06:22:14

Rated 5 out of 5

Worthy upgrade

It is finally the perfect Teradek for me

Rodgers G.

2021-06-22T08:49:41

Rated 5 out of 5

Teradek Bolt 4K

Best Wireless No Delay!!!!!!

YASER A.

2021-06-01T13:18:41

Rated 5 out of 5

Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter

Great Wireless Transmitter. Shoot in the desert! Was flawless. Great addition to the equipment we have! Thankyou!

ANNA S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Bolt 4K LT Specifications

Transmitter: Video

Transmitter: Video

Jump to...
  • Video Inputs

    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    YCbCr 4:2:2 10-Bit
    RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

Transmitter: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/60
    576p50
    480i (NTSC)/576i (PAL)

Transmitter: Video Processing

Jump to...
  • Video Compression

    Visually lossless

Transmitter: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Transmitter: Inputs

Jump to...
  • Audio Input

    Embedded HDMI Audio Input (2 channel)

Transmitter: Interfaces

Jump to...
  • Configuration Interfaces

    OSD Screen with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade Via Micro-USB
    5-pin Locking Connecter CCU

  • Bluetooth

    2.4 GHz

Transmitter: Network

Jump to...
  • Antennas

    2x External 2dBi antennas (included)

  • Wireless

    DFS Frequencies: 5.270 - 5.670 GHz
    Non-DFS Frequencies: 5.190 - 5.230 GHz and 5.755 - 5.795 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    19 dbm EIRP (2x external 2dBi antennas; <80mW transmit power)

  • Range

    Up to 750' (228.6m) line of sight

  • Unicast Multicast

    TX transmits video to up to 6 receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Transmitter: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connecter 6-28 VDC

  • Battery

    None

  • Nominal Power Consumption

    9 Watts

Transmitter: Environmental

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

Transmitter: Physical

Jump to...
  • Material

    Milled aluminum (chassis), regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4-20" holes

  • Dimensions

    2.4 x 4.1 x 1.3" (60 x 103 x 33mm)

  • Weight

    7.3 oz (206g)

Receiver: Video

Jump to...
  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    YCbCr 4:2:2 10-Bit
    RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

Receiver: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/60
    576p50
    480i (NTSC)/576i (PAL)

Receiver: Video Processing

Jump to...
  • Video Compression

    Visually lossless

  • Test Pattern Generator Support

    Yes

Receiver: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Receiver: Outputs

Jump to...
  • Audio Output

    Embedded HDMI Audio Input (2 channel)

Receiver: Interfaces

Jump to...
  • Configuration Interfaces

    OSD Screen with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade Via Micro-USB
    5-pin Locking Connecter CCU

  • Bluetooth

    2.4 GHz

Receiver: Network

Jump to...
  • Antennas

    5x External 2dBi antennas (included)

  • Wireless

    DFS Frequencies: 5.270 - 5.670 GHz
    Non-DFS Frequencies: 5.190 - 5.230 GHz and 5.755 - 5.795 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    17 dbm EIRP (1x external 2dBi antenna; <51mW transmit power)

  • Range

    Up to 750' (228.6m) line of sight

  • Unicast Multicast

    Pair up to 4 transmitters per receiver

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Receiver: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connecter 6-28 VDC

  • Battery

    None

  • Nominal Power Consumption

    11 Watts

Receiver: Environmental

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

Receiver: Physical

Jump to...
  • Material

    Milled aluminum (chassis), regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4-20" holes

  • Dimensions

    4.8 x 3.7 x 1" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

General

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • UPC Code

    818264027950

About Teradek Bolt 4K LT

FEATURED REVIEWS

Just what we needed

By NATHAN P.

This was our church's first venture into wireless video. The Teradek Bolt was the perfect fit for us. Our cam op can run around the entire sanctuary and have zero video loss or latency. You really can't beat this without spending significantly more money.

Industry?s Standard

By TONY V.

As you?d expect from Teradek, excellent connectivity and reliability. 0 latency is really there. It?s just the industry?s standard.

Discover True Clarity: Teradek Bolt 4K LT HDMI Wireless Solution

Dive into the realm of pristine visual transmission with the Teradek Bolt 4K LT HDMI Transmitter/Receiver Kit. With a stunning range reaching up to 750', this kit promises not just quality but longevity in performance.

Wireless Transmission Excellence: Up to 750' Range with 4K30 Video
Explore the wonders of lossless HD video transmission at distances as vast as 750' line of sight. With capabilities to wirelessly transmit up to 4K30 video featuring 10-bit 4:2:2 HDR support, each frame ensures crisp, clear, and vibrant colors that bring your visual content to life.

Expanding Your Production: The Bolt 4K Ecosystem Compatibility
The Bolt 4K LT HDMI is part of the Bolt 4K ecosystem. It offers more than just HDMI functionality and is designed for compatibility with the larger Bolt 4K product line. As user requirements change, this equipment remains compatible and up-to-date.

Packed with Advanced Features: Bolt 4K LT HDMI
Armed with the groundbreaking BB3 Wireless Chipset, this kit stands out in delivering 4K HDR transmission, unmatched image quality across all resolutions, and fortified link stability. Whether you're transmitting audio, timecode, or simply ensuring your connection is robust, the Bolt 4K LT HDMI Kit has got you covered. And with the ability to pair with up to 6 receivers, flexibility is in your hands.

Designed for Precision and Real-time Response
The crucial moments on set demand precise focus. Ensure you never miss a beat with zero image-delay. Paired with features like an HDMI loop out, this kit is built for the professionals demanding accuracy and instant feedback.

Robust Build Meets Intuitive Usability
Housed within a ruggedized aluminum-unibody chassis, the Bolt 4K LT HDMI Kit promises durability while ensuring stability in connections and rapid reconnection times. Beyond its build, users will appreciate the intuitive setup, facilitated by the Bolt Manager App. Coupled with enhanced AES-256 encryption, your transmissions remain secure from unauthorized intrusions.

Aircraft-Grade Aluminum Construction: Lightweight and Versatile Mounting
Constructed from aircraft-grade aluminum, this kit is both lightweight and robust, tailored for field use. With multiple mounting points, including 1/4-20 and M3, it's a fit for various setups. Truly, the Bolt 4K LT HDMI Kit is a testament to Teradek's commitment to serving filmmakers and creators desiring professional-grade performance that's both reliable and dynamic.

Incorporate this exquisite piece of tech into your setup and redefine the boundaries of wireless transmission.

Teradek Bolt 4K LT Features

  • Delivers 10-bit 4K30p HDR video across a range of up to 750 feet
  • Guarantees zero-delay in wireless video transmission
  • Both transmitter and receiver come with HDMI 2.1 ports
  • Includes the added advantage of HDMI Loop Out
  • Comprehensive set comprising Bolt LT HDMI Transmitter & Receiver
  • Offers a line-of-sight range stretching up to 750 feet for transmission
  • Assures a no-delay 10-bit 4:2:2 HDR video support up to 4K30 resolution
  • Fully compatible with the entire Bolt 4K series, ensuring longevity
  • Features a powerful BB3 Wireless Chipset for superior 4K HDR streaming
  • Robust aluminum-unibody chassis ensuring durability
  • Advanced AES-256 encryption for enhanced security
  • Integrated with the Bolt Manager App for easy setup and intuitive pairing

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • 4K30p HDR video, up to 750-foot range
  • Absolute zero-delay wireless streaming
  • Comprehensive HDMI 2.1 inputs/outputs
  • Part of the broader Bolt 4K series
  • BB3 Chipset for enhanced 4K streaming
  • Durable aluminum-unibody design

What's in the box:

  • Bolt 4K LT 750 HDMI Wireless Transmitter
  • Bolt 4K LT 750 HDMI Wireless Receiver
  • Hot Shoe Adapter
  • Lightstand Adapter 1/4-20"
  • 2-Pin Connecter to PowerTap Cable (18")
  • USB 2.0 Type A Male to USB Type C Male Cable (1m)
  • 2x Ultra Thin HDMI Male Type A & HDMI Male Type A Cable (18")
  • PSU 2-Pin Connecter to 18W AC Adapter Cable (6')
  • 7x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)
  • User Manual
  • Teradek 1 Year Limited Warranty
