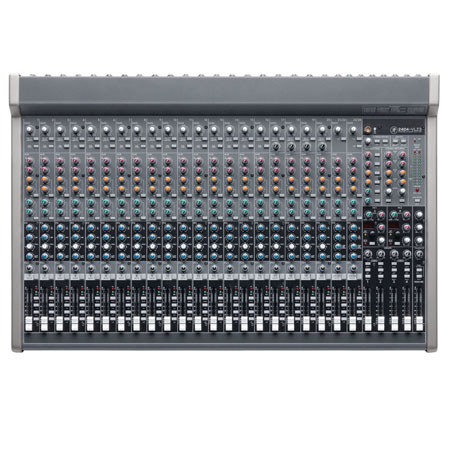

Mackie 24-Channel/4-Bus Premium SR Console
See all Mackie items

Mackie 24-Channel/4-Bus Premium SR Console , 4x2 24-Bit USB Interface, 20 XDR2 Mic Channels

SKU: VDMA2404VLZ3

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Mackie 24-Channel/4-Bus Premium SR Console Specifications

  • Main Mix fader

    -87.0 dBu (-91.0 dB Signal to Noise Ratio, ref +4 dBu)

  • Frequency Response

    +0 dB / -1 dB

  • Distortion (THD+N)

    < 0.001%

  • Attenuation and Crosstalk

    -88 dBu

  • Common Mode Rejection Ratio

    Better than -70 dB

  • Maximum Levels: Mic In

    +21 dBu

  • Maximum Levels: All other inputs

    +21 dBu

  • Maximum Levels: Main Mix XLR Out

    +27 dBu

  • Maximum Levels: All other outputs

    +21 dBu

  • Band Equalization: Low

    ±15 dB at 80 Hz

  • Band Equalization: Mid

    ±15 dB sweep 100 Hz-8 kHz

  • Band Equalization: High

    ±15 dB at 12 kHz

  • Band Equalization: Low Cut Filter

    18 dB/octave, -3 dB at 100 Hz

  • Band Equalization: USB

    Specification

  • Band Equalization: Format

    USB 1.1

  • Band Equalization: I/O

    Stereo input, 4 channel output

  • Band Equalization: A/D/A

    24 bit, 44.1 kHz / 48 kHz

  • Input/output Impedance: Mic In

    2.7kohms

  • Input/output Impedance: Ch Insert Return

    2.5kohms

  • Input/output Impedance: All other inputs

    10 kohms greater

  • Input/output Impedance: Tape Out

    < 10ohms

  • Input/output Impedance All other outputs

    120ohms

  • Power Consumption

    65 Watts (3204-VLZ3)

  • Universal AC Power Supply

    100 - 240 VAC, 50 - 60 Hz

  • Operating Temperature

    0-40 deg. C / 32-104 deg. F

  • Dimensions (H x D x W)

    2 (front)/6 (rear) x 19.1 x 29.4in / 50.8 (front)/153 (rear) x 486 x 748mm

  • Weight

    31lbs / 14.1kg

  • Software Requirements: PC

    Microsoft Windows 7 32 / 64, Vista 32 / 64 RTM or XP SP 2
    Pentium 4, Celeron or Athlon XP processor
    512MB RAM

  • Software Requirements: Mac

    Mac OS X 10.4.11 - 10.6.4
    G4 processor
    512MB RAM

  • UPC Code

    663961030075

About Mackie 24-Channel/4-Bus Premium SR Console

The 24-channel Mackie 2404-VLZ3 combines VLZ3 low-noise, high-headroom technology with increased channel count and superior processing that's perfect for real-world live gigs. 20 XDR2 mic channels, each with 3-band, sweepable mid EQ, offer more clean and useable gain than the competition. Create great-sounding, professional mixes using dedicated channel and subgroup compression, dual RMFX+ effects processors and true 4-bus architecture. You can even connect to your laptop to record the show, stream house music or use your favorite plug-in live using the built-in 4x2 USB interface. Define your sound, create your mix and record the whole show with the 2404-VLZ3.

Mackie 24-Channel/4-Bus Premium SR Console Features

  • 24-channel 4-bus mixer with proven VLZ3 low-noise, high-headroom design
  • 20 studio-grade XDR2 mic preamps: 130dB dynamic range, Distortion under 0.0007% (20Hz-20kHz), Phantom power for studio condenser mics
  • 4 subgroups, featuring dedicated compressors for total dynamic control
  • Dedicated inline channel compression for critical inputs (ch. 17-20)
  • 3-band active EQ with carefully selected frequency ranges for maximum flexibility
  • Dual 32-bit RMFX+ processors featuring 24 "Gig Ready", useable reverbs, choruses, and tap delay for live applications
  • Integrated 4x2 24-bit USB interface
  • Stream subgroups or master L/R to your PC or Mac for recording
  • Use your favorite plug-in live via auxes 5/6
  • Convenient stereo return to mains for music playback or return to channel and implement EQ, auxes and more
  • 6 aux sends with inserts, pre/post fader and internal/external FX send options available
  • 60mm long-wearing logarithmic-taper faders
  • All steel, classic Mackie "Built-Like-A-Tank" chassis design
  • Smallest footprint in class saves precious desk space
  • Lightweight and portable
  • Includes Tracktion 3 Music Production Software for Mac or PC
