VocoPro UDH-Dual-B UHF Digital Hybrid Wireless Mic System, Frequency Band: B4
See all VocoPro items

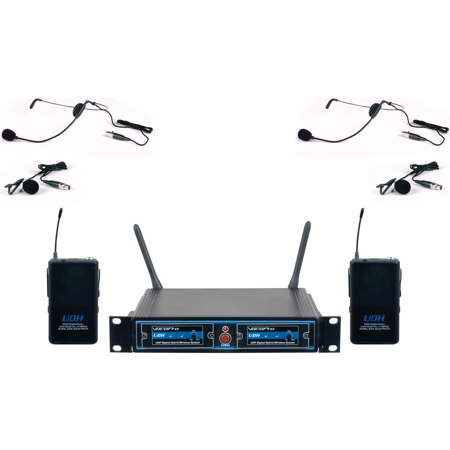

VocoPro UDH-Dual-B UHF Digital Hybrid Wireless Microphone System with UDH Receiver, 2x UDH Bodypack Transmitters, 2x Lavalier Microphones, 2x Headset Microphones, 2x Antennas, Frequency Band: B4 (919.0-924.2)

SKU: VPUDHDUALB4
(5)

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the range of the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System?

The system operates with a range of up to 250 feet outdoors and 150 feet indoors.

What components are included in the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System package?

The package includes a UDH receiver, two UDH bodypack transmitters, two lavalier microphones, two headset microphones, and two antennas.

What frequency band does the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System operate on?

The system operates on the B4 frequency band (919.0-924.2 MHz).

What is the advantage of the digital signal processing in the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System?

The digital signal processing (DSP) enhances reliability by simplifying the audio processing chain. It also reduces background system noise for clear sound transmission.

Is the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System suitable for professional use?

Yes, the system is designed for professional audio and video applications such as live performances, events, and broadcasts.

Reviews about this item

Review Summary

2022-01-02T09:11:45

Rated 5 out of 5

Cordless

Needed ?? but not receiver

ANDREW B.

2018-03-27T11:31:08

Rated 5 out of 5

GREAT PIECE OF ELECTRONIC EQUIPMENT.

I WOULD RECOMMEND THIS PRODUCT THAT IS LOOKING FOR RELIABLE SOUND. GREAT OUTPUT OF SOUND.

Alan L.

2017-08-14T11:49:57

Rated 4 out of 5

Work great

Work great have bought to sets, only con clips on mike packs are a piece of junk

Edward G.

2017-07-30T12:55:51

Rated 4 out of 5

Good system for price

Good for price paid clips on battery packs are junk but mike work good

Edward G.

2017-06-28T11:44:48

Rated 5 out of 5

Very Good Wireless for Wedding Ceremony

I purchased this unit, as I was hired to not only DJ the wedding reception, but I was also going to provide audio for a wedding ceremony. The couple got married outdoors. I mic'ed the pastor and the groom. Sound was pretty solid. I had put fresh batteries in before miking them. The pastor's mic dropped a couple of times, but all in all they were solid. I used the headset mic while I DJ'ed and it was great to go hands free. I didn't want to drop a lot of money on a bigger name brand unit, since this is just the first time I've had to do this. But, after using the VocoPro, I think I'll be ready to go next time. You just can't beat the price. I was in fairly close proximity from the body packs to the receive unit (about 25') so I can't give an accurate guess on what the range would be. This was my first purchase through Adorama. Quick delivery and great communication through the whole purchase process.

Mark S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

VocoPro UDH-Dual-B Specifications

  • Channel Frequency

    B4

  • Switch / Buttons

    Power on/off

  • LED Indicators

    Power LED: Indicates battery level
    Solid Green: Battery level is good to use
    Blinking Red: Batteries are low and require changing

  • Input Connector

    Mini-XLR jack

  • Rear Panel Connectors

    Power in
    XLR channel 1 out
    XLR channel 2 out
    1/4" unbalanced out

  • Gain

    Controls overall output of bodypack

  • Batteries & Power

    2x AA alkaline and rechargeable

  • Dimensions (W x H x D)

    8.62 x 1.56 x 6.75" / 21.89 x 3.96 x 17.15cm

About VocoPro UDH-Dual-B

Where clarity and versatility meet, the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System stands out as a revolutionary solution for professional audio needs. This innovative system harnesses the power of digital signal processing (DSP) alongside robust analog UHF transmission to deliver high-quality, crystal-clear sound with minimal background noise. The DSP chip simplifies the audio processing chain, enhancing reliability while keeping the system cost-effective.

The UDH-Dual-B system includes a rack-mountable UDH receiver and two UDH bodypack transmitters, ensuring a seamless and stable connection for your audio transmission needs. The package also features two lavalier microphones and two headset microphones, offering flexibility for various speaking and performance scenarios. Whether you're capturing the vows at an outdoor wedding or amplifying a keynote speaker at a conference, these microphones provide professional-grade sound fidelity.

Equipped with two antennas and operating on the B4 frequency band (919.0-924.2 MHz), the system is engineered to maintain a strong signal with a range of up to 250 feet outdoors and 150 feet indoors. This makes it an ideal choice for event coordinators, audio technicians, and live performers seeking a reliable wireless microphone setup.

The UDH-Dual-B system's advanced features and durable construction make it a smart investment for those who require a professional, high-quality audio solution without the premium price tag. Its digital hybrid technology ensures that users experience fewer dropouts and a more stable connection, making it a reliable choice for any event or performance.

Choose the UDH-Dual-B UHF Digital Hybrid Wireless Microphone System for its exceptional performance, reliability, and the flexibility to adapt to any professional audio or video application. Experience the future of sound transmission with this advanced, yet user-friendly wireless microphone system.

VocoPro UDH-Dual-B Features

  • Includes 2 Bodypack Transmitters with 2 Headset mics and 2 Lapel mics
  • All-in-one wireless Mic-On-IC has a pre-amp, compressor and expander onboard
  • Uses proven analog UHF transmission technology for better range and reliability
  • Plug and Play design requires no microphone syncing set-up
  • Quickly scale up to 4 microphone channels by attaching an additional UDH receiver with no tools required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • UHF Digital Hybrid Wireless Microphone System for professional-grade audio transmission
  • Utilizes digital signal processing (DSP) and analog UHF transmission for clear, reliable sound
  • Features two antennas for stable and uninterrupted connection

What's in the box:

  • VocoPro UDH Receiver
  • 2x UDH Bodypack Transmitters
  • 2x Lavalier Microphones
  • 2x Headset Microphones
  • 2x Rack Ears
  • 2x Antennas
  • AC Power Adapter
  • 1/4 to 1/4 " Mic Cable
  • VocoPro 1 Year Limited Warranty
