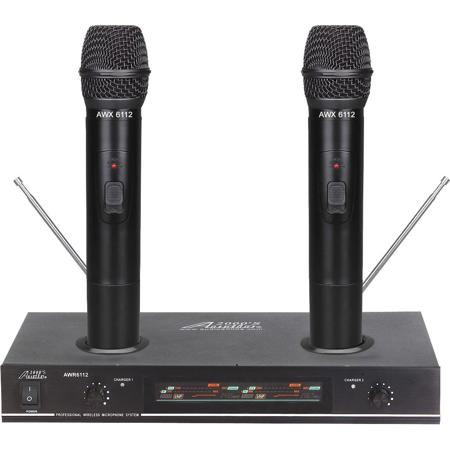

Audio 2000s AWM6112 Plug-In-N-Recharge Dual-Channel VHF Wireless Handheld Microphone System with LCD Color Display, Includes Receiver, 2x Handheld Microphone, Balanced and Unbalanced Audio Outputs

SKU: A2AAWM6112

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

John G : I have asked several times and have not received an answer. I have the system and want to know if I can purchase one mic as one soed not work. Will another mic work with the system?
John G : I have the system. Can I purchase one mic as one mic does not work?.
John G : I have the system. Can I purchase one mic as one mic does not work?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio 2000s AWM6112 Specifications

Receiver

Receiver

Jump to...
  • Carrier Frequency Range

    VHF Band

  • Frequency Stability

    +/- 0.005%

  • Receiving Sensitivity

    97 dBm

  • S/N Ratio

    70dB

  • T.H.D.

    < 1%

  • Audio Output

    1/4" and XLR (0 - 500mV @ 4.7Kohms)

  • Dimensions

    12.8 x 2.1 x 7.9" (326 x 53 x 200mm)

Transmitter

Jump to...
  • Carrier Frequency Range

    VHF Band

  • Frequency Stability

    +/- 0.005%

  • Modulation

    Frequency Modulation (FM)

  • Modulation Depth

    30KHz

  • Output Power

    30mW, Max

  • Harmonic Suppression

    40dB

  • Battery

    2x AA Battery (1.5V x 2)

  • Current Consumption

    <85 mA

  • Carrier Frequency Range

    VHF Band

  • Frequency Stability

    +/- 0.005%

  • Audio Frequency Response

    80 - 15,000Hz

  • Image & Spurious Rejection

    45dB Minimum

  • S/N Ratio

    > 75dB

  • Max. SPL

    >100dB

  • T.H.D.

    < 1%

  • Service Area

    100' (30m)

  • Operation Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • UPC Code

    844565000668

About Audio 2000s AWM6112

The Audio2000'S AWM6112 Plug-In-N-Recharge VHF dual channel wireless microphone system is a wireless microphone system with the recharge mechanism right on the top of the receiver (AWR6112) and on the microphone (AWX6112). Intended to be a solution provider for various application environment, the AWM6112 system is developed to provide the following benefits to the users:

Friendliness
The Plug-In-N-Recharge feature, with the recharge mechanism built right on the microphone and the receiver, makes the wireless microphone systems ready to be used at any time. A rack-mount kit is included such that the AWM6112 is rack mountable.

Dependability
The AWM6112 system has been designed and manufactured to be dependable, problem free, versatile and easy to use.

Portability
The color cardboard box is designed to be carried easily and is, hence, highly portable.

Quality
The AWM6112 system has been engineered to have a wide audio frequency range, high S/N ratio, and outstanding performance. Two NiMH AA rechargeable batteries are used for each handheld microphone to avoid the traditional NiCd battery memory problems.

Affordability
The AWM6112 system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

Applications
Disc jockey (DJ); karaoke jockey (KJ); church; school; karaoke; home entertainment

Receiver's Front Panel Functions
• Power On/Off Switch
• 2. Channel 1 Volume Level Control
• Channel 1 Recharge LED Indicator
• Fluorescence Display
• Channel 2 Volume Level Control
• Channel 2 Recharge LED Indicator

Receiver's Rear Panel Functions
• Channel 2 Antenna
• Unbalanced Mixed Audio Output (1/4" Jack)
• Balanced Mixed Audio Output (XLRM Jack)
• Channel 1 Antenna
• AC Power Cord
• 120V / 240V Voltage Selection Switch

Audio 2000s AWM6112 Features

  • Receiver Features
  • VHF Band Frequency
  • Recharge Mechanism Built-in on the Receiver
  • Balanced and Unbalanced Audio Outputs
  • Full Rack Case with Power and RF Indicators
  • Fluorescence Display
  • RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
  • Low Noise Mixer Circuitry for Reducing interference
  • 120V-240V AC Power Supply
  • Transmitter Features
  • VHF Band Frequency
  • Recharge Mechanism at the Base of the Handheld Microphone
  • High Sensitivity Cardioid Microphone Capsule
  • Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
  • Low Battery LED Indicator

Key Features

  • Receiver Highlights
  • VHF Band Frequency
  • Recharge Mechanism Built-in on the Receiver
  • Balanced and Unbalanced Audio Outputs
  • Transmitter Highlights
  • VHF Band Frequency

What's in the box:

  • AWM6112 Receiver
  • 2x Wireless Handheld Microphone
  • AC/DC Adapter
  • 2x Antennas
  • 1/4 to 1/4 " Cable
  • 4x AA Battery
  • User Manual
  • Audio 2000s 1 Year Limited Warranty
