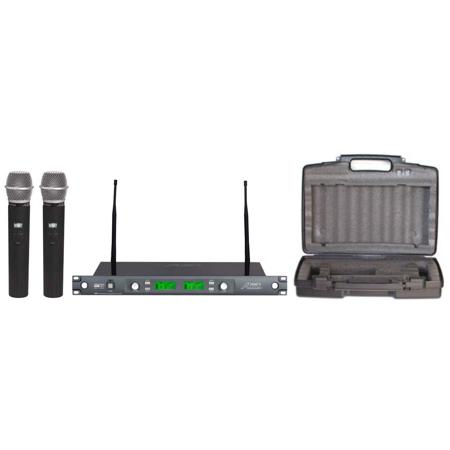

Audio 2000s AWM6546DU Professional Dual-Diversity UHF Wireless Handheld Microphone System, Includes AWR6546DU Receiver & 2x AWX6540 Handheld Microphone

SKU: A2AAWM6546DU

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio 2000s AWM6546DU Specifications

Receiver

Receiver

Jump to...
  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    10 ppm

  • Receiving Sensitivity

    -105 dBm (S/N: 12 dB)

  • S/N Ratio

    > 105 dB

  • T.H.D.

    < 1%

  • Audio Output

    1/4" (0 - 360mV @ 3K Ohms
    XLR (0 - 24mV @ 600 Ohms)

  • Dimensions (W x H x D)

    19 x 1.7 x 8.4" (483 x 43 x 213mm)

Transmitter

Jump to...
  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    10 ppm

  • Modulation

    Frequency Modulation (FM)

  • Modulation Depth

    25KHz

  • Output Power

    10mW, Nominal (with 50 Ohms Load)

  • Spurious Emission

    > 55 dB

  • Battery

    AA Batteries x2

  • Current Consumption

    < 100 mA

  • Dimensions (W x H x D)

    Handheld: 9.6 x 2.0 x 2.0" (245 x 50 x 50mm)

  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    10 ppm

  • Audio Frequency Response

    50 - 15,000 Hz (-3 dB)

  • Image and Spurious Rejection

    > 80 dB

  • S/N Ratio

    > 105 dB

  • Max. SPL

    110dB

  • T.H.D.

    < 1%

  • Service Area

    330' (100m), Line of Sight

  • Operation Temperature

    -4 to +120 Degree F (-20 to +49 Degree C)

  • UPC Code

    844565000422

About Audio 2000s AWM6546DU

The Audio2000'S AWM6546DU wireless system is a UHF dual-channel diversity wireless microphone system. Similar to the other Audio2000'S wireless systems, various transmitter options are provided to the AWM6546DU system users

With the exceptional RF transmission and reception of the dual diversity circuitries, the AWM6546DU system, with a transmission range of more than 250 feet, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.

Engineered For Dependable UHF Systems
As all the other Audio2000'S wireless products, the AWM6546DU system has been engineered to be dependable dual-channel diversity UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design.

A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

System Designed For Accessibility
The AWM6546DU system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6546DU system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

Applications
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment.

Audio 2000s AWM6546DU Features

  • Receiver Features
  • Dual-Channel Diversity Wireless Receiver
  • 100 Adjustable Frequencies with PLL Synthesized Control
  • UHF Band Frequency
  • Two Independent XLR Balanced Outputs
  • One 1/4" Unbalanced Audio Output
  • RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
  • Low Noise Mixer Circuitry for Reducing interference
  • Two Squelch Control Knobs (One for Each Channel) at the Rear Panel
  • Removable Antennas
  • LCD Display Panels and Computerized Numerical Control
  • Transmitter Features
  • UHF Band Frequency
  • 100 Adjustable Frequencies with PLL Synthesized Control
  • High Sensitivity Cardioid Microphone Capsule
  • Audio Level Adjustment Knob
  • Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
  • Computerized Numerical Control
  • LCD Display Panel

Key Features

  • Receiver Highlights
  • Dual-Channel Diversity Wireless Receiver
  • 100 Adjustable Frequencies with PLL Synthesized Control
  • UHF Band Frequency
  • Transmitter Highlights
  • High Sensitivity Cardioid Microphone Capsule

What's in the box:

  • AWR6546DU Receiver
  • 2x AWX6540 Wireless Handheld Microphones
  • 2x Antennas
  • AC/DC Adapter
  • Cable
  • 4x AA Batteries
  • Rack-Mounting Hardware
  • Carry Case
  • User Manual
  • Audio 2000s 1 Year Limited Warranty
