Audio 2000s AWM6031DUH UHF Single Channel Diversity Wireless Headset Microphone System, Includes AWR6031DU Receiver, AWX6030H Headset Microphone

SKU: A2AWM6031DUH

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Audio 2000s AWM6031 Specifications

System
  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    +/- 0.005%

  • Audio Frequency Response

    80 - 15,000Hz

  • Image and Spurious Rejection

    50 dB Minimum

  • S/N Ratio

    > 80 dB

  • Max. SPL

    110 dB

  • T.H.D.

    < 1%

  • Service Area

    150' (45m)

  • Operation Temperature

    14 Degree - 122 Degree F (-10 Degree - +50 Degree C)

Receiver

Jump to...
  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    +/- 0.005%

  • Receiving Sensitivity

    -105 dBm

  • S/N Ratio

    80 dB

  • T.H.D.

    < 1%

  • Audio Output

    1/4" and XLR (0 - 300mV @ 600 Ohms)

  • Dimensions (W x H x D)

    8.5 x 1.6 x 5.4" (215 x 40 x 138mm)

Transmitter

Jump to...
  • Carrier Frequency Range

    571 - 598 MHz

  • Frequency Stability

    +/- 0.005%

  • Modulation

    Frequency Modulation (FM)

  • Modulation Depth

    40KHz

  • Output Power

    30mW, Max

  • Spurious Emission

    > 55 dB

  • Battery

    9V Battery

  • Current Consumption

    < 40 mA

  • Dimensions (W x H x D)

    Handheld: 9.3 x 2 x 2" (235 x 50 x 50mm)
    Belt-Pack: 2.6 x 4.1 x 1" (65 x 105 x 25mm)

  • UPC Code

    00844565000385

About Audio 2000s AWM6031

The Audio2000's AWM6031DU wireless system is a UHF single-channel diversity wireless microphone system.With the exceptional RF transmission and reception, the AWM6031DU system, with a transmission range of more than 150 feet, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.

Engineered For Dependable UHF Systems
As all the other Audio2000'S wireless products, the AWM6031DU system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

System Designed For Accessibility
The AWM6031DU system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6031DU system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

AWR6031DU Receiver
• UHF Band Frequency
• One XLR Balanced Output and One 1/4" Unbalanced Audio Output
• RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
• Low Noise Mixer Circuitry for Reducing interference
• Squelch Control at the Rear Panel
• Diversity Receiver for Optimal Reception
• 12V-18V DC Power Supply

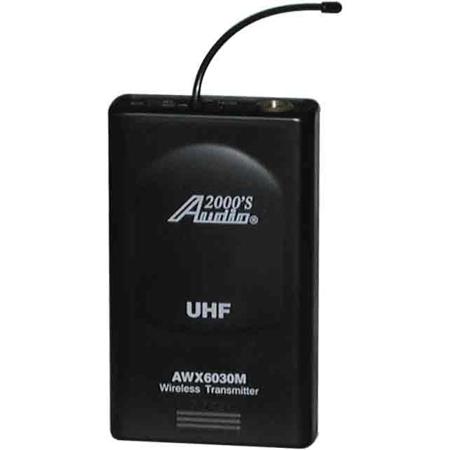

AWX6030H Transmitters
• UHF Band Frequency
• High Sensitivity Cardioid Microphone Capsule
• Audio Level Adjustment Knob for the AWX6030M, AWX6030H, and AWX6030G
• Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
• Low Battery LED Indicator

Applications
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience crystal-clear audio with this wireless headset microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range up to 150 feet with this microphone.
  • This headset microphone system features easy setup, so you can get started in just a few minutes.
  • Achieve professional sound quality with a wide 80-15,000Hz frequency response using this microphone.
  • The single-channel UHF design ensures minimal interference, offering a stable wireless connection.
  • Includes a carrying case for easy transport and protection of your wireless microphone headset.

What's in the box:

  • AWR6031DU Receiver
  • Body Pack Transmitter
  • AWX6030H Headset Microphone
  • AC/DC Adapter
  • 2x Antennas
  • 2x Batteries
  • Carrying Case
  • Owner Manual
  • Audio 2000s 1 Year Limited Warranty
