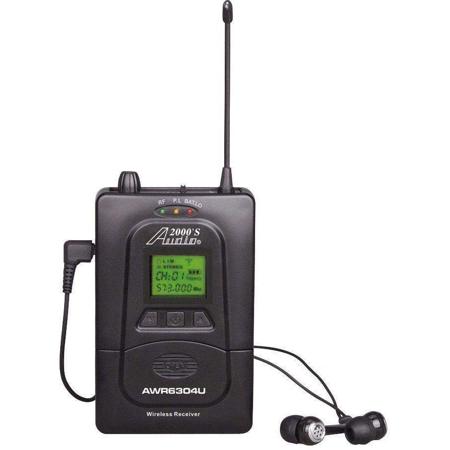

Audio 2000s AWR6304U Bodypack Receiver for UHF Wireless In-Ear Monitoring System
See all Audio 2000s items

Audio 2000s AWR6304U Bodypack Receiver for Professional UHF Wireless In-Ear Monitoring System

SKU: A2AWR6304U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?TYLAR B : To replace our current packs

Reviews about this item

Review Summary

2021-10-08T06:55:26

Rated 5 out of 5

Product worked as anticipated

Good product and easy to integrate into current sound system

Catherine M.

Audio 2000s AWR6304U Specifications

  • Frequency Range

    571 - 598 MHz

  • Band Width

    25 MHz

  • Oscillation Mode

    PLL Synthesized

  • Frequency Stability

    +/-0.005% (32 - 122 Deg. F)

  • Modulation Mode

    FM Stereo Modulation

  • Max. Deviation

    +/- 68 KHz

  • Receiving Mode

    Diversity Receiving

  • Receiving Sensitivity

    -107 dBm

  • Squelch Level

    -100 dBm -90 dBm -70 dBm

  • Total Harmonic Distortion

    1%

  • S/N Ratio

    94 dB (Max)

  • Frequency Response

    80 - 15,000 Hz ( +/- 3 dB)

  • Stereo Separation

    35 dB

  • Output Jack

    3.5mm Stereo Headphone Jack

  • Output Power

    2x 50mW under 1KHz (T.H.D. 3%) (32 Ohms)

  • Headphone Impedance

    >= 16 Ohms

  • Power Supply

    2x AA Batteries

  • Current Consumption

    150 mA

  • Dimensions

    4.2 x 2.6 x 1.1" (106.7 x 66 x 28mm)

About Audio 2000s AWR6304U

FEATURED REVIEWS

Product worked as anticipated

By Catherine M.

Good product and easy to integrate into current sound system

The AWR6304U is a Wireless Receiver for the Audio2000'S tm AWM6304U Professional UHF Wireless In-Ear Monitoring System (with 100 Adjustable Frequencies) with 3.5mm Stereo Earphone Jack, 3.5mm Line-Out Jack and Built-in Audio Limiter

Audio 2000s AWR6304U Features

  • PLL Synthesized, FM Stereo Modulation
  • Audio Output: Line Level X 2, XLR
  • Audio Input: 1/4" Phone Jacks X2
  • Headphone Output: 1/4" Stereo Phone Jack with Adjustable Volume
  • Ear-Buds Included
  • 600 Mhz Range
  • Low-Battery Indicator on the Receiver

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • PLL Synthesized, FM Stereo Modulation
  • Audio Output: Line Level X 2, XLR
  • Audio Input: 1/4" Phone Jacks X2
  • Headphone Output: 1/4" Stereo Phone Jack with Adjustable Volume
  • Ear-Buds Included
  • 600 Mhz Range

What's in the box:

  • AWR6304U Wireless Receiver
  • Earbuds
  • 2x AA Batteries
  • Audio 2000s 1 Year Limited Warranty
