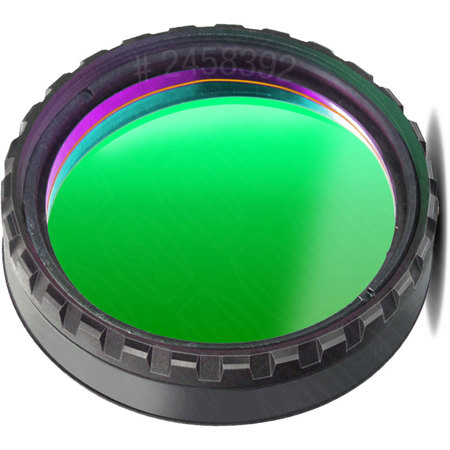

Baader Planetarium 1.25" Double Stacked Solar Continuum Filter with ND 3.8 200x290mm AstroSolar Photo Film

SKU: AA2458392

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-05-29T16:43:43

Rated 5 out of 5

The perfect mounting cell for eclipse photographers

AstroSolar film is the standard for white light solar filters. This mounting cell has two great advantages for eclipse photographers. The wide flange shades your camera avoiding overheating. The external 3 rubber bumper attachment is easy to remove and replace quickly without disturbing your aim. This is a great advantage for totality in a total solar eclipse. Highly recommended

Robert P.

Baader Planetarium Filter Specifications

  • Transmission Range

    536 - 544nm

  • Filter Thickness (without Cell)

    2mm

  • HBW (Half bandwidth)

    8nm

  • CWL (central Wavelength)

    540nm

  • AR-coating

    Dielectrically coated, plane optically polished

  • Special Functions

    Double stacked

  • Filter Size

    1.25"

  • Visual/Imaging

    Visual, Imaging

  • Filter Usage

    Contrast Enhancement, Solar

  • Filter Mounted

    Mounted (classic 8mm)

  • Type of Filter

    Narrowband

  • Filter Shape

    Round

  • Weight

    0.2kg (0.44lbs)

About Baader Planetarium Filter

Double Stacked Solar Continuum Filter - For Visual and Photographic Observations of the Sun
Ensures highest contrast in the photosphere of the sun. The filter works as a monochrometer - suppressing the effects of the atmospheric turbulence and results in images that are significantly sharper. Owners of SCTs and refractors will benefit as red and blue wavelengths are completely excluded, with the transmission area peaking at 535nm where telescope optics are sharpest and free from chromatic aberrations.

• 1-1/4" Double Stacked Baader Solar Continuum Filter. 8nm / CWL 540nm
• Includes AstroSolar Photo Film ND 3.8 200x290mm. Includes two Baader Solar Continuum Filters which have been stacked for even higher contrast
• Enhances the contrast and reduces the effect of atmospheric turbulence
• This filter must be used in conjunction with a Baader Herschel Wedge or Baader AstroSolar Safety Film for solar observations otherwise equipment damage may occur. Baader AstroSolar Safety Film ND 5.0 must be used for visual observations

Important Information for Solar Observing
The Solar Continuum Filter may be used for purely VISUAL observation ONLY in conjunction with the Baader Herschel Prism or with the Baader AstroSolar Safety Film (ND 5.0). The supplied AstroSolar Photo Film ND 3.8 is for photographic only and MUST NOT be used for visual observations.

The combination of AstroSolar Photo Film (ND 3.8) and Solar Continuum filter is used exclusively for photography of the sun at high magnifications. This combination is highly apt to capture the finest solar surface detail and granulation at extremely high magnification while enabling ultra-short exposure (measured in milliseconds) in order to freeze atmospheric turbulence.

What's in the box:

  • Baader Planetarium 1.25 " Double Stacked Solar Continuum Filter
  • ND 3.8 200x290mm AstroSolar Photo Film
  • Baader Planetarium Warranty
