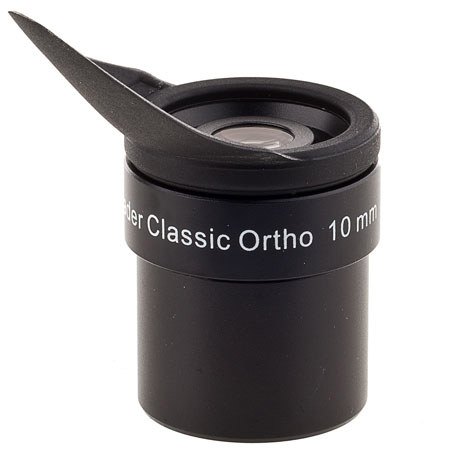

Baader Planetarium Classic Ortho 10mm HT Multi-Coated Eyepiece with Winged Eyecup, 1.25" Barrel

SKU: AA2954110 MFR: BC0-10
$108.00
Earn VIP Reward Points

Key Features

  • Experience sharp views with this 10mm Orthoscopic eyepiece, perfect for planetary observation.
  • Enjoy comfortable viewing sessions thanks to the generous 8mm eye relief on this eyepiece.
  • Features high transmission multi-coating (HT-MC) for brighter, clearer images through your telescope.
  • The 52-degree apparent field of view provides an immersive stargazing experience with this eyepiece.
  • This 1.25" barrel size eyepiece is parfocal, minimizing refocusing when switching eyepieces.
  • Weighing only 1.94 oz, this lightweight telescope eyepiece won't add extra bulk to your setup.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$21.99

3 Year

$29.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?GARY K : Product reviewsJAMES R : excellent optically. great for planets

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Baader Planetarium Eyepiece Specifications

General

General

Jump to...
  • Eyepiece Series

    Classic (Q-Turret)

  • Focal Length

    0.39" (10mm)

  • Apprent Field of View

    52 Degree

  • Eye Relief

    0.31" (8mm)

  • AR-Coating

    High transmission multi-coated (HT-MC)

  • Parfocal Eyepieces

    Yes

  • Barel Size

    1.25" (31.75mm)

  • Optical Design

    Orthoscopic

Eyepiece Design

Jump to...
  • Field Stop

    Diameter: 0.34" (8.7mm)
    Displacement to Reference Plane: 0.07" (2mm)

  • Number of Lens Elements

    4

  • Number of Groups

    2

  • Slip Protect Safety

    Classic Undercut

  • Eyepiece Body Above Reference Plane

    0.67" (17.12mm)

  • Length of 1.25" Barrel

    0.94" (24mm)

  • Outer Diameter

    1.37" (34.8mm)

Physical

Jump to...
  • Weight

    1.94 oz (55g)

  • UPC Code

    4047825027788

About Baader Planetarium Eyepiece

If you're an astronomy enthusiast seeking a high-quality, durable, and versatile eyepiece, the Classic Ortho 10mm HT Multi-Coated Eyepiece with Winged Eyecup and 1.25" Barrel is your ideal choice. This innovative eyepiece, designed by the renowned Baader Planetarium, offers a crystal-clear field of view, free from distortions, thanks to its HT-MC coating that ensures high transmission and excellent contrast.

The multi-coating technology effectively eliminates almost all internal reflections, enhancing your viewing experience of celestial bodies. With a 50-degree apparent field, this eyepiece offers sharp field stops and superior ergonomics, ensuring comfortable and prolonged observing sessions.

The classic optical design of this orthoscopic eyepiece features a triplet-element and one plano-convex eye lens, resulting in only four glass-air surfaces. This minimalistic design, coupled with a blackened interior, significantly suppresses stray light, providing you with a clearer and more detailed image.

The hard-anodized barrel of this eyepiece is equipped with a filter thread, adding to its versatility. The anti-reflex coating and blackened lens edges further enhance the viewing experience, making it seem as if there are no lenses at all!

This eyepiece uses the same glasses and optical design as the legendary orthoscopic Zeiss Jena eyepieces, ensuring top-notch performance. The 32mm-Plossl-eyepiece is perfect for a large field of view at telescopes with a 1.25" focuser.

The Classic Ortho eyepiece is also ideal for projection photography, offering high magnifications in combination with an OPFA (Eyepiece Projection adapter). With its high sharpness on the axis and excellent transmission, it provides sharp views of the planets even at very high magnifications.

For afocal projection, the Classic Plossl is perfectly suited when used with the ADPS (Afocal Digital Projection System) and a compact camera with a fixed lens. The lean housing of the Classic eyepieces fits into all common projection adapters and can be used without problems for visual use at any binoviewer.

In summary, the Classic Ortho 10mm HT Multi-Coated Eyepiece with Winged Eyecup and 1.25" Barrel is a user-friendly, high-quality, and versatile tool for any astronomy enthusiast or professional.

Baader Planetarium Eyepiece Features

  • Baader Classic Ortho 10mm 1.25" Eyepiece, apparent field of view 52 Degree , incl. winged rubber eyecup
  • Parfocal Eyepiece series with very high transmission
  • This eyepiece delivers a pure-white image with outstanding sharpness and contrast
  • True High-Transmission- (HT) and Multi-Coating (MC) on all glass-air-surfaces offer a brilliant image while showing almost no internal reflections
  • Suitable as projection eyepiece for OPFA (Eyepiece Projection adapter)

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Experience sharp views with this 10mm Orthoscopic eyepiece, perfect for planetary observation.
  • Enjoy comfortable viewing sessions thanks to the generous 8mm eye relief on this eyepiece.
  • Features high transmission multi-coating (HT-MC) for brighter, clearer images through your telescope.
  • The 52-degree apparent field of view provides an immersive stargazing experience with this eyepiece.
  • This 1.25" barrel size eyepiece is parfocal, minimizing refocusing when switching eyepieces.
  • Weighing only 1.94 oz, this lightweight telescope eyepiece won't add extra bulk to your setup.

What's in the box:

  • Classic Ortho 10mm HT Multi-Coated Eyepiece
  • Dustcap
  • Eyecup
  • Baader Planetarium 1 Year Limited Warranty
