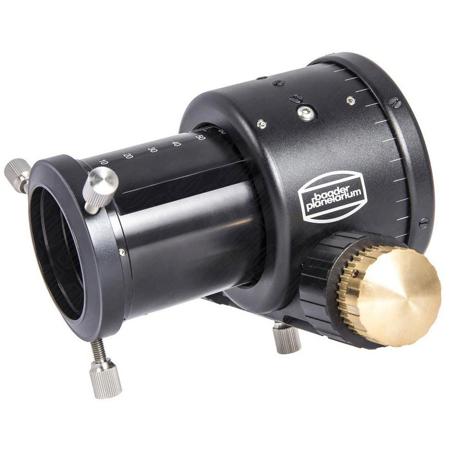

Baader Planetarium BDS-RT 2" Diamond Steeltrack Focuser for Refractors Telescope with 80mm Focus Travel

SKU: AA2957210 MFR: BDS-RT
Earn VIP Reward Points

Key Features

  • Achieve pinpoint focus with the Baader Diamond Steeltrack telescope focuser for refractors.
  • Enjoy smooth, precise adjustments thanks to the 1:10 reduction ratio on this 2" focuser.
  • Mount heavy equipment confidently; this telescope accessory supports payloads up to 13.23 lbs.
  • Easily rotate your setup with the integrated rotator for optimal viewing angles on your telescope.
  • Quickly attach finders with the built-in finder base on this versatile telescope focuser.
  • Experience superior durability with the Diamond Steeltrack's micro-geared high precision drive.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$47.99

2 Year

$83.99

3 Year

$104.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MARGIE B : To put it on a barska 80mm triplet..

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Baader Planetarium BDS-RT Specifications

  • Focuser Travel

    80mm (3.15")

  • Payload Capacity

    6kg (13.23lbs)

  • Shortest Overall Height

    Standard: 78mm (3.07")
    w. Opt. Adapters: 65mm (2.56")

  • Reduction

    1:10

  • Rotatable

    Yes

  • Finder Base

    Yes

  • Inner Diameter / Clear Aperture

    55mm (2.17")

  • Special Functions

    True diamonds form a micro-geared high precision drive system

  • Inner Connection (lens Sided)

    Thread, M60

  • Outer Connection (lens Sided)

    Thread, Dovetail ring, M68, S88

  • Inner Connection (eyepiece Sided)

    Thread, Clamp, Dovetail ring clamp, M55, S58, 2"

  • Compatible Telescopes

    Refractors

  • Focuser Style

    Crayford

  • Size

    2" (50.80mm)

  • Weight

    1.30kg (2.87lbs)

  • UPC Code

    4047825031976

About Baader Planetarium BDS-RT

You can elevate your stargazing experience with the BDS-RT 2" Diamond Steeltrack Focuser for Refractors Telescope with 80mm Focus Travel. This innovative and high-quality product is designed by the reputable brand, Baader Planetarium, known for its superior astronomical equipment.

The BDS-RT 2" Diamond Steeltrack Focuser is a durable and user-friendly accessory that enhances the functionality of your refractor telescope. It features a large focus travel of 80mm, enabling more precise focusing and a wider range of celestial objects to be viewed.

This stylish focuser boasts a minimum height of 78mm when supplied with a 2" clamp and can be reduced to 65mm with optional S58 direct-thread adapters. Despite its lightweight design, weighing only 1.160g (40.9 oz), it can lift a payload of 6kg (13 lbs) straight up without slipping, thanks to its unbreakable Instrument Grade Roller-Bearings.

The BDS-RT 2" Diamond Steeltrack Focuser is equipped with a true diamond micro-geared high precision drive system, a first in the industry. This innovative system eliminates backlash, cogging, and flexure, ensuring smooth and accurate focusing.

The focuser also features a 1:10 Stainless Steel fine-focus mechanism, ready for the attachment of the optional Diamond Steeldrive temperature-compensating motor drive system. Its detachable drive block assembly is reversible for right or left-hand fine-focus operation.

The focuser's clamping system includes an S58 Dovetail ring-clamp built into the focusing tube, allowing for the direct thread connection of accessories and cameras. It also comes with a 2" eyepiece clamp with a hardened bronze clamp ring as standard.

The BDS-RT 2" Diamond Steeltrack Focuser's focusing drawtube is designed with individually adjustable bearings for precise alignment of the mechanical and optical axis. Its ultra-hard subzero coated bearing races are precision milled and much harder than anodizing or stainless steel.

With an oversized 55mm inner clear diameter, this focuser prevents vignetting and features anti-reflection knife-edge baffles. It's the perfect addition to your refractor telescope, offering enhanced precision and a superior viewing experience.

Baader Planetarium BDS-RT Features

  • High-precision BDS-RT 2" Diamond Steeltrack Focuser for enhanced telescope functionality
  • Innovative micro-geared diamond drive system for smooth, accurate focusing
  • Durable design with unbreakable Instrument Grade Roller-Bearings, capable of lifting a payload of 6kg
  • User-friendly with detachable, reversible drive block assembly for right or left-hand operation
  • S58 Dovetail ring-clamp for direct thread connection of accessories and cameras
  • Oversized 55mm inner clear diameter with anti-reflection knife-edge baffles to prevent vignetting

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve pinpoint focus with the Baader Diamond Steeltrack telescope focuser for refractors.
  • Enjoy smooth, precise adjustments thanks to the 1:10 reduction ratio on this 2" focuser.
  • Mount heavy equipment confidently; this telescope accessory supports payloads up to 13.23 lbs.
  • Easily rotate your setup with the integrated rotator for optimal viewing angles on your telescope.
  • Quickly attach finders with the built-in finder base on this versatile telescope focuser.
  • Experience superior durability with the Diamond Steeltrack's micro-geared high precision drive.

What's in the box:

  • Baader Planetarium BDS-RT 2 " Diamond Steeltrack Focuser
  • Adapter
  • Baader Planetarium Warranty
