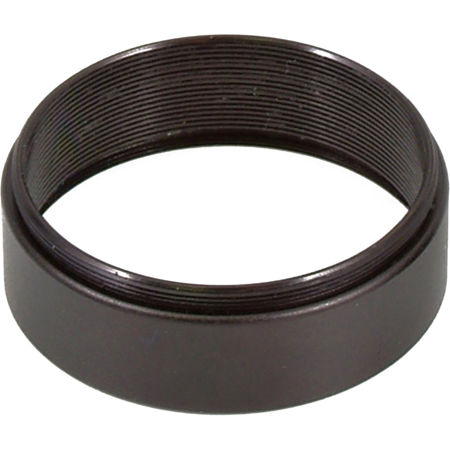

Baader Planetarium 14mm Hyperion Finetuning-Ring with M48 Filter Thread

SKU: AA2958214 MFR: HDFT-14
$25.00
Earn VIP Reward Points

Key Features

  • Enhance your Baader Planetarium eyepieces with this 14mm fine-tuning ring today.
  • Achieve optimal focus with this Hyperion ring, designed for precise adjustments.
  • Features an M48 filter thread for seamless integration with your astronomy filters.
  • Inner diameter of 14mm (0.55") ensures a snug fit for compatible eyepieces.
  • Outer 2" (50.8mm) diameter allows easy attachment to various telescope setups.
  • Maximize optical performance by fine-tuning your telescope's eyepiece position.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-10-07T07:04:57

Rated 5 out of 5

Excelente

Buen producto, cumple todas las espectativas. El despacho fue expedito

Alexis V.

Baader Planetarium 14mm Hyperion Finetuning-Ring Specifications

  • Filter Thread

    M48

  • Diameter

    Inner: 14mm / 0.55"
    Outer: 2" / 50.8mm

  • UPC Code

    4047825007278

About Baader Planetarium 14mm Hyperion Finetuning-Ring

FEATURED REVIEWS

Excelente

By Alexis V.

Buen producto, cumple todas las espectativas. El despacho fue expedito

An innovative addition to your telescope setup, the Baader Planetarium 14mm Hyperion Fine Tuning Ring is designed to effortlessly adjust the focal length of your Hyperion eyepiece. This high-quality accessory is installed between the front element and the main body of the eyepiece, providing a seamless integration with your existing equipment.

Crafted to match the Hyperion finish, the 14mm Fine Tuning Ring is fully internally sharp v-threaded and blackened. This meticulous design eliminates stray light reflections from the internal surfaces, ensuring a clear, unobstructed view of the cosmos.

The versatility of the Baader 14mm Hyperion Fine Tuning Ring is further enhanced by its compatibility with the M48 filter thread. This feature allows you to use a wide range of filters, expanding your viewing and imaging possibilities.

Please note, the Baader 24mm Hyperion Eyepiece does not accept the Fine Tuning Rings due to a difference in optical design. However, with the addition of Baader's Fine Tuning Rings, your Hyperion eyepiece can transform into four different eyepieces when paired with the Baader 28mm Fine Tuning Ring.

The 14mm and 28mm Fine Tuning Rings both have an outside diameter (OD) of 2" and are threaded with a M48 (filter thread) on each end. This allows them to be installed between the removable front negative element and the main body of the Baader Hyperion eyepiece. The added spacing decreases the focal lengths, thereby increasing magnification.

For a more subtle adjustment to the eyepiece focal length, consider using a Baader 2" Filter between the Hyperion negative element and main body. The 8.5mm thickness of the filter cell will have a similar effect in reducing the Hyperion's focal length, while also enabling the use of 2" filters with Hyperions - a feature not possible with any other 1.25" eyepiece.

In summary, the Baader Planetarium 14mm Hyperion Fine Tuning Ring is a durable, stylish, and versatile accessory that enhances the functionality of your Hyperion eyepiece, offering a world of possibilities for your astronomical explorations.

Baader Planetarium 14mm Hyperion Finetuning-Ring Features

  • High-quality 14mm Hyperion Fine Tuning Ring designed for easy adjustment of Hyperion eyepiece focal length
  • Crafted to match the Hyperion finish, featuring full internal sharp v-threading and blackening to eliminate stray light reflections
  • Versatile accessory compatible with M48 filter thread, opening up a wide range of filter use options
  • Transforms Hyperion eyepiece into four different eyepieces when paired with the Baader 28mm Fine Tuning Ring
  • Designed for installation between the removable front negative element and the main body of the Baader Hyperion eyepiece
  • Enables the use of 2" filters with Hyperions, a unique feature not found in other 1.25" eyepieces

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Enhance your Baader Planetarium eyepieces with this 14mm fine-tuning ring today.
  • Achieve optimal focus with this Hyperion ring, designed for precise adjustments.
  • Features an M48 filter thread for seamless integration with your astronomy filters.
  • Inner diameter of 14mm (0.55") ensures a snug fit for compatible eyepieces.
  • Outer 2" (50.8mm) diameter allows easy attachment to various telescope setups.
  • Maximize optical performance by fine-tuning your telescope's eyepiece position.
