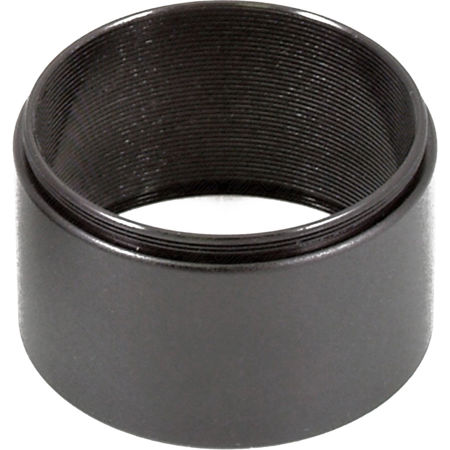

Baader Planetarium 28mm Hyperion Finetuning-Ring with M48 Filter Thread

SKU: AA2958228 MFR: HDFT-28
$30.00
Earn VIP Reward Points

Key Features

  • Optimize telescope views with this Baader Planetarium 28mm fine-tuning ring.
  • Achieve precise focus adjustments using this eyepiece accessory for sharper images.
  • Features an M48 filter thread, perfect for attaching astronomy filters to your setup.
  • Enhance your astrophotography with this 28mm ring, designed for fine adjustments.
  • Inner diameter of 28mm (1.1"), outer diameter of 2" (50.8mm) for versatile use.
  • Durable build ensures stable filter mounting for clear, high-quality telescope views.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Billy F : For a GSO coma corrector for my Dob.

Reviews about this item

Review Summary

2017-03-01T10:48:19

Rated 5 out of 5

Works as it should...

I bought this to give my 5mm Hyperion its maximum range of magnification. Combined with the 14mm it works well and the threads line up easily and do not bind. Being metal it holds the cold temperatures for a long time but it doesn't seem to cause the ring to "adhere" to the erfle end or barlowed end. Some light loss does occur though when using it.

Steve

Baader Planetarium 28mm Hyperion Finetuning-Ring Specifications

  • Filter Thread

    M48

  • Diameter

    Inner: 28mm / 1.1"
    Outer: 2" / 50.8mm

  • UPC Code

    4047825007261

About Baader Planetarium 28mm Hyperion Finetuning-Ring

FEATURED REVIEWS

Works as it should...

By Steve

I bought this to give my 5mm Hyperion its maximum range of magnification. Combined with the 14mm it works well and the threads line up easily and do not bind. Being metal it holds the cold temperatures for a long time but it doesn't seem to cause the ring to "adhere" to the erfle end or barlowed end. Some light loss does occur though when using it.

Become an astrophotography expert with the Baader Planetarium 28mm Hyperion Fine Tuning Ring. This high-quality accessory is designed to seamlessly adjust the focal length of your Hyperion eyepiece, enhancing your viewing experience and offering greater flexibility in your astronomical observations.

Constructed to match the Hyperion finish, the 28mm Fine Tuning Ring is meticulously designed with sharp v-threading and blackened internal surfaces. This thoughtful design effectively eliminates stray light reflections, ensuring a clear and unobstructed view of the cosmos.

The Fine Tuning Ring is equipped with an M48 filter thread on each end, allowing it to be installed between the removable front negative element and the main body of the Baader Hyperion eyepiece. This added spacing decreases the focal lengths, thereby increasing magnification and enabling your Hyperion eyepiece to function as multiple eyepieces.

Please note, the Baader 24mm Hyperion Eyepiece is not compatible with the Fine Tuning Rings due to a difference in optical design.

In addition to the Fine Tuning Rings, you can also adjust the eyepiece focal length using a Baader 2" Filter. This filter, when placed between the Hyperion negative element and main body, acts like a small Fine Tuning Ring. The 8.5mm thickness of the filter cell subtly reduces the Hyperion's focal length, offering another way to customize your viewing experience.

The Baader Planetarium 28mm Hyperion Fine Tuning Ring is not just an accessory, but a tool to expand your astronomical exploration capabilities.

Baader Planetarium 28mm Hyperion Finetuning-Ring Features

  • High-quality Baader Planetarium 28mm Hyperion Fine Tuning Ring for enhanced astrophotography
  • Designed to seamlessly adjust the focal length of Hyperion eyepieces
  • Internally sharp v-threaded and blackened to eliminate stray light reflections
  • Equipped with M48 filter thread on each end for easy installation
  • Increases magnification by decreasing the focal lengths
  • Compatible with Baader 2" Filter for additional focal length adjustment
