Anchor Audio ACL-DP/HH/HBM Acclaim Lectern Dual Wireless Package with WH-6000 Handheld Mic and HBM-TA4F Headband Mic

SKU: AAACLDPHHHBM

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Anchor Audio Acclaim Lectern Package Specifications

  • Lectern: Microphone Type

    Electret Condenser, 24" Gooseneck

  • Lectern: Microphone Mount

    Permanent Surface Mount

  • Lectern: Reading Light Type

    Detachable 12V LED

  • Lectern: Power Output

    22 Watts

  • Lectern: SPL

    126dB @ 1 meter

  • Lectern: Speakers

    Full Range

  • Lectern: Frequency Response

    400Hz - 10kHz

  • Lectern: Battery Type

    Charger (RC-6000) 18V DC/universal input
    (100Vac - 240Vac, 50 - 63Hz)
    12 volt rechargeable, 5.4 AH

  • Lectern: Inputs

    Lectern Mic: Lo-Z, Balanced, Phantom Power, XLR
    Wired Mic: Lo-Z, unbalanced, 1/4"-phone
    Line: Hi-Z, Unbalanced, 1/4" Phone

  • Lectern: Output

    Line (Post Fader): Lo-Z (<1k Ohm), Buffered, 1/4" Phone
    Speaker: Switched 8ohm, 1/4" phone, Unswitched 4ohm, 1/4" Phone

  • Lectern: AC Power

    90 - 264VAC, 50/60Hz, 50W Max

  • Lectern: Wireless Receiver/Type

    16-Channel UHF x2

  • Type of Transmitter

    PLL Synthesized UHF Bodypack

  • Transmitter: # Of Channels

    16

  • Transmitter: Type of Input Connector

    4-pin Mini XLR Male

  • Transmitter: Polar Pattern

    Cardioid

  • Transmitter: Interchangeable Mic Heads

    No

  • Transmitter: Battery Type/Approx. Life

    2 x DC 1.5V AA (dry or rechargeable), 20 hours

  • Transmitter: Mute Switch

    No

  • Transmitter: Level Control

    Yes

  • Transmitter: Antenna Type

    Detachable Whip

  • Transmitter: Display

    No

  • Headband Mic: Transducer

    Electret condenser

  • Headband Mic: Polar Pattern

    Uni-directional

  • Headband Mic: Frequency Response

    30Hz to 15kHz

  • Headband Mic: Dynamic Range (Typical)

    Sensitivity: -48dB @ 1kHz

  • Headband Mic: Power Requirements

    1-10 volts DC

  • Headband Mic: Output Impedance

    Lo-Z

  • Headband Mic: Output Connectors

    TA4F (mini XLR female)

  • Lectern: Dimensions

    30.5 x 21.5 x 18.5" (77.4 x 54.61 x 46.99cm)

  • Transmitter: Dimensions (H x W x D)

    3.86 x 2.6 x 1.02" (98 x 66 x 26mm)

  • Headband Mic: Dimensions

    Cable: 36" / 91.44cm

  • Lectern: Weight

    38 lb (17.2 kg)

  • Transmitter: Weight

    7.2 oz (204 g) / 204.11g

  • Headband Mic: Weight

    Headband Mic: 0.07 oz (1.98g)

About Anchor Audio Acclaim Lectern Package

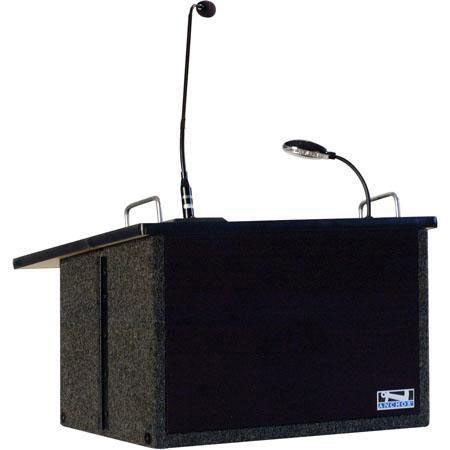

The Anchor Audio Acclaim ACL-7500U2 Lectern System is a portable, cost-effective surface mounted lectern system for presentations and speeches in conference rooms, schools, houses of worship and more. The Acclaim features a built-in 22 watt sound system, complete with gooseneck microphone, line/microphone inputs and output connections. A gooseneck lamp illuminates the entire work surface and the Acclaim will operate on both AC and DC Power.

The Anchor Audio WB-6000 is a 16-channel, diversity UHF body pack transmitter, made for use with the company's series of portable PA wireless products. The Anchor Audio Lectern Base is not only designed to provide support for the Anchor Audio Acclaim Lectern, the base also folds into a transport case for easy mobility and storage. The Anchor Audio WH-6000 is a 16-channel UHF wireless handheld transmitter for use with Anchor Audio portable PA systems.

The Anchor HBM-60 is a lightweight headband microphone designed for hands-free operation. The microphone features a cardioid polar pattern, which is effective in minimizing noise at the off-axis sections of the microphone. The cardioid pattern provides high gain before feedback making it suitable for use near monitor speakers. The microphone is fixed to a flexible boom for easy positioning and optimum pickup. The cable is terminated with a Switchcraft TA4F 4-pin mini XLR plug, compatible with Anchor wireless body pack transmitters.

Anchor Audio Acclaim Lectern Package Features

  • Lectern: Reach audiences of 500+
  • Lectern: 114 dB of crystal clear sound
  • Lectern: 16 Channel UHF diversity wireless microphone operation by Anchor Audio (on U1 and U2 models)
  • Lectern: Runs 7+ hours on a charge
  • Lectern: High fidelity sound from high efficiency amp & full-range speaker
  • Lectern: Sealed, lead-acid batteries & built-in charger
  • Lectern: Universal microphone input jack
  • Lectern: External speaker output jack
  • Lectern: Powers optional unpowered AN-1001X companion speaker
  • Lectern: Sensitive 24" removable electret gooseneck microphone
  • Lectern: Detachable 12 V LED reading light
  • Transmitter: 16 User-selectable UHF channels
  • Transmitter: PLL Synthesized for solid, drift-free transmission, 10 mW output
  • Transmitter: Mic/Line switch for transmission of mic or line level signals such as CD players or mixers
  • Transmitter: Tone Key Noise Suppression uses microphone ID to lock out interference
  • Transmitter: Integral belt clip
  • Headband Mic: Cardioid Polar Pattern: The cardioid polar pattern results in high gain before feedback, making it suitable for use near monitor speakers
  • Headband Mic: Flexible Boom: The microphone is stationed on a flexible boom for easy positioning and optimum pickup
  • Headband Mic: TA4F Connection: The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters

Key Features

  • Lectern: Reach audiences of 500+
  • Transmitter: PLL Synthesized
  • Transmitter: Integral belt clip

What's in the box:

  • ACL-7500U2 Lectern System
  • ACL-BASE
  • WB-6000 Bodypack Transmitter
  • WH-6000 Handheld Mic
  • HBM-TA4F Headband Mic
  • Gooseneck Mic
  • Gooseneck Lamp
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic/Base & 4 Year on Batteries)
