Anchor Audio Beacon Dual Basic Package Specifications

  • Speaker: Rated Power Output

    AC: 150 W
    DC: 125 W
    Maximum SPL at Rated Power: 120 dB

  • Speaker: Battery

    Two 12 V rechargeable, 9.0 Ah
    Full Recharge: Approximately 7 hours

  • Speaker: Frequency Response

    60 Hz to 15 kHz +/- 3 dB

  • Speaker: Line Output

    Post-Fader: Isolated, 600 Ohms, 1/4" phone

  • Speaker: AC Power Requirements

    100 to 240 VAC, 50/60 Hz, 300 W maximum

  • Speaker: USB

    5 V, 500 mA

  • Speaker: Microphone Inputs

    1 x Lo-Z (1 kOhms), balanced, XLR
    1 x 12 VDC condenser mic (phantom) power
    1 x Hi-Z (10 kOhms), unbalanced, 1/4" phone
    1 x Hi-Z (10 kOhms) unbalanced, 1/8" stereo

  • Speaker: Line In

    Unbalanced, stereo RCA

  • Speaker: Sensitivity

    For Rated Output
    Lo-Z Microphone: -52 dBV (2.5 mVrms)
    Hi-Z Microphone: -43 dBV (7.5 mVrms)
    Auxiliary (Line): -14 dBV (200 mVrms)

  • Speaker: Phantom Power

    36 V

  • Mic: Connector

    TA4F plug

  • Type of Beltpack Transmitter

    PLL synthesized UHF bodypack

  • Beltpack Transmitter: No Of Channels

    16

  • Transmitter: Type of Input Connector

    4-pin mini XLR male

  • Transmitter: Battery Type/Approx. Life

    2 x DC 1.5V AA (dry or rechargeable), 20 hours

  • Beltpack Transmitter: Level Control

    Yes

  • Beltpack Transmitter: Antenna Type

    Detachable Whip

  • Beltpack Transmitter: Frequency Range

    540-570 MHz

  • Dimensions (H x W x D)

    Beacon Speaker Closed: 28.5 x 18.0 x 12.5" (72.4 x 45.7 x 31.7 cm)
    Beacon Speaker Opened: 71.5 x 18.0 x 12.5" (181.6 x 45.7 x 31.7 cm)
    Beltpack Transmitter: 3.86 x 2.6 x 1.02" (98 x 66 x 26 mm)

  • Weight

    Beacon Speaker: 51 lbs (23 kg)
    Beltpack Transmitter: 7.2 oz (204 g)

About Anchor Audio Beacon Dual Basic Package

The Beacon Basic Package Dual comes with the Beacon Line Array that has built-in Bluetooth, two built-in 16 channel wireless receivers with your choice of two wireless mics and a built-in CD/MP3 combo player that accepts an SD Card, USB flash drive or 3.5 mm input for an iPod. The package also includes a mini cable to plug in iPod or an external audio source. The line array speaker folds up into a durable case that has wheels, a retractable handle and nylon storage bag. It unfolds in less than a minute and stands about 6 feet tall.

The lightweight array tower has eight 4" neodymium speakers and the base has three 8" subwoofers. It operates 6-8 hours on a single charge and there is a charging LED bar indicator on the back. The Beacon has a USB port for charging an MP3/iPod and has two universal microphone input jacks. There is no stand needed, just roll it into place. Use it at sporting events, graduations, outdoor camps, auditoriums and more!

Anchor Audio Beacon Dual Basic Package Features

  • Reach Crowds of 2500+
  • AC Mode = 150W / DC Mode = 125W
  • Eight 4" Neodymium Speakers
  • Three 8" Neodymium Woofers
  • Line Array Speaker with One Built-In Wireless Receiver
  • True AC/DC - 110/220V Power Supply
  • 120dB of Clear Sound
  • 5V USB Charging Port
  • Two Universal Microphone Input Jacks
  • Dual Built-in UHF Wireless with 16 User Selectable Channels
  • Patented, Lightweight Speaker Array with Snap Lock Connection
  • Durable Case with Wheels, Retractable Handle & Nylon
  • Proprietary Class D Amplifier
  • User Replaceable Batteries
  • Charging LED Bar Indicator
  • Operates 6-8 hours on a Single Charge
  • UV Treated / Fade Resistant Case

Key Features

  • Reach Crowds of 2500+
  • AC Mode = 150W / DC Mode = 125W
  • Eight 4" Neodymium Speakers
  • Three 8" Neodymium Woofers
  • True AC/DC - 110/220V Power Supply
  • 120dB of Clear Sound

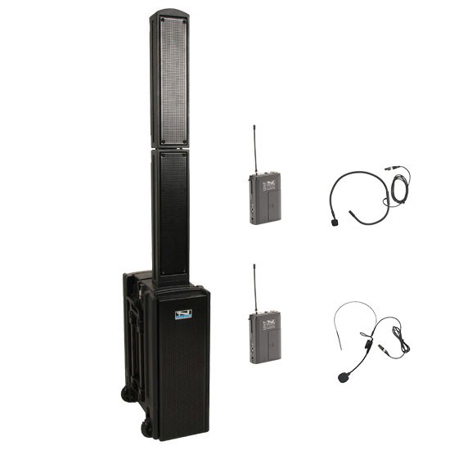

What's in the box:

  • BEA2-XU2 Beacon Line Array
  • CM-60 Collar Mic
  • HBM-TA4F Headband Mic
  • 2x WB-8000 UHF Belt Pack Transmitter
  • MINI-ST Stereo Miniplug Cable
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic)
