Anchor Audio Bigfoot Line Array Quad Basic Package, 2x WH-8000 & 2x HBM-TA4F Mic
See all Anchor Audio items

Anchor Audio Bigfoot Line Array Quad Wireless Basic Package with 2x WH-8000 Handheld Mic & 2x HBM-TA4F Headband Mic

SKU: AABGQ2XH2XHM
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Anchor Audio Go Getter 2 Deluxe AIR Package 2 w/GG2-AIR,WH-LINK,HBM-LINK,LM-LINK
$3,399.00
undefined undefined: Picture 1 regular
Anchor Audio Liberty 2 PA System with Bluetooth, AIR Transmitter & Dual Mic Rx
$2,400.00
$2,150.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio Bigfoot Quad Package Specifications

  • Speaker: Rated Power Output

    400 W, AC/DC

  • Speaker: SPL

    Maximum at Rated Power: 130 dB at 3.3" (1 m)

  • Speaker: Battery

    3 x 12 V rechargeable, 9.0 Ah

  • Speaker: Charge Time

    Approx. 8 hours

  • Speaker: Frequency Response

    100 Hz - 15 kHz, +/-3 dB

  • Speaker: Line Output

    Post Fader: 1/4" phone jack, 600 ohms, isolated

  • Speaker: Microphone Inputs

    XLR, Lo-Z (1 kOhm), balanced
    12 VDC condenser mic (phantom) power
    1/4" phone jack, Hi-Z (10 kOhms), unbalanced

  • Speaker: Line In

    1/4" and 1/8" stereo jacks, balanced

  • Speaker: AC Power Requirements

    100 - 240 VAC, 50 / 60 Hz, 300 W maximum

  • Speaker: USB Power

    5 V, 500 mA

  • Speaker: Sensitivity for Rated Output

    Lo-Z Microphone: -52 dBV (2.5 mVrms)
    Hi-Z Microphone: -43 dBV (7.5 mVrms)
    Auxiliary (Line): -14 dBV (200 mVrms)

  • Handheld Microphone: Channels

    16 x UHF

  • Handheld Microphone: Frequency Range

    540-570 MHz

  • HBM-TA4F Mic: Connector

    TA4F plug

  • Type of Beltpack Transmitter

    PLL synthesized UHF bodypack

  • Beltpack Transmitter: No Of Channels

    16

  • Transmitter: Type of Input Connector

    4-pin mini XLR male

  • Transmitter: Battery Type/Approx. Life

    2 x DC 1.5V AA (dry or rechargeable), 20 hours

  • Beltpack Transmitter: Level Control

    Yes

  • Beltpack Transmitter: Antenna Type

    Detachable Whip

  • Beltpack Transmitter: Frequency Range

    540-570 MHz

  • Dimensions

    Speaker Closed: 42.3 x 15.3 x 24.0" / 107.44 x 38.86 x 60.96cm
    Speaker Opened: 68.6 x 15.3 x 24.0" / 174.24 x 38.86 x 60.96cm
    Beltpack Transmitter (H x W x D): 3.86 x 2.6 x 1.02" (98 x 66 x 26 mm)

  • Weight

    Speaker: 75lbs / 34.02kg
    Beltpack Transmitter: 7.2 oz (204 g)

About Anchor Audio Bigfoot Quad Package

The Bigfoot Quad Package comes with the Bigfoot with built-in Bluetooth, four built-in 16 channel UHF wireless receivers with your choice of four wireless mics and a built-in CD/MP3 combo player. The line array speaker folds down into a durable case that has wheels. It unfolds in seconds and stands about 5 feet 7 inches tall. The line array consists of five 8" neodymium woofers and one 1" neodymium high efficiency compression driver.

It operates 6-8 hours on a single charge. The Bigfoot has a USB port for charging an MP3/iPod and has two universal microphone input jacks. There is no stand needed - just roll it into place. Use it at sporting events, graduations, outdoor camps, auditoriums and more!

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • BIG2-XU4 Bigfoot Line Array
  • 2x WH-8000 UHF Wireless Handheld Mic

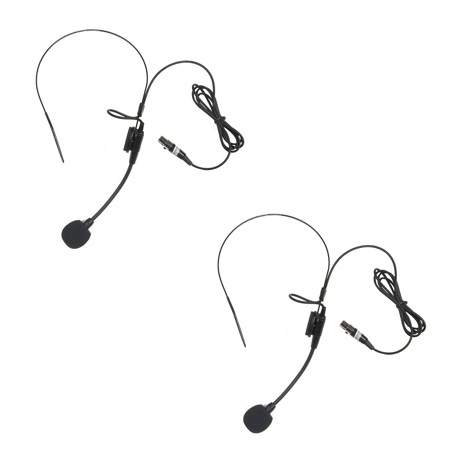

  • 2x HBM-TA4F Headband Mic
  • 2x WB-8000 UHF Belt Pack Transmitter
  • Miniplug Cable
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic)
