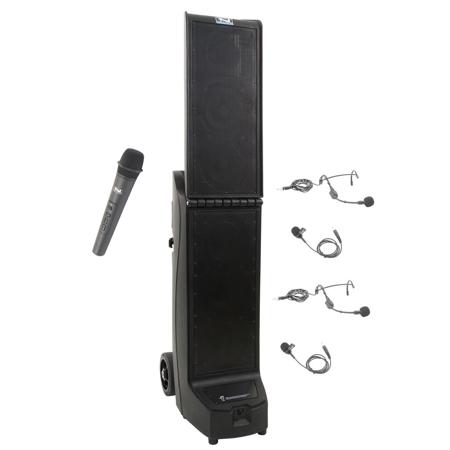

Anchor Audio Bigfoot 2 Triple Wireless Package with 1x WH-LINK Handheld Mic, 2x HBM-LINK Headband Mic & 2x LM-LINK Lapel Mic

SKU: AABIGTRIPHBB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Anchor Audio Bigfoot 2 Triple Package Specifications

Sound System

Sound System

Jump to...
  • Perfect for

    Indoor & Outdoor Events, Football Field, Schools & Universities, Sporting Events, Marching Bands, Graduations, Large Auditoriums, Assemblies, House of Worship, Parks & Recreation, Auctions, Military Training & Ceremonies, Fitness Centers, Parades & Community Celebrations, Ceremonies, Public Gatherings, Weddings and more!

  • Rated Power Output

    300W AC/DC RMS

  • Maximum SPL

    130 dB at 1m

  • Frequency Response

    55 Hz - 16 kHz +/- 3 dB

  • Wireless Frequency

    Wireless Microphone: 1.9GHz DECT
    AIR Receiver/Transmitter: 902 to 928 MHz

  • Wireless Range

    Up to 300' (line of sight)

  • Input Sensitivity

    Lo-Z Microphone: -52 dBV (2.5 mVrms)
    Hi-Z Microphone: -43 dBV (7.5 mVrms)
    Auxiliary: -14 dBV (200 mVrms)

  • Mic Inputs

    Lo-Z, balanced, XLR & 1/4"
    34V DC condenser mic (phantom) power
    Hi-Z (10 KOhms), unbalanced, 1/4" phone

  • Line Inputs

    Balanced Mono 1/4" & Unbalanced Stereo 3.5 mm

  • Line Output (post fader)

    Isolated, 600 Ohms, 1/4" phone

  • AC Power Reqs

    100 - 240 VAC, 50/60 Hz, 300W max

  • Battery

    3x 12V LFP rechargeable batteries, 7 Ah

General

Jump to...
  • Dimensions (HxWxD)

    Sound System:
    Closed: 42.5 x 14.0 x 23.0" (107.95 x 35.56 x 58.42cm)
    Opened: 68.5 x 14.0 x 23.0" (173.99 x 35.56 x 58.42cm)

  • Weight

    Sound System: 63.5 lbs (28.80kg)

About Anchor Audio Bigfoot 2 Triple Package

Portable Sound system
The Bigfoot Line Array is the newest, loudest and most powerful portable sound system on the market. Designed to cover a football field, this thunderous battery powered system is up to any challenge. With a line array consisting of five 8" neodymium speakers and one high efficiency neodymium compression driver, the Bigfoot is ideal for large events and easily sets up in seconds.

• Reaches crowds up to 5,000+
• Connect up to four wireless mics
• Anchor AIR transmitter
• Built-in Class 1 Bluetooth
• Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
• Onboard mic storage bag
• Heavy duty wheels for easy transport
• Five 8" neodymium woofers
• One neodymium compression driver
• Designed to cover a football field or large auditorium

Triple Package
The Bigfoot Triple Package includes BIG2-XU4 and choice of three wireless handheld mics and/or headband and lapel mics with belt packs.

- WH-LINK Wireless Handheld Microphone -
The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. The WH-LINK handheld microphone is used with the AnchorLink series.

- WB-LINK Wireless beltpack transmitter -
The WB-LINK is a wireless beltpack transmitter with a 3.5mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series. For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the: HBM-LINK, CM-LINK, EM-LINK, LM-LINK.

- HBM-LINK headband microphone -
The HBM-LINK follows your head when turned and flawlessly tracks your voice. Wear it around the back of head and over your ears, so the microphone is resting right in front of your mouth. The headband microphone has a 3.5 mm connector plug. For a handsfree, wireless experience, use it with a beltpack transmitter such as the: WB-LINK.

- LM-LINK Lapel Microphone -
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug. For a handsfree, wireless experience, use it with a beltpack transmitter such as the: WB-LINK.

What's in the box:

  • BIG2-XU4 Bigfoot 2 Portable Line Array PA Sound System
  • WH-LINK Wireless Handheld Mic
  • 2x WB-LINK Wireless Beltpack Transmitter
  • 2x HBM-LINK Headband Mic
  • 2x LM-LINK Lapel Mic
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic)
