Anchor Audio PortaCom Four User Package with 4x Single Headsets & 4x 50' Cables
See all Anchor Audio items

Anchor Audio PortaCom Four User Wireless Package with 4x Single Headsets and 4x 50' Cables

SKU: AACO40FC4S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio PortaCom Four User Pack Specifications

  • Power Console: Output Connectors

    3-pin XLR - 4 male

  • Power Console: Voltage Output

    22 VDC to belt packs

  • Power Console: Max. Current Capacity

    400mA

  • Power Console: Input Power Requirement

    24VAC, 50/60Hz, 750mA; 30 - 40VDC, 500mA

  • Power Console: Input Voltage

    120VAC, 60Hz

  • Power Console: Output Voltage/Current

    24VAC at 750mA

  • Belt Pack: Input Line Connector

    3-pin XLR - female

  • Belt Pack: Headset Connector

    4-pin XLR - male

  • Belt Pack: Bridging Impedance

    10k ohms min

  • Belt Pack: DC Current Requirements

    20mA max

  • Operating Distance

    Up to 2,500 ft (total cable length)

  • Normal Line Level

    -15 dBV

  • Signal-to-Noise Ratio

    -65 dB

  • Distortion

    < 0.5%

  • Connecting Cables

    Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft)

  • Headset: Connector

    4-pin XLR - female

  • Headset: Microphone Type

    Dynamic, low impedance

  • Dimensions

    Power Console: 1.75" x 8.5" x 4.5" / 45 x 216 x 114 mm
    Headset: 3.5" x 7.4" x 7.9" / 8.9 x 18.8 x 20 cm
    Belt Pack: 3.8" x 2.75" x 1.25" / 96.5 x 69.85 x 31.75 mm

  • Weight

    Power Console: 57.6 oz / 1.63 kg / 0.37 kg
    Headset: H-2000S: 13 oz / 0.37 kg
    Belt Pack: 0.40 oz / 0.0113 kg

  • UPC Code

    643906939960

About Anchor Audio PortaCom Four User Pack

Anchor Audio COM-40FC/C/4S is a flexible, high-performance wired intercom system that is built smart and simple. It features two channels and is expandable, portable or rack mountable. Best of all, it is priced to sell to the junior high school theater, local cable studio, church setting, or to the high school football coach.

Anchor Audio PortaCom Four User Pack Features

  • Two Channel - Wired Full Duplex System
  • AC/DC Operable
  • Portable or Rackmountable (One U Rack Space)
  • Durable Lightweight Metal Packs
  • Standard 3-Pin XLR Microphone Cables
  • Easy to Setup and Operate
  • Comfortable & Lightweight Noise Cancelling Headsets

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two Channel - Wired Full Duplex System
  • AC/DC Operable
  • Portable or Rackmountable (One U Rack Space)
  • Durable Lightweight Metal Packs
  • Standard 3-Pin XLR Microphone Cables
  • Easy to Setup and Operate

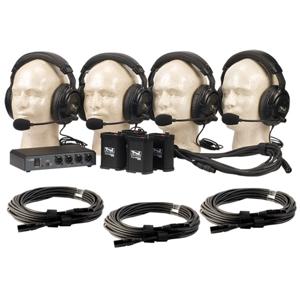

What's in the box:

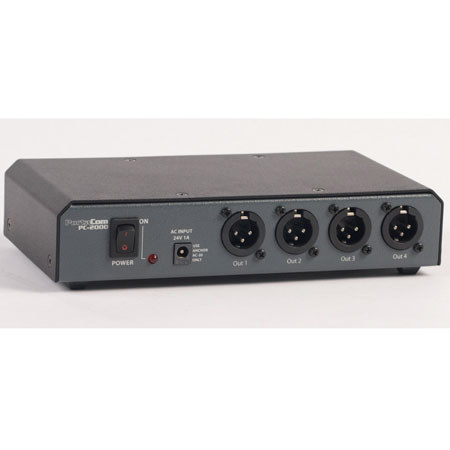

  • PC-2000 Power Console
  • 4x H-2000S Single Headsets
  • 4x BP-200 Belt Packs
  • 4x EX-50M 50' Cables
  • Sturdy Cardboard Case
  • Anchor Audio 6 Year Limited Warranty (2 Year on Mic)
