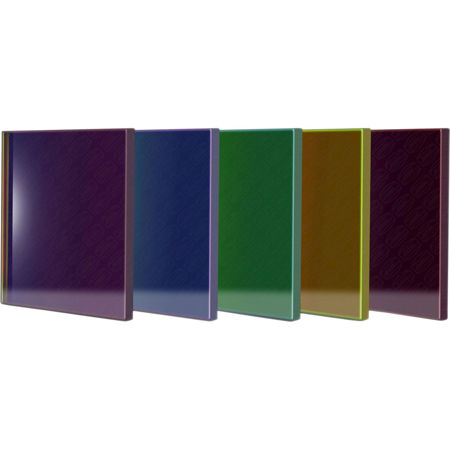

Baader Planetarium 4mm UBVRI CCD Photometric Imaging Filter Set, Includes U/B/V/R/I Filters, 50x50mm, Unmounted

SKU: AAFBVRISSQ50 MFR: FUBVRIS-SQ50
Earn VIP Reward Points

Key Features

  • Capture stunning astrophotos with this Baader UBVRI CCD filter set for photometry.
  • Achieve precise measurements using these high-quality photometric filters, unmounted.
  • Enjoy durable construction with dielectrically coated, planeoptically polished filters.
  • Optimize light transmission with filters designed to match Johnson/Bessel standards.
  • Explore specialty UBVRI filter usage with a 50x50mm square filter shape.
  • Enhance your telescope's blocking performance with these bandpass telescope filters.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$149.99

2 Year

$229.99

3 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Baader Planetarium Photometric Filter Specifications

  • Transmission Range

    Transmission range after Johnson/Bessel

  • Filter Thickness (Without Cell)

    4 mm

  • Cwl (Central Wavelength)

    Bessel

  • Ar-Coating

    Dielectrically Coated, Planeoptically Polished

  • Filter Size

    50 x 50 mm

  • Filter Usage

    Specialty, UBVRI

  • Filter Mounted

    Unmounted

  • Type Of Filter

    Bandpass

  • Filter Shape

    Square

  • Weight

    5.11 oz (145g)

About Baader Planetarium Photometric Filter

Make your astrophotography stand out with the Baader 4mm UBVRI CCD Photometric Imaging Filter Set. This set, which includes U/B/V/R/I filters, is designed with a proprietary technology that strictly adheres to the classic Johnson/Bessel transmission specifications.

Unlike traditional filters that often have a thickness of 5mm or more, these Baader filters are crafted with dielectric layers and absorption glasses, resulting in a sleeker 4mm thickness. This reduction in thickness not only makes these filters lighter but also makes them more compatible with modern filter wheels, a significant improvement over the original 5 or 6mm thick stacks of pure colored glass.

In the past, UBVRI filters were primarily used for photodetectors, and the potential for internal reflections caused by the thick stack of cemented absorption glasses was often overlooked. However, Baader's innovative approach combines dielectric coatings with a mix of short pass and long pass filters, ensuring perfect off-band blocking into the far ends of the spectrum. This steep off-band-blocking would not be possible with pure dielectric layers over such a large transmission range.

In essence, the Baader 4mm UBVRI CCD Photometric Imaging Filter Set offers a superior solution for modern astrophotographers, providing the perfect balance between performance and practicality. This unmounted 50x50mm filter set is a must-have for anyone serious about capturing the cosmos in all its glory.

Baader Planetarium Photometric Filter Features

  • 50x50 Baader UBVRI - Filterset, 1pc each of U, B, V, R, I Filter
  • Photometric Johnson/Bessel filter system
  • partial dielectric design with BBAR minimized reflections
  • Planeoptically polished, 4mm glass thickness
  • Non-ageing sealed coating edges

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Capture stunning astrophotos with this Baader UBVRI CCD filter set for photometry.
  • Achieve precise measurements using these high-quality photometric filters, unmounted.
  • Enjoy durable construction with dielectrically coated, planeoptically polished filters.
  • Optimize light transmission with filters designed to match Johnson/Bessel standards.
  • Explore specialty UBVRI filter usage with a 50x50mm square filter shape.
  • Enhance your telescope's blocking performance with these bandpass telescope filters.

What's in the box:

  • U Photometric Filter
  • B Photometric Filter
  • V Photometric Filter
  • R Photometric Filter
  • I Photometric Filter
  • Baader Planetarium 1 Year Limited Warranty
