Baader Planetarium Hyperion 68 Degree Eyepiece Set (Complete)

Baader Hyperion 68 Degree Modular Eyepiece

Make the most from your telescope!

Most telescopes are supplied with one or two simple eyepieces in the set, which do not exploit the performance of the optics. Moderate contrast and sharpness and small field of vision quickly spoil the fun of the sky observation. With Hyperion eyepieces you get everything out of your telescope!

They are suitable for photo! Keep your Astro eyepiece impressions forever by connecting the cameras and camcorders at the Hyperion!

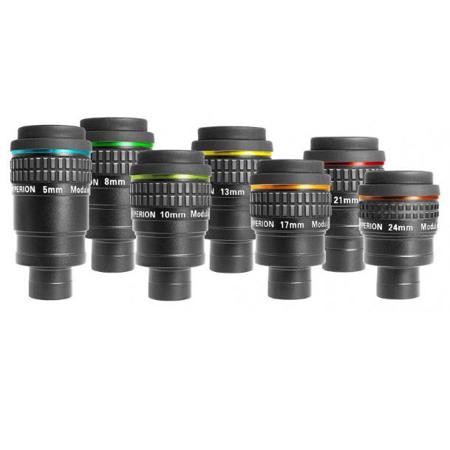

You can distinguish between the series with "Prime lenses" f = 5 mm, 8 mm, 10 mm, 13 mm, 17 mm, 21 mm, 24 mm, the two great eyepieces aspheric 31 mm and 36 mm, as well as the Hyperion zoom eyepiece with infinitely variable focal length of 8 mm to 24 mm.

A variety of ways

Connection of cameras and camcorders

The Hyperion eyepieces have above ("eye-side") two system thread. To expose them, either the eyecup or the large thread protection ring must be removed. For one, it's an M43 thread and continue to a second with SP54 thread; the M43 thread (system thread 1) accessories, E.g. for the normal eyepiece projection is used for connection of T2. A M34 on T2 transition ring (Hyperion M43/T-2) is to switch threads between them (known as afocal projection), the thread SP 54 (system thread 2) is used for connecting digital cameras or camcorders, where the lens can not be removed.

Focal length variability and filter insert

A variety of additional Hyperion focal lengths can be obtained by using our 2" fine tuning extensions rings 14mm and 28mm, or even with our 2" eyepiece filter set. Thus an eyepiece of 5mm focal length can be converted into one of 2.6mm focal length - without loss of sharpness - above all, because no additional lenses are introduced into the bean, which is unavoidable when using a Barlow lens. Also you can of course astronomical 1-1/4" eyepiece filters in the 1-1/4" screwing the eyepiece barrel.

Further focal modification there are tweaking our rings (FTR) with 14 - and 28mm length. The different possible focal lengths when removing the first lens group, and in combination with filters and fine tuning rings can be found in the table above.

Due to the wealth of functions, there is the Baader Hyperion eyepieces own, 6-page instruction manual to explain the variety of connection options of cameras and all the possibilities of the focal length fine tuning.

Hyperion fixed focal length eyepieces on the Zeiss Diascope spotting scope

The Hyperion fixed focal length eyepieces are also at Zeiss Diascope spotting scopes can be used. You will need the Baader Diascope eyepiece bayonet 1-1/4 "Adapter (#2454500) for the connection of 1-1/4" Astro eyepieces on the Zeiss Diascope spotting scopes. He is using the 1-1/4" socket of the Hyperion eyepiece pushed and fixed by means of 3 small screws on the socket. The Diascope spotting scope is the Zeiss bayonet ready available, so that the complete unit Hyperion Zeiss spotting scope used eyepiece and Baader bayonet adapter directly into the Zeiss spotting scope.

Baader Phantom Coating Group

Baader Phantom Group Coating is a 7-layer broadband coating with extremely low residual reflection. The term "Group" indicates that for each type of glass of the lenses, which come into the Hyperion eyepieces to apply, each effective anti-reflection layer system was expected.

All these various anti-reflection coatings on each glass surface were then optimized so that they are most effective where the human eye has its highest sensitivity at night - at about 520 nm - in the green region of the spectrum.

The best anti-reflection appears almost colourless: this proves that the anti-reflective coating over the entire visible spectrum is equally good effect. Phantom Group anti-reflection coatings are - depending on the type of glass - almost entirely colourless. In this way it is ensured that the least amount of light for a night-adapted eye is lost without any stray light.

If a multi-coated lens (eyepiece or lens) with direct view from the front shows a strong green reflex, then it is not phantom group to a Baader anti-reflective coating! The intensive green reflex is a sign of a little sophisticated coating technique and means that in the spectral range between 500-550 nm the most light is reflected, i.e. is lost.
