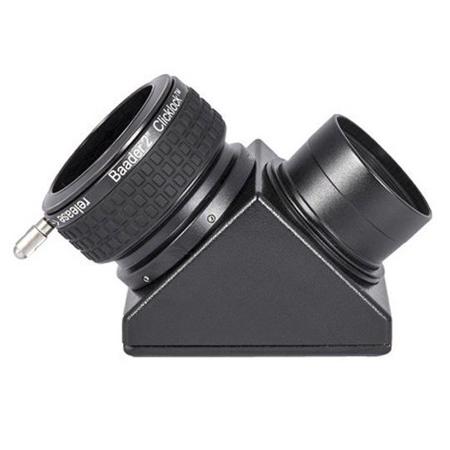

Baader Planetarium 2" BBHS Mirror Star Diagonal with 2" ClickLock Clamp

SKU: AAMAX2S MFR: MAX-2S
Earn VIP Reward Points

Key Features

  • Enjoy brighter images with this 2" mirror diagonal, featuring high reflectivity for optimal clarity.
  • Achieve secure eyepiece connections using the innovative 2" ClickLock clamp system on this diagonal.
  • Experience versatile compatibility with multiple thread and barrel connections for your telescope.
  • Observe with confidence thanks to the robust BBHS coated mirror, ensuring long-lasting performance.
  • Easily switch accessories with the user-friendly ClickLock, designed for simple and secure adjustments.
  • Get erect, mirror-inverted images, perfect for terrestrial viewing with enhanced optical performance.
See More Product Details
On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$52.99

2 Year

$87.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Daniel M : Reviewed as one of the best diagonalsBRUCE K : because it's the bestErnest J : I have the Baader click lock clamp for the telescope that the diagonal sets into. And i also have 7 2” Baader filters . I highly recommend Baader products. High quality.

Reviews about this item

Review Summary

2018-07-25T12:29:12

Rated 5 out of 5

Perfect, like all Baader equipment.

Solid, clear, obvious quality jump from cheaper brands.

ALEXANDER T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Baader Planetarium BBHS Mirror Star Diagonal Specifications

  • Optical Design

    Mirror Diagonal

  • Connection - Lens Sided

    Inner: Thread, M48, M55, 2"
    Outer: Barrel, Dovetail ring, S58, 2"

  • Inner Connection

    Thread, Clamp, M55, 2" (Eyepiece/-Camera-Sided)

  • Reflection Surface

    BBHS coated, Dielectrically protected

  • Image Orientation

    Erect image, Mirror inverted

  • Optical Tube Length

    112

  • Clamping System

    ClickLock

  • Deflection Angle

    90 Degree

  • Inner Diameter

    47.5mm (Clear Aperture)

  • Weight

    1 lb (0.451kg)

  • UPC Code

    4047825033543

About Baader Planetarium BBHS Mirror Star Diagonal

FEATURED REVIEWS

Perfect, like all Baader equipment.

By ALEXANDER T.

Solid, clear, obvious quality jump from cheaper brands.

Explore the exceptional quality of the Baader 2" BBHS Mirror Star Diagonal with 2" ClickLock Clamp. This advanced optical device, featuring a broadband hardsilver (BBHS) coating with a dielectric protective overcoat, elevates your viewing experience into the silver category. The upgraded black housing now incorporates a 2" ClickLock clamp for secure and easy handling.

The heart of this star diagonal is the Sitall glass ceramic mirror, now enhanced with our all-new protected hard-silver coating. This innovative combination ensures full-spectrum reflection between 400 and 2000 nm, eliminating light loss and providing superior clarity. This makes it an ideal choice for those seeking the best product or those working in the IR-passband.

Historically, silver coatings have been favored for their high reflectivity for over 300 years. However, the challenge has always been the unprotected silver's susceptibility to aging and tarnishing. Our solution is a new, proprietary, and weatherproof coating of hardened silver. This coating, in combination with the temperature-resistant Sitall, delivers an unparalleled viewing experience. You'll experience no light loss and a total absence of haze, resulting in a crystal-clear image.

Experience the difference for yourself and discover why our hard-silver BBHS-star-diagonals are considered the absolute best in star diagonals. This product is a testament to our commitment to innovation and quality, offering you the ultimate in precision and performance.

Baader Planetarium BBHS Mirror Star Diagonal Features

  • 2" BBHS star diagonal with 2" ClickLock terminal and black case. Provides greatest reflectance over most spectral range from 390 to 2000nm
  • Much higher in brilliance than standard dielectric coatings
  • BBHS = Broadband Hardsilver coating with dielectric protective overcoating
  • T-2 BBHS-Sitall zenith mirrors on both sides with T-2 Photo thread

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Enjoy brighter images with this 2" mirror diagonal, featuring high reflectivity for optimal clarity.
  • Achieve secure eyepiece connections using the innovative 2" ClickLock clamp system on this diagonal.
  • Experience versatile compatibility with multiple thread and barrel connections for your telescope.
  • Observe with confidence thanks to the robust BBHS coated mirror, ensuring long-lasting performance.
  • Easily switch accessories with the user-friendly ClickLock, designed for simple and secure adjustments.
  • Get erect, mirror-inverted images, perfect for terrestrial viewing with enhanced optical performance.

What's in the box:

  • 2 " BBHS Mirror Star Diagonal
  • 2 " ClickLock Clamp
  • Baader Planetarium 2 Limited Year Warranty
