Anchor Audio PRO-540 ProLink with 1x Dual Muff Headset & 3x Single Muff Headsets
See all Anchor Audio items

Anchor Audio PRO-540 ProLink Four User Wireless Package with 1x Dual Muff Headset and 3x Single Muff Headsets

SKU: AAPRO5401D3S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio PRO-540 ProLink Four User Specifications

  • H-2000 (dual): Frequency Range

    150 Hz - 8 kHz

  • H-2000 (dual): Microphone Type

    Low Impedance, Noise-Cancelling Dynamic

  • H-2000 (dual): Mic Frequency Response

    150 Hz - 8 kHz

  • H-2000 (dual): Impedance

    150 Ohms

  • H-2000 (dual): Connectors

    1 x 4-pin XLR Female

  • H-2000 (dual): Cable Length

    3'(ft.) (1 m)

  • H-2000S (single): Frequency Range

    150 Hz - 8 kHz

  • H-2000S (single): Microphone Type

    Low Impedance, Noise-Cancelling Dynamic

  • H-2000S (single): Frequency Response

    150 Hz - 8 kHz

  • H-2000S (single): Impedance

    150 Ohms

  • H-2000S (single): Connectors

    1 x 4-pin XLR Female

  • H-2000S (single): Cable Length

    3'(ft.) (1 m)

  • BP-500M Beltpack: RF Frequency Range

    902-928MHz

  • BP-500M Beltpack: Modulation

    FSK

  • BP-500M Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500M Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500M Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • BP-500R1 Beltpack: RF Frequency Range

    902-928MHz (Frequency 1)

  • BP-500R1 Beltpack: Modulation

    FSK

  • BP-500R1 Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500R1 Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500R1 Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • BP-500R2 Beltpack: RF Frequency Range

    902-928MHz (Frequency 2)

  • BP-500R2 Beltpack: Modulation

    FSK

  • BP-500R2 Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500R2 Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500R2 Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • BP-500R3 Beltpack: RF Frequency Range

    902-928MHz (Frequency 3)

  • BP-500R3 Beltpack: Modulation

    FSK

  • BP-500R3 Beltpack: Range

    Up to 500' (152.4 m) (Line of Sight)

  • BP-500R3 Beltpack: Antenna

    1/2 Wavelength Dipole

  • BP-500R3 Beltpack: Power

    9VDC, 1.2ADC (3 x AA Batteries)
    Up to 12 Hours of Operation

  • Dimensions

    BP-500M Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
    BP-500R1 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
    BP-500R2 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)
    BP-500R3 Beltpack: 4.5 x 6.25 x 3.75" (114 x 159 x 95mm)

  • Weight

    BP-500M Beltpack: 15 oz (425.2 g) (With Batteries)
    H200S Single: 13 oz / 368 g
    H200 Dual: 16 oz (453.6 g)
    BP-500R1 Beltpack: 15 oz (425 g) (With Batteries)
    BP-500R2 Beltpack: 15 oz (425 g) (With Batteries)
    BP-500R3 Beltpack: 15 oz (425 g) (With Batteries)

About Anchor Audio PRO-540 ProLink Four User

The Anchor Audio PRO-540/1D3S is a digital wireless intercom system that is easy to configure and easy to operate. The system allows duplex communication by four users with a master belt pack and three remote belt packs. It has a 500 ft line of sight range and built-in Bluetooth capability. The transmitter and receiver operate in the FCC license 902-928 MHz range without the need for a base station.

The ergonomically designed belt packs have a sturdy XLR headset jack, two heavy duty antennas, headset volume control, microphone gain control, A/B channel selection and PTT or always on mode. The out of range LED indicator tells each user when to move closer to the master belt pack. A gang charger is available to charge up to four belt packs on one device. Use ProLink backstage at a school play, in a news studio, on the football field and more.

Anchor Audio PRO-540 ProLink Four User Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • Push to Talk or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED
  • Charging Indicator LED
  • Rechargeable Batteries Included
  • Gang Charger for Four Belt Packs
  • FCC License
  • Bluetooth Compatibility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • Push to Talk or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED

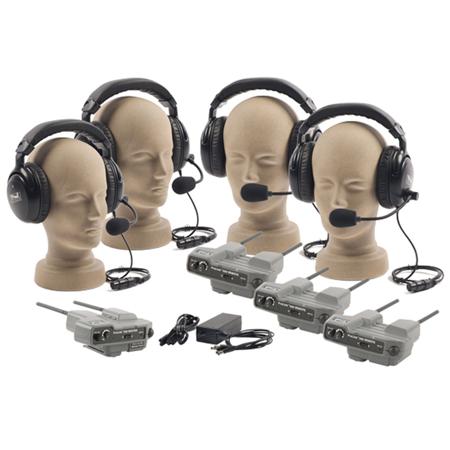

What's in the box:

  • 1x Dual Muff Headsets
  • 3x Single Muff Headsets
  • BP-500M Master Belt Pack
  • 3x Remote Belt Packs (BP-500R1/R2/R3)
  • GC-500 Gang Charger and Case
  • Rechargeable Batteries
  • Anchor Audio 2 Year Warranty
