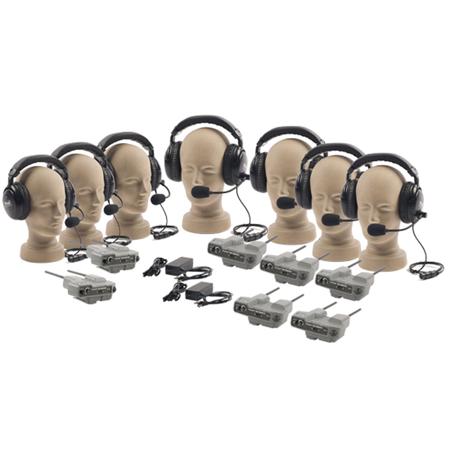

Anchor Audio PRO-570 ProLink Seven User Wireless Package with 1x Dual Muff Headset and 6x Single Muff Headsets

SKU: AAPRO5701D6S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Anchor Audio PRO-570 ProLink 7 User Specifications

  • Belt Pack: RF Frequency Range

    902-928MHz

  • Belt Pack: Modulation

    FSK

  • Belt Pack: Range (line of sight)

    Duplex 500' / 152.4 m

  • Belt Pack: Antenna

    1/2 - wavelength dipole

  • Belt Pack: Power Supply

    9VDC, 1.2ADC

  • Belt Pack: Battery Life

    12 hours

  • Drivers

    Dynamic, 40mm

  • Impedance

    300 Ohms +/- 15%

  • Frequency Response

    20Hz - 20kHz

  • SPL

    91dB +/- 3dB

  • Rated Power

    > 40mW

  • Distortion

    < 5%

  • Microphone

    Dynamic, Uni-directional, Low impedance

  • Microphone Sensitivity

    Referenced to 0dB=1V/ ubar, 1kHz
    Min -85 dB / Typical -83 dB / Max -81 dB

  • Mic Frequency Response

    200Hz - 12kHz

  • Connector Plug

    4-pin XLR, female

  • Bluetooth

    Range: 10-20 ft LOS
    Frequency: 2.4 GHz

  • Dimensions

    Belt Pack: 4.5" x 6.25" x 3.75" (114.3 x 158.75 x 95.25 mm)

  • Weight

    Belt Pack: 15 oz / 425.24g (with batteries)
    Headset: 16 oz /453.59g
    Single Headset: 13 oz / 368.5g

About Anchor Audio PRO-570 ProLink 7 User

The Anchor Audio PRO-570/1D/6S is a digital wireless intercom system that is easy to configure and easy to operate. The system allows duplex communication by seven users with two master belt pack and five remote belt packs. It has a 500 ft. line of sight range and a built-in Bluetooth capability. The transmitter and receiver operate utilizing in the FCC license free 902-928 MHz range for the U.S. without the need for a base station. The ergonomically designed belt packs have a sturdy XLR headset jack, two heavy duty antennas, headset volume control, microphone gain control, A/B channel selection and PTT or Always On mode. The out of Range LED indicator tells each user when to move closer to the master belt pack.

Anchor Audio PRO-570 ProLink 7 User Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • "Push to Talk" or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED
  • Charging Indicator LED
  • Rechargeable Batteries Included
  • Gang Charger for Four Belt Packs
  • FCC License Free
  • Bluetooth Compatibility
  • 500 ft. Line of Sight Wireless Communication

Key Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • "Push to Talk" or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED

What's in the box:

  • 1x Dual Muff Headset
  • 6x Single Muff Headset
  • 2x Master Belt Pack (BP-500M)
  • 5x Remote Belt Packs (BP-500R's)
  • 2x GC-500 Gang Charger
  • Sturdy Cardboard Carrying Case
  • Rechargeable Batteries
  • Anchor Audio 2 Year Warranty
