Anchor Audio WR-EXT500 External Wireless Receiver, 540-570MHz
See all Anchor Audio items

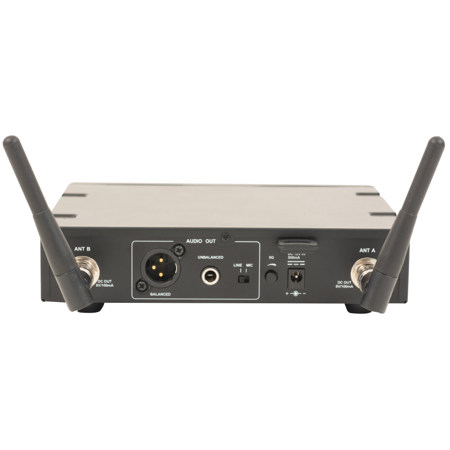

Anchor Audio WR-EXT500 External Wireless Receiver, 540-570MHz

SKU: AAWREXT500
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Anchor Audio WR-EXT500 Specifications

  • Frequency Range

    UHF 540 - 570 MHz (Regionally Selected)

  • Case

    Half 19" EIA Rack Metal Case

  • Oscillator

    PLL Synthesized

  • Modulation

    FMS/N Radio> 100 dB, at 200 KHz deviation and 60 dBmicro V antenna input

  • Image & Spurious Rejection

    70 dB minimum

  • Receiving Sensitivity

    At 2micro V over 52 dB S/N ratio

  • AF Response

    80 Hz to 18 KHz

  • T.H.D.

    <1% (at 1 KHz)

  • IF Frequency

    1st: 243.95 MHz
    2nd: 10.7 MHz

  • Dynamic Range

    >100 dB

  • Tone Signal

    32.768K Hz

  • Audio Output

    Balanced & Unbalanced

  • Power Supply

    DC 12V

  • Current Consumption

    260 +/- 10 mA

  • Dimensions (H x W x D)

    1.65 x 7.9 x 7.2" (4.2 x 20 x 18.3cm)

  • Weight

    2.05 lbs (930g)

  • UPC Code

    819941016410

About Anchor Audio WR-EXT500

The Anchor Audio WR-EXT500 is an external wireless receiver - requires AC power (compatible with UHF-EXT500 series: 540 - 570 MHz). A PLL synthesized wireless microphone system that operates in the 540 - 570 MHz UHF band frequency with up to 700 selectable channels.

Anchor Audio WR-EXT500 Features

  • 700 Selectable Channels
  • Set Interference-free Channels by using Automatic Frequency Setting
  • PLL Synthesized
  • 540 - 570 MHz
  • Built-in Talk/Mute Button

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 700 Selectable Channels
  • Set Interference-free Channels by using Automatic Frequency Setting
  • PLL Synthesized
  • 540 - 570 MHz
  • Built-in Talk/Mute Button

What's in the box:

  • WR-EXT500 External Wireless Receiver
  • Anchor Audio 2 Year Limited Warranty
