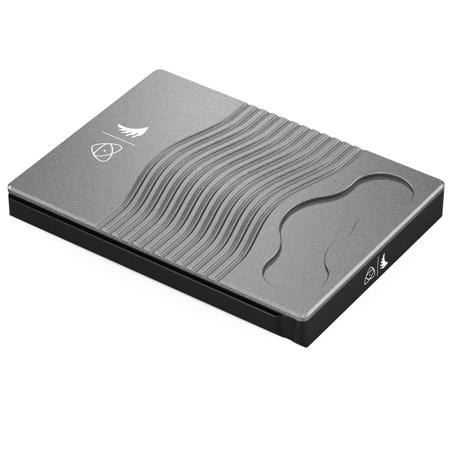

Angelbird AtomX 4K RAW 500GB Atomos SATA III Recording SSD
See all Angelbird items

Angelbird AtomX 4K RAW 500GB Atomos SATA III Recording SSD

SKU: AB4KRAWATOM5

This item is no longer available.

Recommended Alternatives

Angelbird AV PRO MK3: Picture 1 regular
Angelbird AV PRO MK3 2TB 2.5" SATA III Recording SSD
$549.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Angelbird AtomX 4K RAW Specifications

  • Compatibility

    Shogun
    Shogun Inferno
    Shogun Flame
    Ninja Assassin
    Ninja Flame Recorders

  • Capacity

    500GB

  • Sustained Read Speed

    Up to 560 MB/s

  • Sustained Write Speed

    Up to 520 MB/s

  • IOPS 2

    Up to 86,000

  • Access Time (R/W)

    Approx. 65 Mus, 40 Mus

  • MTBF

    1,500,000 hours

  • Data Reliability

    Built-in EDC
    ECC function

  • Data Retention

    10 years at 25 deg.

  • Endurance

    Up to 120TBW

  • Certifications

    RoHS, CE and FCC compliant, REACH

  • DC input voltage

    5V +/- 10%

  • Power usage

    Idle: 1.35W
    Max: 4.7W

  • Interface

    SATA 6Gb/s, 3Gb/s and 1.5Gb/s supported, SATA 3.0 compliant

  • Over provisioning

    Approx. 9 %

  • Functions

    Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ, adaptive thermal protection

  • Shock resistance

    1000 G/0.5ms (operating)

  • Vibration resistance

    2.17 GRMS (operating)

  • Operating Temperature

    -20 to 105 deg. C (-4 to 221 deg. F)

  • Storage Temperature

    -40 to 85 deg. C (-40 to 185 deg. F)

  • Operating Humidity

    5 % to 95 % non-condensing

  • Dimensions

    104 x 75.5 x 11.7mm (4.09 x 2.97 x 0.46")

  • Weight

    Approx. 220g (7.76 oz)

  • UPC Code

    812937021924

About Angelbird AtomX 4K RAW

Ready for anything your Atomos recorder can throw at it. Records high frame rates and raw CDNG files with ease, thanks to the unique feature set and its sustained write speed up to 510MB/s. The Master Caddy 4K RAW is a custom designed SSD for Atomos products that integrates the Master Caddy rails into a rock solid aluminum body, quick grip release and unique Angelbird Stable Stream design for recording high data rate CDNG RAW and 4Kp60 video recordings.

Note:

For full compatibility please ensure that your Atomos recorder is upgraded to at least firmware V8.1.

Angelbird AtomX 4K RAW Features

  • Up to 560 MB/s, Up to 86.000 IOPS
  • Adaptive thermal protection
  • Power smoothing
  • ESD & overload protection
  • CNC worked
  • Host power loss protection
  • Shock & temperature proof
  • Sticker-free environmentally friendly
  • Rock-solid build
  • Stable Stream
  • Developed for ATOMOS
  • X-ray & magnetic proof
  • 4K60P / HD240 / 4K30P / CDNG
  • 3-Year limited warranty

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Angelbird AtomX 4K RAW 500GB Atomos SATA III Recording SSD
  • Angelbird 3 Year Limited Warranty
