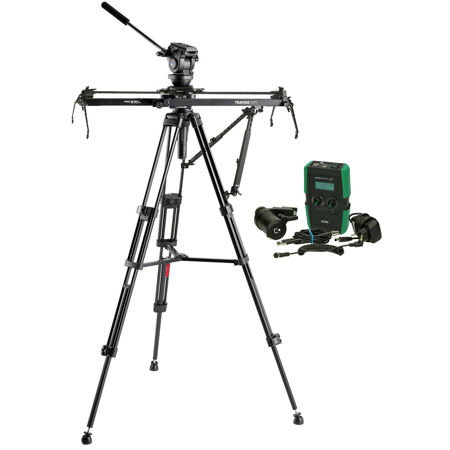

Acebil Travigo 39.4" 1000Pro Slider Kit with i-705DX Dual Tripod System, HSTA-2 Dual Support Arm, Smart Eye T1000, HDN-DC Drive, Supports 33 Lbs

Travigo 1000Pro
Travigo Slider is a professional equipment perfect for smooth shots during camera movement. Suitable for light cameras and photo cameras. Number of mounting holes guarantee universality of our device and provide the user with great configuration possibilities. Aluminum construction of the rail guarantees strength and lightness of the device. There are two stainless steel (INOX) bars inside the rail. Specially designed cart that moves along the rail carries the camera and leads it towards the object that is being filmed.

The cart is equipped with three bearinged rollers made of stainless steel (INOX). Additionally, rollers are placed inside the cart in a way that provides perfect protection against damage. The cart is equipped with four M4 threaded holes and two 1/4" holes for mounting accessories in various combinations. It is also equipped with a central mounting port with 3/8" and 1/4" holes and two mounting ports on both ends of the rail with 3/8" holes, that allow to mount the device on two tripods.

i-705DX Kit
The Acebil i-705DX Prosumer Tripod System includes a 2 stage, lightweight aluminum tripod, the standard H705 fluid head, a middle brace and the S-9 carry case. Capable of supporting up to 5kg / 11 lbs, the i-705DX provides an optimum solution for small and high performance MiniHD camcorders.

HSTA-2 Dual Support Arm
DUAL SUPPORT is a solution designed to increase the stability of longer sliders by adding support on a tripod.

Recommended for working with heavier camera sets horizontally, vertically and at any desirable angle.

Universal mounting - Nano Clamps, supported by a plastic protector adapted to profiles shape special for our TRAPPER TRIPOD. The universal clamps is also ideal for tripods of different brands with tubular legs. The clamping range is adjustable depending on the diameter of the tripod arms to which you want to attach the DUAL SUPPORT

• To mount your slider vertically or at any angle use ANGLE adapter
• In case of tripods with 75/100mm bowl it is recommended to mount the slider using 3/8" universal mount
• In order to mount the slider on a tripod using DUAL universal support, the slider must be equipped with 3/8" hole at the end of the rail
• Telescopic design of the support (extention range of 48,5-73,5cm ) allows for wide adjustment range during mounting
• Double arm design of DUAL support prevents the tripod and the slider from any unnecassary movement in two planes, thus ensuring excellent bracing of the tripod
• Ball joints at both ends of each arm provide a wide range of smooth, fast and accurate deflection of the device
• Strong clamps allow to lock the arm of the support in any desireable position

Smart Eye T1000
SMART EYE system allows for automatic continuous tracking of the object by the camera/photocamera during the movement of the cart. Thanks to the SMART EYE manual tracking system the object that is being filmed remains all the time in the center of the frame. Perfect solution not only for panoramic images but also for traditional left-right movement photos, designed to be small in size, SMART EYE can be mounted to the slider during transport, there is no need to remove it before placing the slider into a cover, easy to mount and dismount to/from the slider, wide range of angular movement adjustment.

HDN DC Drive for Slider
Slidekamera HDN DC drive, dedicated for Slidekamera devices, is equipment specially designed for smooth shots in motion ranging from 2mm/s to 55mm/s as well as Timelapse photos. Quiet operation reduces the noises to the minimum on the recorded material. Additionaly, the device is very light, its weight does not exceeds 1kg.

Travigo Slider

• Top speed in VIDEO and LOOP modes: -55mm/s
• Minimal speed in VIDEO and LOOP modes: <2mm/s
• Cart load (horizontal track): to 4kg

Driving Level and Angle
Speed stability of our drive ensures perfect smoothnes of motion both horizontally and at a certain angle (max -30 Degree).

Power Unit
HDN drive propulsion module is designed in a way to allow simple connection / disconnection of the drive at any time, ie, the cameraman can perform alternately hand held camera movement and use the drive.

Controller Aion Alpha
controller is equipped with a 2,5mm Trigger jack to connect the shutter release cable.

Drive can be supplied from either AC adapter or three R6/AA batteries. Drive controller is equipped with 1/4" mounting hole that allows to mount it on devices with the use of VARIO ARM - Classic 8" or 11".

Controlling Programs

VIDEO Mode: VIDEO mode is designed for smooth shots from the camera or a photo camera mounted on a cart of Slidekamera device. It is possible to control the direction and speed of the shift using SPEED knob.

LOOP Mode: LOOP mode similarly to VIDEO mode, is designed for smooth shots from the camera or a photo camera mounted on a cart of Slidekamera device. In this mode, when the drive encounters too much resistance, it automatically starts to move in the opposite direction.

TIMELAPSE Mode: Timelapse shots synchronized with the movement of the cart (Motion Timelapse). In this mode, the operator sets the length of the jump and time at which the drive stops thus enabling to take a photo without a motion blur.

Thanks to the cable release that connects the controller with the photo camera, the drive controller releases the shutter in time when the cart is motionless.

• Interval values: 1-300s
• Length of jump values: 0.2 - 999mm

Slidekamera Timelapse Calculator
Application that allows you to calculate all parameters for Timelapse photography. It is aimed not only at Slidekamera customers, but also at all photo and video enthusiasts, professional and amateur alike. If you already have HDN drive you can use a mode that adjusts calculated values to your equipment. This app is optimized for Android tablet or smartphone.
