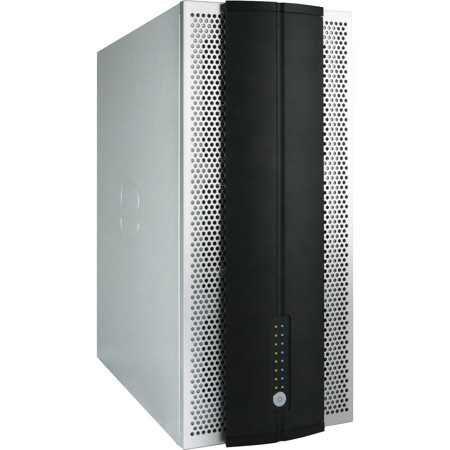

Accusys T-Share A12T3-SHARE 12-Bay 4x Thunderbolt 3/PCIe 3.0 Shareable Storage Solution with Power Supply, No HDD

SKU: ACCA12T3SH MFR: A12T3-SHARE
Earn VIP Reward Points

Key Features

  • Harness fast performance with Thunderbolt 3, reaching speeds up to 2,600 MB/s for quick data access.
  • Ensure data security with RAID levels 0, 1, 5, 6, 0+1, and JBOD for robust storage protection.
  • Expand your storage as needed with JBOD expansion, supporting up to 3 additional JBOD units.
  • Enjoy reliable backup with mirror snapshot feature for swift data recovery and system restoration.
  • Easily manage your storage via Java-based RADIGuard X GUI for intuitive system control.
  • Benefit from easy setup; this 12-bay tower RAID system supports 3.5", 2.5", and SSD drives.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$589.99

3 Year

$849.99

4 Year

$999.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Accusys T-Share A12T3-SHARE Specifications

  • System Type

    12-bay Tower RAID system

  • Interface

    4x Thunderbolt 3
    1x PCIe 3.0

  • Data Transfer Rate

    Thunderbolt 3: 40 Gb/s
    QSFP: 32 Gb/s

  • Disk Interface

    16x SAS / SATA

  • Disk Type

    3.5" / 2.5" / SSD

  • RAID Level

    0, 1, 5, 6, 0+1, JBOD

  • Cache Memory

    2G DDRlll 1866 with ECC-protected

  • JBOD Expansion

    3x JBOD

  • Performance Speeds

    Up to 2,600 MB/s can be reached with the A12T3-Share when accessing the storage device from a single host

  • T-Share Expansion

    8x Thunderbolt 3, 6x JBOD

  • RAID Controller Functions

    Online RAID Set Expansion and RAID LEVEL Migration
    Online bad block data recovery and reallocation
    Online disk scrubbing with data refresh and parity
    Disk health monitoring by S.M.A.R.T
    Array Roaming and Drive Traveling
    Mirror Snapshot for fast backup and restore
    Disk Lag Proof Technology to guarantee disk timely response
    Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation

  • Management

    Java-based RADIGuard X GUI
    Event log saving in text file for quick trobleshooting
    Event notification by email (SMTP)
    LED indicator for RAID & disk drives status in front
    400W (Single). 110V - 240V power supply
    Two 12cm x 12 cm Fan with Smart Fan Control feature

  • Dimensions (LxWxH)

    369 x 175 x 394.6mm (14.53 x 6.89 x 15.54")

  • Weight

    15.2kg (33.51 lbs)

  • UPC Code

    4713249271266

About Accusys T-Share A12T3-SHARE

When it comes to advanced, high-performance storage solutions, the T-Share A12T3-SHARE 12-Bay 4x Thunderbolt 3/PCIe 3.0 Shareable Storage Solution with Single Power Supply, No HDD stands out as a leader in the industry. Leveraging the power of the latest Thunderbolt 3 technologies, Accusys has positioned itself as a trailblazer in the realm of data storage.

The A12T3-Share, building on the success of its predecessor in the Thunderbolt SAN arena, is designed to deliver more speed, more power, and more possibilities. This 12-bay tower storage array is equipped with 4 Thunderbolt 3 host ports, offering read/write speeds that are twice as fast as Thunderbolt 2.

Users can customize the A12T3-Share to function as a Storage Area Network (SAN) storage pool when paired with SAN software. Alternatively, they can partition the storage array into several volumes, taking full advantage of the high-speed Thunderbolt ports as direct attached storage with immense capacity.

As the ultimate Thunderbolt 3 shareable storage solution, the A12T3-Share eliminates the need for Thunderbolt to fibre channel adapters or a fibre channel switch. With 4 Thunderbolt connections, it allows for 4 Thunderbolt clients to share content and achieve up to 2600 MB/s transfer speeds. This makes it an ideal solution for video editors and digital content creators, facilitating true collaborative workflows for small work groups.

The A12T3-Share is optimized for efficiency, equipped with 4 Thunderbolt 3 ports that can be expanded to 8 ports by pairing two A12T3-Share devices using the T-Share Expansion feature. This enables users to reach storage capacities of nearly 1 Petabyte (960TB) of data when connecting extra JBOD systems.

The T-Pairing feature allows users to double transfer speeds by pairing two Thunderbolt cable connections between workstations and Accusys storage devices. With four TB ports available on the A12T3-Share, two users can create dual paths for increased speeds simultaneously. All A12T3-Share devices come pre-installed with Accusys Mac Installer, which includes the driver for T-Pairing. Once the driver is installed, it automatically communicates with the A12T3-Share RAID controller for easy configuration.

In conclusion, the T-Share A12T3-SHARE 12-Bay 4x Thunderbolt 3/PCIe 3.0 Shareable Storage Solution with Single Power Supply, No HDD is a reliable, durable, and user-friendly solution for anyone seeking advanced, high-capacity storage.

Accusys T-Share A12T3-SHARE Features

  • The 1st - ever shareable Thunderbolt 3 storage solution
  • Thunderbolt interface supports DAS and SAN
  • A shareable 12-bay tower storage array for 4 users
  • Supports 3 JBOD enclosures
  • Linking two A12T3-Share storage subsystems (T-Share Expansion) will provide 8 Thunderbolt 3 ports which allows 8 hosts to access the RAID volumes of these two storage subsystems

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Harness fast performance with Thunderbolt 3, reaching speeds up to 2,600 MB/s for quick data access.
  • Ensure data security with RAID levels 0, 1, 5, 6, 0+1, and JBOD for robust storage protection.
  • Expand your storage as needed with JBOD expansion, supporting up to 3 additional JBOD units.
  • Enjoy reliable backup with mirror snapshot feature for swift data recovery and system restoration.
  • Easily manage your storage via Java-based RADIGuard X GUI for intuitive system control.
  • Benefit from easy setup; this 12-bay tower RAID system supports 3.5", 2.5", and SSD drives.

What's in the box:

  • Accusys T-Share A12T3-SHARE Storage
  • 12x Disk Tray
  • Packing List
  • Installation USB
  • 2x Screw Pack
  • AC Power Cord
  • 3x EU/AU/UK Power Converter
  • Accusys 3 Year Warranty
