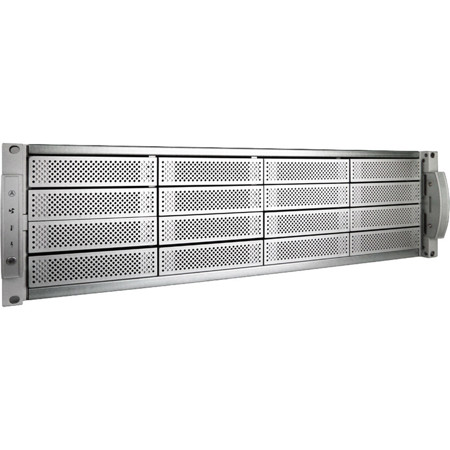

Accusys T-Share A16T3-SHARE 16-Bay 4x Thunderbolt 3/PCIe 3.0 Shareable Rackmount RAID System with Redundant Power Supply, No HDD

SKU: ACCA16T3SH MFR: A16T3-SHARE
Earn VIP Reward Points

Key Features

  • Harness fast performance with 4x Thunderbolt 3 ports on this 16-bay RAID system.
  • Ensure data security with RAID levels 0, 1, 5, 6, 0+1 & JBOD for robust protection.
  • Enjoy reliable backup and restore with mirror snapshot feature on this Accusys system.
  • Expand storage capacity easily with JBOD expansion, up to 3 additional units supported.
  • Experience easy setup and management via Java-based RADIGuard X GUI interface.
  • Benefit from remote access and monitoring with event notifications via email (SMTP).
See More Product Details
Special Order?Estimated to Ship: 08/12/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$749.99

3 Year

$1,124.99

4 Year

$1,249.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Accusys T-Share A16T3-SHARE Specifications

  • System Type

    16-bay Rackmount RAID system

  • Interface

    4x Thunderbolt 3
    1x PCIe 3.0

  • Data Transfer Rate

    Thunderbolt 3: 40 Gb/s
    QSFP: 32 Gb/s

  • Disk Interface

    16x SAS / SATA

  • Disk Type

    3.5" / 2.5" / SSD

  • RAID Level

    0, 1, 5, 6, 0+1, JBOD

  • Cache Memory

    2G DDRlll 1866 with ECC-protected

  • JBOD Expansion

    3x JBOD

  • T-Share Expansion

    8x Thunderbolt 3, 6x JBOD

  • Power Supply

    Dual 400W PSU (Redundant)

  • Fans

    12x12cm redundant cooling fans

  • RAID Controller Functions

    Online RAID Set Expansion and RAID LEVEL Migration
    Online bad block data recovery and reallocation
    Online disk scrubbing with data refresh and parity
    Disk health monitoring by S.M.A.R.T
    Array Roaming and Drive Traveling
    Mirror Snapshot for fast backup and restore
    Disk Lag Proof Technology to guarantee disk timely response
    Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation

  • Management

    Java-based RADIGuard X GUI
    Event log saving in text file for quick trobleshooting
    Event notification by email (SMTP)
    LED indicator for RAID & disk drives status in front
    400W (Redundant). 110V - 240V power supply
    Two 12cm x 12 cm Fan with Smart Fan Control feature

  • Dimensions (LxWxH)

    567 x 447 x 131mm (22.32 x 17.60 x 5.16")

  • Weight

    19.4kg (42.77 lbs)

  • UPC Code

    4713249271617

About Accusys T-Share A16T3-SHARE

After harnessing the power of cutting-edge Thunderbolt 3 technology, the T-Share A16T3-SHARE 16-Bay 4x Thunderbolt 3/PCIe 3.0 Shareable Rackmount RAID System with Redundant Power Supply, No HDD offers scalable storage capacity, unmatched speed performance, and the unique ability to share data across multiple workstations. This high-performance, reliable RAID system is designed to meet the demands of data-intensive environments, providing robust and durable solutions for large-scale data storage and sharing.

Experience the extraordinary speed of up to 2600MB/s in a single unit, thanks to the advanced Thunderbolt 3 technology. The A16T3-SHARE is not only fast but also versatile, boasting full compatibility with both Mac and Windows operating systems. Equipped with 1 PCIe and 4 Thunderbolt 3 ports, it allows up to five users to share and access content in real-time, fostering concurrent and collaborative work to ensure projects are delivered efficiently and within budget.

The A16T3-SHARE goes beyond the standard, offering the ability to expand to 8 ports by pairing two A16T3-SHARE devices using the T-Share Expansion feature. This expansion capability enables users to achieve storage capacities exceeding 1 Petabyte (1280TB) of data when connecting additional JBOD systems.

The T-Share A16T3-SHARE also features the innovative T-Pairing technology, which doubles the transfer bandwidth by distributing data across two Thunderbolt cable connections between workstations and the Accusys T-Share storage. This feature comes pre-installed in the Accusys driver at no extra cost, further enhancing the system's performance and value.

In the event of a power outage, the redundant power supply ensures that your data remains safe and the system stays operational, making the T-Share A16T3-SHARE a reliable choice for professional environments where data security and quick access are paramount.

Accusys T-Share A16T3-SHARE Features

  • High-capacity 16-Bay Thunderbolt 3/PCIe 3.0 shareable rackmount RAID system for large-scale data storage and sharing
  • Advanced Thunderbolt 3 technology offering extraordinary speed of up to 2600MB/s
  • Full compatibility with both Mac and Windows operating systems for versatile usage
  • Expandable to 8 ports with the T-Share Expansion feature for storage capacities over 1 Petabyte (1280TB)
  • T-Pairing technology for double transfer bandwidth, pre-installed in the Accusys driver
  • Redundant power supply for reliable operation even in the event of a power outage

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Harness fast performance with 4x Thunderbolt 3 ports on this 16-bay RAID system.
  • Ensure data security with RAID levels 0, 1, 5, 6, 0+1 & JBOD for robust protection.
  • Enjoy reliable backup and restore with mirror snapshot feature on this Accusys system.
  • Expand storage capacity easily with JBOD expansion, up to 3 additional units supported.
  • Experience easy setup and management via Java-based RADIGuard X GUI interface.
  • Benefit from remote access and monitoring with event notifications via email (SMTP).

What's in the box:

  • Accusys T-Share A16T3-SHARE Storage
  • 16x Disk Tray
  • 2x Rail Extender
  • Packing List
  • Installation USB
  • 2x AC Power Cord
  • 2x Rail Set
  • 3x Screw Pack for Disk Tray
  • 6x Bolts Pack for Rack
  • 6x EU/AU/UK to US Power Converter
  • Accusys 3 Year Warranty
