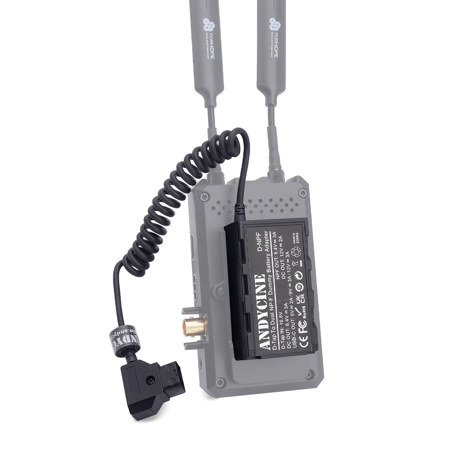

AndyCine D-Tap to Dual-Sided Sony L-Series/NP-F Dummy Battery Adapter

Power your two L-series accessories, such as a monitor and a wireless transmitter from a professional D-Tap battery source with this D-Tap to Dual-Sided Sony L-Series/NP-F Dummy Battery from ANDYCINE. The L-series plate features plates on both sides, so you can mount two accessories to power simultaneously.

A USB-C PD output with 5, 9, and 12 VDC power at 36W is also integrated on the dummy battery end, which will allow you to power or charge select devices compatible with USB-C. It also features two DC output 8.4V and 12V on the side to power additional accessories such as a camera or gear.

The D-Tap connector plugs into a separately available brick battery or other D-Tap power sources, and it provides regulated 8 VDC, 6A output at 48W to the two L-series plates. The coiled cable extends from 12 to 40" in length.

Revolutionary D-TAP to Double-sided NP-F Series Dummy Battery Adapter
Provides power for wireless transmission and field monitor simultaneously, and fixes them in place. Five outputs, convenient for power supply and space saving.

With one D tap Inputs will divide your power into 5 channels power outputs: 1x Type C Output (Max 36W),1x DC 12V,1x DC 8.4V(DC Barrel 5.5 2.1mm),2xNP-F Slot pins

Multi-Protection- Reliable and Safe
• Overcurrent
• Temperature
• Short circuit
• Over Voltage
• Overpower
• Recover

Type C Output Port
(Max 36W output) Support USB-C powered devices max output 36W

Dual DC Output
DC 8.4V and DC 12V Output (Barrel 5.5/2.1mm)

• DC 8.4V will power output the most cameras.
• DC 12V will compatible for video monitor, video light

NP-F Slot - With Dual NP-F Slot
Compatible with Dual pin can power the two devices with the NPF-Slots.

Wide Application
Wide applications on wireless transmitters, camera video monitors, led video lights.
